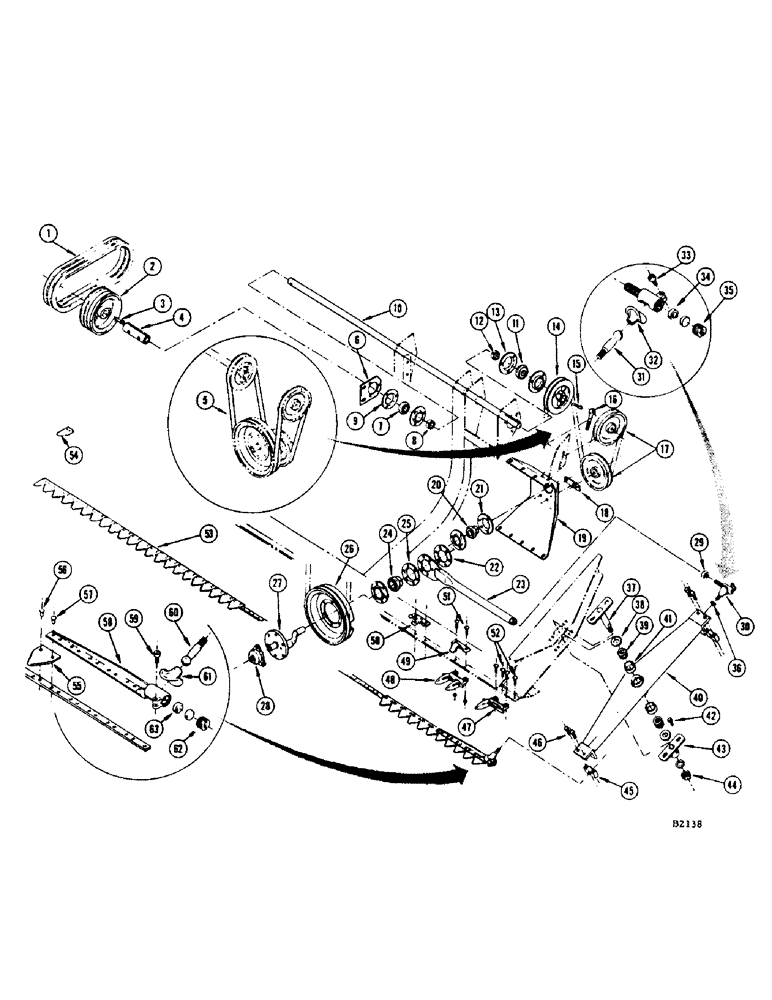

Запчасти Case IH 1150 (088) - SICKLE AND SICKLE DRIVE (CONTD), BEFORE 8266001 (58) - ATTACHMENTS/HEADERS

40

FH316919

SWAYBAR - with cups (#8262501 and after) Replaces FH292995 when stocks are exhausted

1шт.

41

FHO50104

CUP

- bearing, swaybar

2шт.

219-58

FITTING

- grease 1/4"-28 strt., swaybar

1шт.

FH292995

SWAYBAR - with cups (Before #8262501) Replaced by FH316919 when stocks are exhausted)

1шт.

FITTING - grease 1/4"-28 strt. 90 degrees (219-58)

1шт.

42

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

4шт.

NUT - 1/2" N.F. hex. (25-118) L.W. (92-8)

4шт.

WASHER - 1/2" flat (95-8)

4шт.

43

FH123224

PLATE - reinforcement, swaybar

1шт.

SCREW - 1/2" x 3/4" N.C. sq. hd. cup pt. (85-812)

1шт.

44

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. slotted hex., for ref. 37 pin

1шт.

PIN - cotter 5/32" x 1-1/2" (132-73)

1шт.

45

FH129213

BLOCK - swaybar, sickle end

2шт.

46

FHO26138

BOLT

BOLT - (1/2"-20 x 1-3/4") Swaybar block

4шт.

47

FHO49247

GUARD

- half, sickle L.H. end

1шт.

48

FHO49239

GUARD

- sickle (Double) Forged (24-12 ft., 28-14 ft.)

1шт.

49

FH142984

HOLDER

CLIP - high clearance hold down

1шт.

50

FH241216

CLIP

- sickle hold down (11-12 ft., 13-14 ft.)

1шт.

51

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" rhd. sq. nk., hold down clips (23-12 ft., 27-14 ft.)

1шт.

NUT - 7/16" N.C. hex. (129-104) (23-12 ft., 27-14 ft.)

1шт.

52

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, , Sickle guards (27-12 ft., 31-14 ft.) Short NK, 7/16"-14 x 1 1/4", G5

1шт.

NUT - 7/16" N.C. hex. (129-104) (27-12 ft., 31-14 ft.)

1шт.

53

TF94716

SICKLE - 12 ft. (Replaced by TF94840 when exhausted)

1шт.

TF94717

SICKLE - 14 ft. (Use TF94841 when stocks are exhausted)

1шт.

54

TF59129

CATALOG

SECTION - half, smooth

1шт.

55

TF59106

SECTION - sickle (Top serrated chrome plated) (49-12 ft., 57-14 ft.)

1шт.

56

T13489

RIVET

- #5-1/2" x 9/16" O.H. pltd., sickle sections (89-12 ft., 105-14 ft.)

1шт.

57

T13492

RIVET

- #5-1/2" x 7/8" O.H. pltd., sickle head

11шт.

58

TF94714

HEAD - sickle

1шт.

59

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" soc. hd. cap, sickle head

1шт.

LOCKWASHER - 3/8" (92-6)

1шт.

60

FH720441

STUD - sickle head

1шт.

61

FH720300

X

CAP - dust, sickle head

1шт.

62

FH264143

PLUG

- sickle head

1шт.

63

FH720458

BEARING

- sickle head

2шт.

FITTING - grease 1/4"-28 strt. (219-8)

1шт.

FITTING - grease 1/4"-28 strt. 90 degrees (219-57)

1шт.
