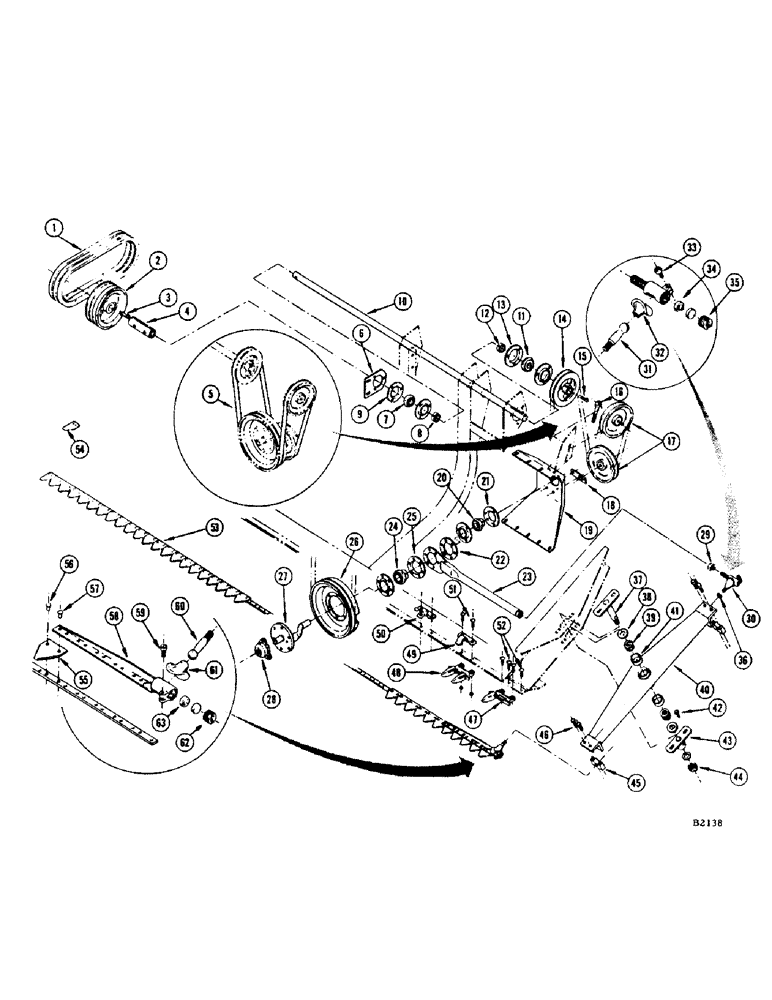

Запчасти Case IH 1150 (086) - SICKLE AND SICKLE DRIVE, BEFORE 8266001 (58) - ATTACHMENTS/HEADERS

1

FH272633

"V" BELT - (Matched set of 3 - FHO57141) Drives sickle power shaft

1шт.

2

FH272617

SHEAVE - triple groove, drives power shaft

1шт.

3

FHO61739

KEY

- (1/4" x 1/4" x 2-1/4" tapered)

1шт.

4

FH287391

TUBE - splice

1шт.

5

FHO57299

BELT - sickle drive (Replaced by FHO57711 when stocks are exhausted)

1шт.

FHO57711

"V" BELT - sickle drive (Replaces FHO57299 when stocks are exhausted)

1шт.

6

FH288324

BRACKET

1шт.

7

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - power shaft

1шт.

8

O697CB

X

COLLAR

1шт.

9

O650CB

X

FLANGE - for 2419CHA bearing

2шт.

10

FH287433

SHAFT - power, sickle drive

1шт.

11

F86298

BEARING ASSY

BEARING - power shaft

1шт.

12

O885CB

COLLAR

1шт.

13

T17277

FLANGE

- for F86298 bearing

2шт.

14

FH287441

SHEAVE - (7-1/2" O.D.) Driven, drives sickle pitman

1шт.

15

FHO61739

KEY

- (1/4" x 1/4" x 2-1/4" tapered)

1шт.

16

FH291955

SPECIAL BOLT

DRAWBOLT - tightener sheave

1шт.

17

FHO53538

PULLEY

SHEAVE - tightener

2шт.

BOLT - 1/2" x 2" N.C. hex. (13-832) Nut (24-108) L.W. (92-8)

1шт.

BOLT - 1/2" x 3" N.C. hex. (13-848) Nut (25-108) L.W. (92-8)

1шт.

WASHER - 1/2" flat (95-8)

4шт.

18

FH287649

BRACKET - tightener

1шт.

19

FH287557

BRACKET - pitman crank

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

10шт.

NUT - 3/8" N.C. (25-106)

4шт.

20

1443CKA

BALL BEARING

BEARING - rear pitman crank

1шт.

O3203CK

COLLAR - for 1443CKA bearing

1шт.

21

O650CB

X

FLANGE - for 1443CKA bearing

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) L.W. (92-6)

3шт.

22

FH287821

STABILIZER - pitman

1шт.

23

FH287615

PITMAN - sickle (12 ft. header)

1шт.

FH287623

PITMAN - sickle (14 ft. header)

1шт.

24

FH710038

BEARING

- pitman crank , front

1шт.

TD4510

COLLAR - for FH710038 bearing

1шт.

25

FH264036

FLANGE - for FH710038 bearing

2шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

6шт.

26

FH287664

SHEAVE - pitman crank

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

6шт.

27

FH261727

CRANK - pitman

1шт.

28

FH265645

BEARING - pitman crank, with flange

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. (13-720) Nut (25-107)

3шт.

29

FHO74526

NUT - 7/8"-18 hex. jam, pitman head adjustment

1шт.

30

FH263665

HEAD - pitman

1шт.

FITTING - grease 1/4"-28 strt. (219-8)

1шт.

FITTING - grease 1/4"-28 strt. 90 degrees (219-57)

1шт.

31

FH720441

STUD - pitman head

1шт.

32

FH720300

X

CAP - dust, pitman head

1шт.

33

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. hex. soc. hd. cap

1шт.

LOCKWASHER - 3/8" (92-6)

1шт.

34

FH720458

BEARING

- pitman head

2шт.

35

FH264143

PLUG

- pitman head

1шт.

36

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. slotted hex.

2шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

2шт.

37

FH123216

PIN

- swaybar

1шт.

38

FH263764

WASHER

- (1-31/32" O.D. x 1.01 I.D. #11 ga.) Swaybar pin

2шт.

39

FHO50112

BEARING

CONE - bearing, swaybar

2шт.
