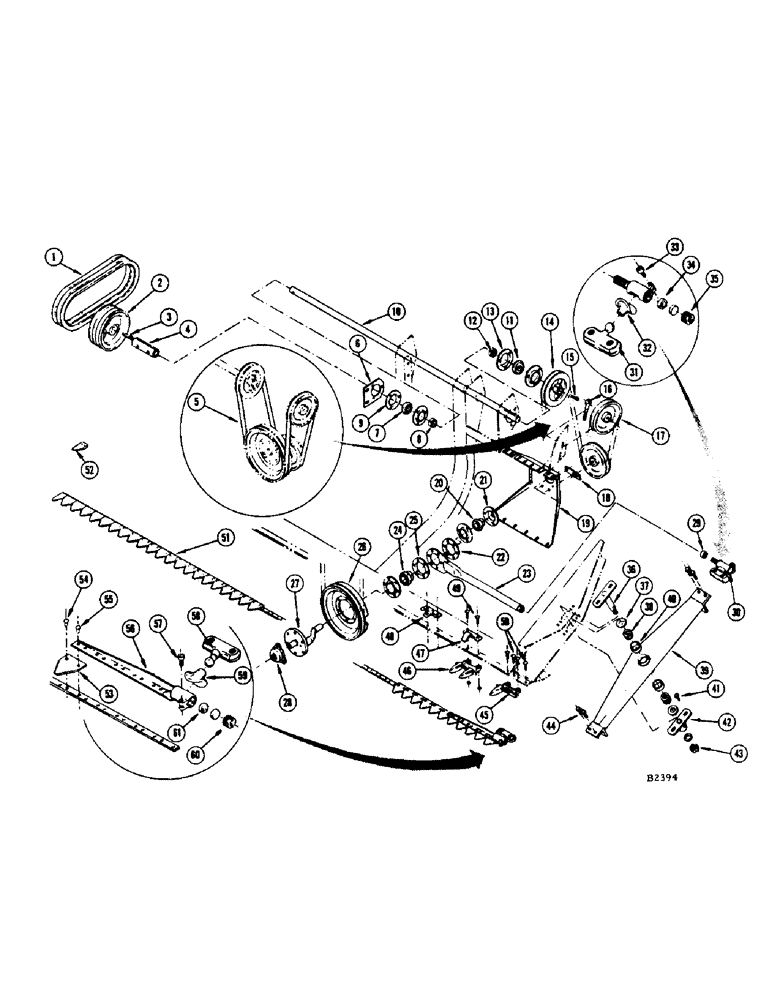

Запчасти Case IH 1150 (084) - SICKLE AND SICKLE DRIVE (CONTD), 8266001 AND AFTER (58) - ATTACHMENTS/HEADERS

41

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex., nut, L.W. and fl. wshr.

4шт.

42

FH123224

PLATE - reinforcement, swaybar

1шт.

85-812

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - 1/2" x 3/4" N.C. sq. hd. cup pt. set

1шт.

43

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. slotted hex.

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

44

FHO26138

BOLT

BOLT - swaybar block

4шт.

45

FHO49247

GUARD

- half, L.H. end sickle

1шт.

46

FHO49239

GUARD

- double (24-12 ft., 28-14 ft., 32-16 ft.)

1шт.

47

FH142984

HOLDER

CLIP - hold down, high clearance

1шт.

48

FH241216

CLIP

- hold down (14-12 ft., 17-14 ft., 20-16 ft.)

1шт.

49

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" rhd. sq. nk. (35-12 ft., 42-14 ft., 49-16')

1шт.

129-104

NUT,7/16"-14, G5

(35-12 ft., 42-14 ft., 49-16 ft.) 7/16"-14, G5

1шт.

50

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, (16-12 ft., 17-14 ft., 18-16') Short NK, 7/16"-14 x 1 1/4", G5

1шт.

129-104

NUT,7/16"-14, G5

(16-12 ft., 17-14 ft., 18-16 ft.) 7/16"-14, G5

1шт.

51

TF94840

SICKLE - 12 ft. header (Top serrated sections) (Replaces TF94716 when exhausted)

1шт.

51

TF94841

SICKLE - 14 ft. header (Top serrated sections) (Replaces TF94717 when exhausted)

1шт.

51

TF94842

SICKLE - 16 ft. header (Top serrated sections)

1шт.

52

TF59129

CATALOG

SECTION - half, smooth

1шт.

53

TF59106

SECTION - top serrated chrome (49-12', 57-14', 65-16')

1шт.

54

T13489

RIVET

- 5-1/2" x 9/16" O.H. pltd. (89-12 ft., 105-14 ft., 121-16 ft.)

1шт.

55

T13492

RIVET

- #5-1/2 x 7/8" O.H. pltd.

11шт.

56

TF94847

HEAD - sickle

1шт.

57

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. socket hd. cap and L.W.

1шт.

58

FH338228

BALL

STUD BLOCK

1шт.

59

FH720300

X

CAP - dust

1шт.

60

FH264143

PLUG

1шт.

61

FH720458

BEARING

2шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4-28 straight

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4-28 x 90 degrees

1шт.

TF94844

SICKLE - 12 ft. header (Smooth sections) Special

1шт.

TF94845

SICKLE - 14 ft. header (Smooth sections) Special

1шт.

TF94846

SICKLE - 16 ft. header (Smooth sections) Special

1шт.

T13009

KNIFE SECTION

SECTION - sickle, smooth (49-12 ft., 57-14 ft., 65-16 ft.) Also includes ref. 52, 54, 55 and 56.

1шт.
