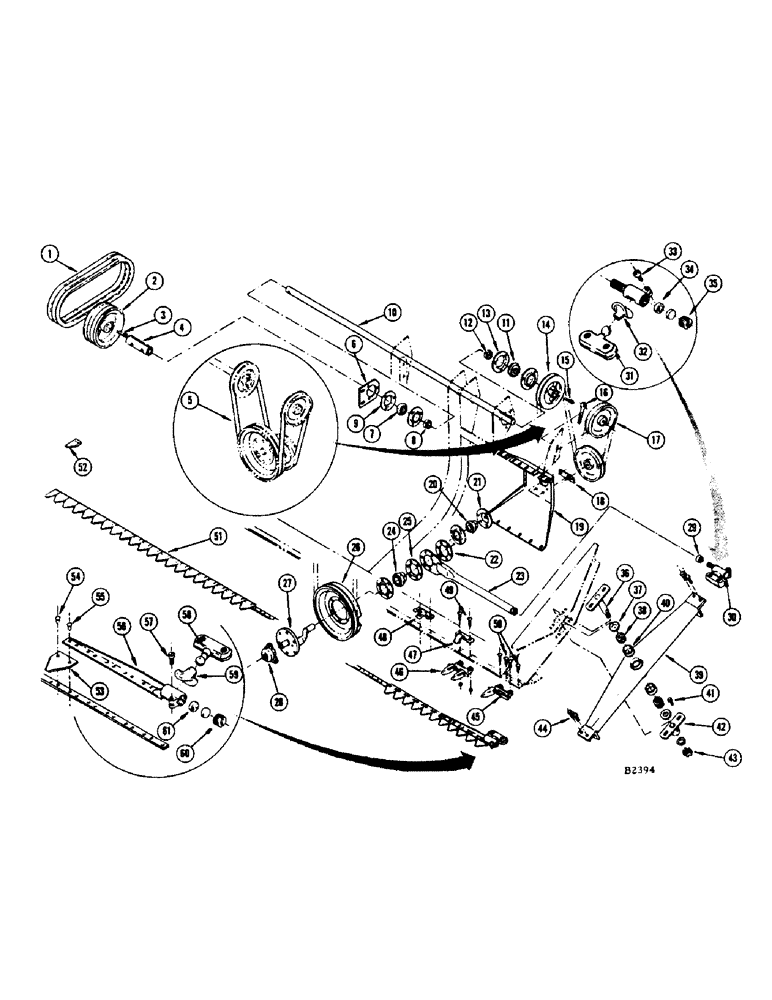

Запчасти Case IH 1150 (082) - SICKLE AND SICKLE DRIVE, 8266001 AND AFTER (58) - ATTACHMENTS/HEADERS

1

FH272633

BELT - "V", drive (Matched set of 3-FHO57141)

1шт.

2

FH272617

SHEAVE - triple groove, drives power shaft

1шт.

3

FHO61739

KEY

1шт.

4

FH287391

TUBE - splice

1шт.

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

Nut and L.W. Hex, 7/16"-14 x 2 1/4", G5

2шт.

5

FHO57711

BELT - "V", pitman drive

1шт.

6

FH288324

BRACKET

1шт.

7

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - power shaft

1шт.

8

O697CB

X

COLLAR

1шт.

9

O650CB

X

FLANGE - bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

10

FH287433

SHAFT - power, sickle driven

1шт.

11

F86298

BEARING ASSY

BEARING - power shaft

1шт.

12

O885CB

COLLAR

1шт.

13

T17277

FLANGE

- bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

14

FH338376

SHEAVE - driven, drives sickle pitman (8.20 O.D.)

1шт.

15

FHO61739

KEY

1шт.

16

FH291955

SPECIAL BOLT

DRAWBOLT - tightener sheave

1шт.

17

FHO53538

PULLEY

SHEAVE - tightener

2шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Nut and L.W. Hex, 1/2"-13 x 2", G5

1шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex., nut and L.W.

1шт.

95-8

WASHER,1/2"

flat 1/2"

4шт.

18

FH287649

BRACKET - tightener

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

2шт.

19

FH338418

BRACKET - pitman crank

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. and fl. wshr. Hex, 3/8"-16 x 1", G5, Full Thd

13шт.

20

1443CKA

BALL BEARING

BEARING - rear pitman crank

1шт.

O3203CK

COLLAR

1шт.

21

O650CB

X

FLANGE - bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

3шт.

22

FH287821

STABILIZER - pitman

1шт.

23

FH287615

PITMAN - sickle (12 ft. header)

1шт.

23

FH287623

PITMAN - sickle (14 ft. header)

1шт.

23

FH287631

PITMAN - sickle (16 ft. header)

1шт.

24

FH710038

BEARING

- front pitman crank

1шт.

TD4510

COLLAR

1шт.

25

FH264036

FLANGE - bearing

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

26

FH287664

SHEAVE - pitman crank

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

27

FH261727

CRANK - pitman

1шт.

28

FH265645

BEARING - pitman crank, with flange

1шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Nut and L.W. Hex, 7/16"-14 x 1 1/4", G5, Full Thd

3шт.

29

FHO74526

NUT - 7/8"-18 hex. jam, pitman head adjustment

1шт.

30

FH373605

X

HEAD - pitman (Replaced by FH383588 when stocks are exh.)

1шт.

30

FH383588

HEAD

- pitman (Replaces FH373605 when stocks are exh.)

1шт.

31

FH338228

BALL

STUD BLOCK

1шт.

32

FH720300

X

CAP - dust

1шт.

33

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. hex. socket hd. cap and L.W.

1шт.

34

FH720458

BEARING

2шт.

35

FH264143

PLUG

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4"-28 straight

1шт.

36

FH123216

PIN

- swaybar

1шт.

37

FH263764

WASHER

- swaybar pin

2шт.

38

FHO50112

BEARING

CONE - bearing, swaybar

2шт.

39

FH316919

SWAYBAR

1шт.

40

FHO50104

CUP

- bearing

2шт.
