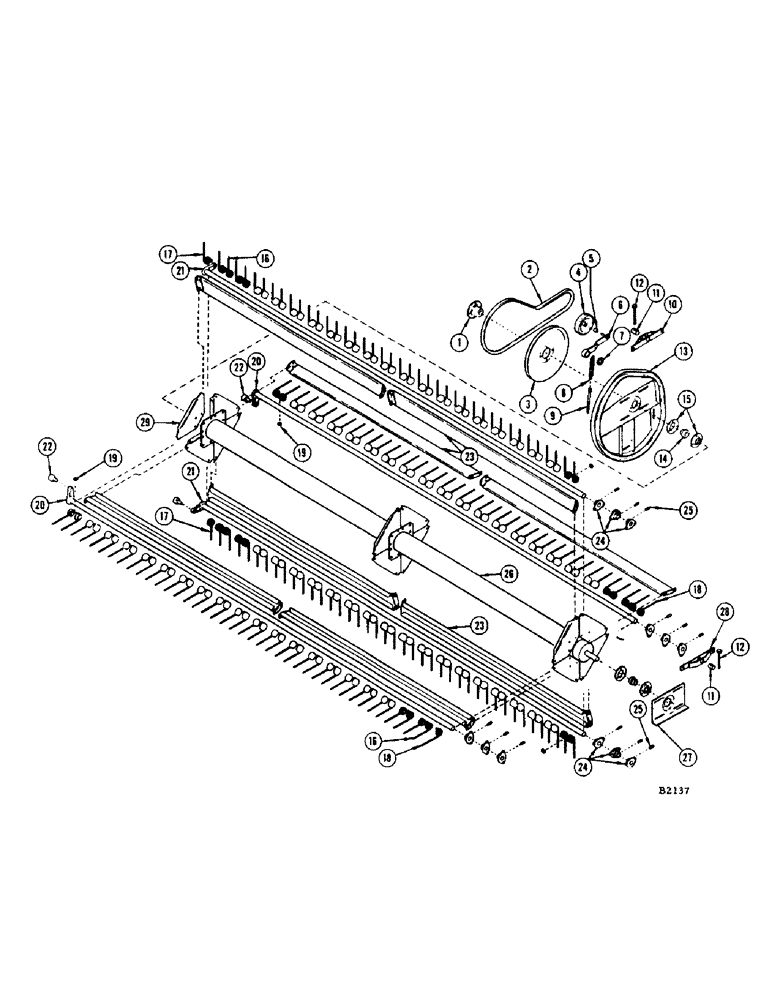

Запчасти Case IH 1150 (080) - PICKUP REEL AND DRIVE, BEFORE 8266001 (58) - ATTACHMENTS/HEADERS

1

FH280313

HUB - reel (Replaces FH261016 when stocks are exhausted)

1шт.

BOLT - 3/8" x 2-1/4" N.C. soc. hd. (61-636) Nut (129-103)

2шт.

FH261016

HUB - reel (Replaced by FH280313 when stocks are exhausted)

1шт.

2

FHO57471

"V" BELT - reel drive (#8262501 and after)

1шт.

2

FHO55574

V-BELT

"V" BELT, Reel Drive, Before Serial No. 8262501

1шт.

3

FH312934

SHEAVE

- driven (#8262501 and after)

1шт.

BOLT - 3/8" x 1" N.C. hex. (113-207) Nut (129-103) L.W. (192-21)

4шт.

FH234781

SHEAVE - driven (Before #8262501)

1шт.

4

FHO53561

IDLER - flat

1шт.

5

FH158741

SPACER - idler

1шт.

6

FH315747

ARM - tightener (#8262501 and after)

1шт.

FITTING - grease 1/4"-28 strt. (219-20)

2шт.

NUT - 1/2" N.C. hex. (25-108) L.W. (92-8)

1шт.

PIN - cotter 1/8" x 1-1/2" (132-52)

1шт.

6

FH289850

ARM - tightener (Before #8262501)

1шт.

7

FH740068

BUSHING - machine 1-1/4" x 18 ga.

1шт.

8

FHO58123

SPRING - tightener

1шт.

9

FH263350

BOLT - draw, tension spring

1шт.

NUT - 3/8" N.C. (129-103)

2шт.

10

FH315804

BRACKET - adjusting, R.H. (#8262501 and after)

1шт.

11

FH315689

TRUNNION - adjusting bracket (#8262501 and after)

2шт.

12

FH701458

BOLT - full thread (Replaced by FH702431 when exhausted)

2шт.

12

FH702431

BOLT - full thread (Replaces FH701458 when stocks are exh.)

2шт.

13

FH288381

TRACK - cam

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) Nut (129-103)

7шт.

14

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - reel shaft

2шт.

O697CB

X

COLLAR - for 2419CHA bearing

2шт.

15

O650CB

X

FLANGE - for 2419CHA bearing

4шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) L.W. (192-21)

3шт.

NUT - 3/8" N.C. (129-103)

6шт.

16

FH750075

TINE

- double (12 ft.-68, 14 ft.-80)

1шт.

BOLT - 5/16" x 2" N.C. hex. (13-532) Nut (25-105) (12 ft.-68, 14 ft.-80)

1шт.

17

FH750117

TINE - single, right

2шт.

18

FH750083

TINE - single, left

2шт.

19

FH261024

CLIP

- tine (12 ft.-68, 14 ft.-80)

1шт.

20

FH288027

TUBE - tine, 12 ft. header

2шт.

20

FH288043

TUBE - tine, 14 ft. header

2шт.

21

FH289959

TUBE - tine, 12 ft. header

2шт.

21

FH289967

TUBE - tine, 14 ft. header

2шт.

22

FH710426

BEARING - cam follower

4шт.

FITTING - grease 1/4"-28 strt. (219-20)

4шт.

NUT - 5/8" N.F. jam (25-1510) L.W. (92-10)

4шт.

23

FH289991

BAT - reel, 12 ft. header

8шт.

23

FH291005

BAT - reel, 14 ft. header

8шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) Nut (25-105) L.W. (92-5)

24шт.

24

FH308171

BEARING - flange (Replaces FH710418 when stocks are exhausted)

12шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) Nut (25-106) L.W. (92-6)

24шт.

24

FH710418

BEARING - flange (Replaced by FH308171 when stocks are exhausted)

12шт.

25

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

12шт.

26

FH289884

SHAFT - reel, 12 ft. header

1шт.

FH289892

SHAFT - reel, 14 ft. header

1шт.

27

FH289843

MOUNTING - reel

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) Nut (129-103)

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-319) Nut (129-103)

2шт.

LOCKWASHER - 3/8" (192-21) Fl. wshr. (195-521)

4шт.

28

FH315671

BRACKET - adjusting, L.H. (#8262501 and after)

1шт.

29

FH291047

ARM - reel

12шт.

BOLT - 5/16" x 1/2" N.C. hex. (13-58) Nut (25-105) L.W. (92-5)

12шт.
