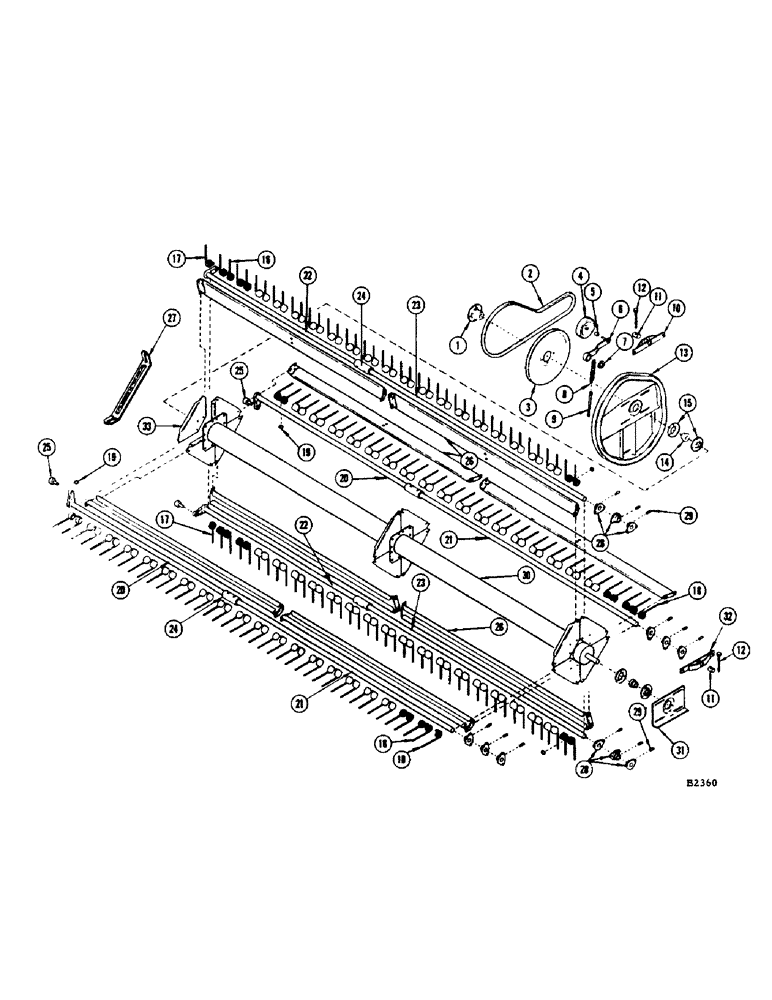

Запчасти Case IH 1150 (078) - PICKUP REEL AND DRIVE, 8266001 AND AFTER (58) - ATTACHMENTS/HEADERS

1

FH280313

HUB - reel

1шт.

2

FHO57471

"V" BELT - reel drive

1шт.

3

FH312934

SHEAVE

- driven

1шт.

4

FHO53561

IDLER - flat

1шт.

5

FH158741

SPACER - idler

1шт.

6

FH315747

ARM - tightener

1шт.

7

FH740068

BUSHING - 1-1/4" x 18 ga. mach.

1шт.

8

FHO58123

SPRING - tightener

1шт.

9

FH263350

BOLT - draw, tension spring

1шт.

10

FH315804

BRACKET - R.H. adj. (Before #8309801)

1шт.

10

FH315671

BRACKET - R.H. adj. (#8309801 and after)

1шт.

11

FH315689

TRUNNION - adjusting bracket

2шт.

12

FH701458

BOLT - 3/8" x 4" N.C. hex. F.T. (Replaced by FH702431 when stocks are exhausted)

2шт.

FH702431

BOLT - 3/8" x 4" N.C. hex. F.T. (Replaces FH701458 when stocks are exhausted)

2шт.

13

FH288381

TRACK - cam

1шт.

14

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - reel shaft

2шт.

O697CB

X

COLLAR

1шт.

15

O650CB

X

FLANGE - bearing

4шт.

16

FH750075

TINE

- double (68-12 ft., 80-14 ft., 92-16 ft.)

1шт.

17

FH750117

TINE - single, R.H.

2шт.

18

FH750083

TINE - single, L.H.

2шт.

19

FH261024

CLIP

- tine (68-12 ft., 80-14 ft., 92-16 ft.)

1шт.

20

FH338301

TUBE - tine, R.H. (12 ft. header)

2шт.

20

FH338293

TUBE - tine, R.H. (14 ft. header)

2шт.

20

FH338285

TUBE - tine, R.H. (16 ft. header)

2шт.

21

FH388061

TUBE - tine, L.H. (12 ft. header)

2шт.

21

FH338020

TUBE - tine, L.H. (14 ft. header)

2шт.

21

FH337980

TUBE - tine, L.H. (16 ft. header)

2шт.

22

FH338277

TUBE - tine, R.H. (12 ft. header)

2шт.

22

FH338269

TUBE - tine, R.H. (14 ft. header)

2шт.

22

FH338251

TUBE - tine, R.H. (16 ft. header)

2шт.

23

FH338087

TUBE - tine, L.H. (12 ft. header)

2шт.

23

FH338038

TUBE - tine, L.H. (14 ft. header)

2шт.

23

FH338004

TUBE - tine, L.H. (16 ft. header)

2шт.

24

FH338657

SPLICE - tine tube

4шт.

25

FH710426

BEARING - cam follower

4шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam and L.W.

4шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4"-28

4шт.

26

FH289991

BAT - reel (12 ft. header)

8шт.

26

FH291005

BAT - reel (14 ft. header)

8шт.

26

FH413286

BAT - reel (16 ft. header)

8шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

24шт.

27

FH413336

BRACE - (14 ft. and 16 ft. headers only)

8шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

16шт.

28

FH308171

BEARING - flange

12шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

24шт.

29

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

12шт.

30

FH289884

SHAFT - reel, 12 ft. header

1шт.

30

FH289892

SHAFT - reel, 14 ft. header

1шт.

30

FH413278

SHAFT - reel, 16 ft. header

1шт.

31

FH289843

MOUNTING - reel, L.H.

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

2шт.

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1 1/4", G2

2шт.

195-521

WASHER,5/16", SAE

- 3/8" flat

8шт.

32

FH315671

BRACKET - L.H. adjusting

1шт.

33

FH291047

ARM - reel

12шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Nut and L.W. Hex, 5/16"-18 x 1/2", G5, Full Thd

12шт.
