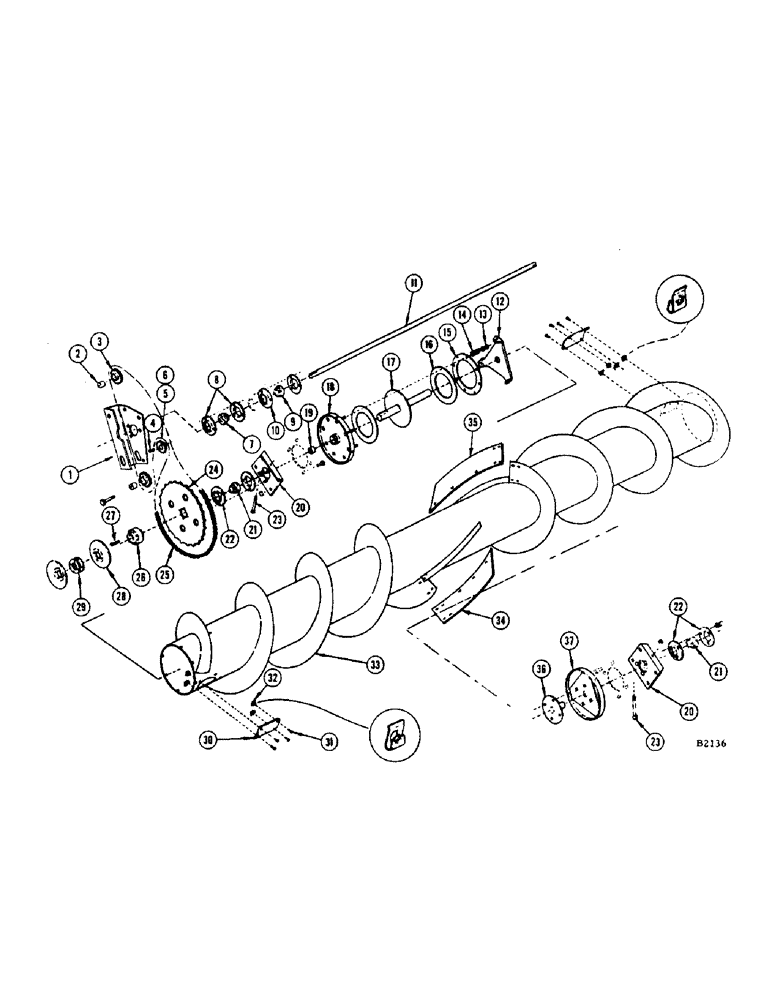

Запчасти Case IH 1150 (076) - HEADER AUGER DRIVE (CONTD), BEFORE 8262501 (58) - ATTACHMENTS/HEADERS

30

F9225

PLATE - cover, auger

2шт.

31

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 type A x 5/8" Gimlet Point, pan head tapping

8шт.

32

445406

SPRING NUT,Tinn, 1/4"-14

- speed, cover plate screws

8шт.

33

FH291807

AUGER - 12 ft. header

1шт.

33

FH291815

AUGER - 14 ft. header

1шт.

34

FHO27706

EXTENSION - flight, right

1шт.

34

FH280271

EXTENSION - flight, right (Special - tall crop)

1шт.

35

FHO27698

EXTENSION - flight, left

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (13-520) Nut (25-105) and L.W. (92-5) Fl. wshr. (95-5)

6шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (13-524) Nut (25-105) and L.W. (92-5) Fl. wshr. (95-5)

1шт.

35

FH280263

EXTENSION - flight, left (Special - tall crop)

1шт.

36

FH287276

PLATE - L.H. with shaft

1шт.

NUT - 3/8" N.C. (25-106) L.W. (92-6)

4шт.

37

FH287227

BULKHEAD - L.H.

1шт.

SCREW - 3/8" x 3/4" N.F. Phil. rhd. mach. (174-208) and nut (25-116) L.W. (92-6)

6шт.
