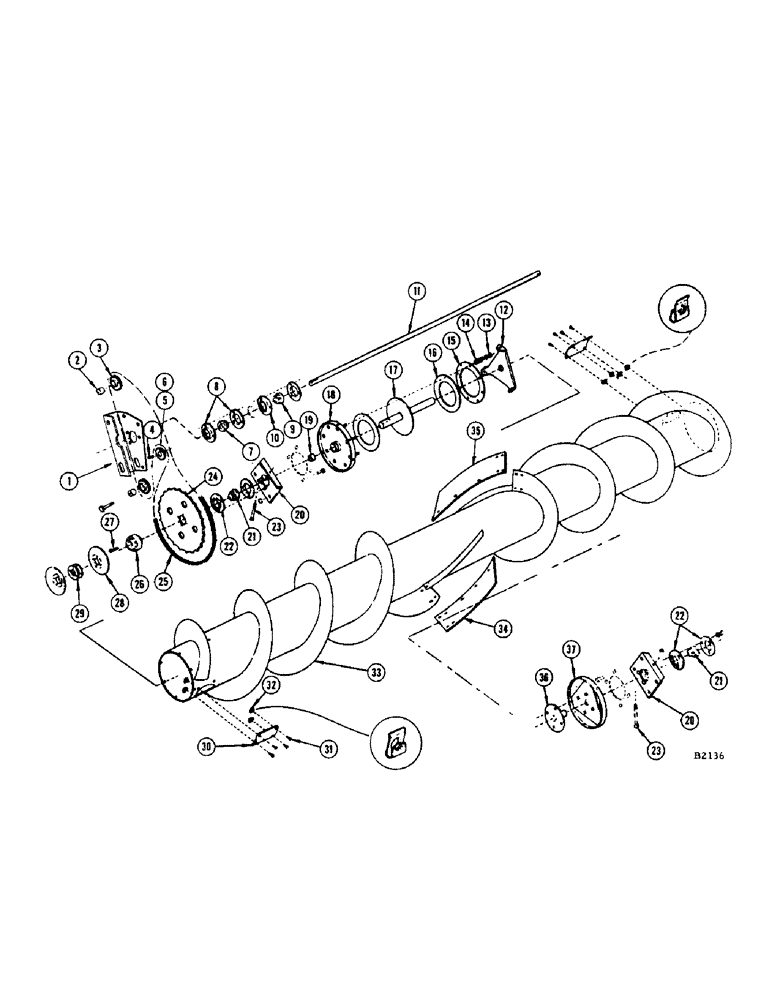

Запчасти Case IH 1150 (074) - HEADER AUGER AND DRIVE, BEFORE 8262501 (58) - ATTACHMENTS/HEADERS

1

FH316828

MOUNTING - bearing

1шт.

2

FH159459

SPACER - chain idler

2шт.

3

FHO47142

X

IDLER - chain

2шт.

BOLT - 1/2" x 3" N.C. hex. (13-848) Nut (25-108) L.W. (92-8)

2шт.

WASHER - 1/2" flat (95-8)

6шт.

4

FHO61424

KEY

- gib, for drive sprocket

1шт.

5

FHO85886

SPROCKET - auger drive (15T) Standard

1шт.

5

FHO86033

SPROCKET - auger drive (13T) Optional

1шт.

6

FHO86132

SPROCKET - auger drive (17T) Optional

1шт.

7

F51085

BEARING

- power shaft, R.H. end

1шт.

O697CB

X

COLLAR

1шт.

8

O650CB

X

FLANGE - for F51085 bearing

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) and L.W. (92-6)

3шт.

9

F86298

BEARING ASSY

BEARING - power shaft, L.H. end

1шт.

O885CB

COLLAR

1шт.

10

T17277

FLANGE

- for F86298 bearing

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) Nut (25-106) and L.W. (92-6)

3шт.

11

FH287300

SHAFT - power, right - 12 ft.

1шт.

11

FH287318

SHAFT - power, right - 14 ft.

1шт.

12

FH156018

BULKHEAD - center

1шт.

SCREW - 3/8" x 3/4" N.F. Phil. rhd. mach. (174-208) and nut (25-116) L.W. (92-6)

3шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16"-18 elastic stop, clutch spring

8шт.

WASHER - 5/16" flat (95-5_

8шт.

14

FHO58644

SPRING - clutch

8шт.

15

FH260745

PLATE - pressure, clutch

1шт.

16

FHO27565

DISC

- clutch

2шт.

17

FH260752

PLATE - R.H. with shaft

1шт.

18

FH260729

SUPPORT

BULKHEAD - R.H.

1шт.

SCREW - 3/8" x 3/4" N.F. Phil. rhd. mach. (174-208) and nut (25-116) L.W. (92-6)

6шт.

19

FHO52563

BEARING - for R.H. bulkhead

1шт.

20

FH287334

MOUNTING - auger

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) L.W. (92-6)

8шт.

WASHER - 1/2" flat (95-8)

16шт.

21

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

2шт.

O697CB

X

COLLAR

1шт.

22

O650CB

X

FLANGE - for 2419CHA bearing

4шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

6шт.

23

FH264127

SCREW - auger adjusting

2шт.

NUT - 3/8" N.C. (25-106)

4шт.

24

FH380691

SPROCKET - (Replaces FH287250 when exhausted)

1шт.

24

FH287250

SPROCKET - (Use FH380691 when stocks are exhausted)

1шт.

25

FHO86330

CHAIN - auger drive (See chain page)

1шт.

26

FH279273

HUB - sprocket

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

4шт.

27

FHO61739

KEY

- gib, for sprocket hub

1шт.

28

FH287458

SHEAVE - half (6-3/4" dia.) Slow reel speed

2шт.

FHBNC 5/16" x 1" (13-516) L.W. (92-5)

4шт.

29

FH241190

SHIM - spacer for FH287458 sheave

2шт.

FH263467

SHEAVE - half, stationary (8-1/2" dia.) Fast reel speed

1шт.

FHBNC - 5/16" x 3/4" (113-102) Nut (129-102) L.W. (192-20)

6шт.

FH263459

SHEAVE - half, floating (8-1/2" dia.) Fast reel speed

1шт.

FH241208

SHIM

- spacer for FH263459, FH263467 (Replaced by FH417980 when stocks are exhausted)

3шт.

FH417980

SHIM - spacer for FH263459, FH263467 (Replaces FH241208 when stocks are exhausted)

3шт.
