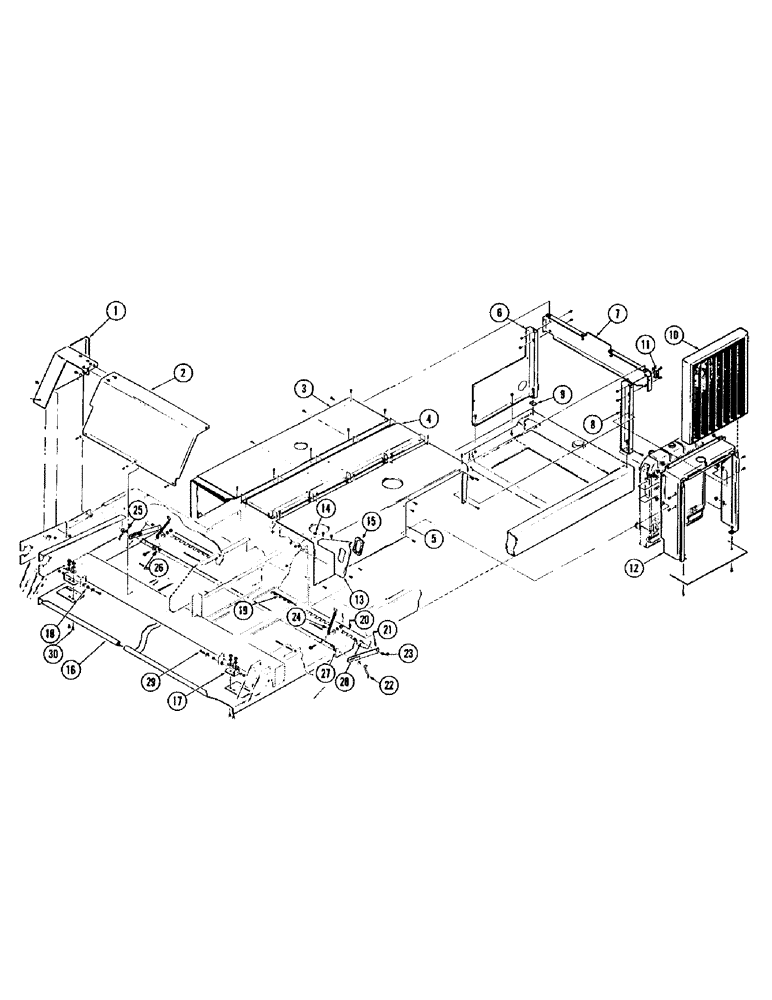

Запчасти Case IH 1075 (014) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F37319

SHIELD

1шт.

2

F37320

SHIELD

1шт.

3

F37278

LOCK NUT

PANEL - hood R.H.

1шт.

4

F37279

PANEL - hood center

1шт.

5

F37282

PANEL - hood L.H.

1шт.

6

F37281

PANEL - R.H.

1шт.

7

F37280

PANEL

1шт.

8

F37186

LOCK NUT

PANEL - L.H.

1шт.

9

F37067

BLOCK - spacer

1шт.

10

F37286

SCREEN - radiator

1шт.

11

A8179

SOCKET

BRACKET - lamp

1шт.

12

F37318

LOCK NUT

HOUSING - radiator

1шт.

13

F37742

MOUNT - flasher

1шт.

14

F53322

GROMMET

1шт.

15

F37412

GROMMET

1шт.

16

F37317

SHIELD - front window HAY CONDITIONER SHIELDS

1шт.

17

F37068

BRACKET HAY CONDITIONER SHIELDS

2шт.

18

FH158543

SPACER - 5/16" lg. HAY CONDITIONER SHIELDS

2шт.

19

F37066

PIN HAY CONDITIONER SHIELDS

1шт.

20

F37285

DEFLECTOR - rear HAY CONDITIONER SHIELDS

1шт.

21

F36371

STRAP HAY CONDITIONER SHIELDS

2шт.

22

FHO66423

NUT - lever HAY CONDITIONER SHIELDS

2шт.

23

131-179

LOCK NUT,3/8"-16, GA

NUT - 3/8" center lock HAY CONDITIONER SHIELDS

2шт.

24

F37766

CHAIN HAY CONDITIONER SHIELDS

2шт.

25

195-25

WASHER,3/8"

Hay conditioner shields 3/8"

2шт.

26

111-364

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Hay conditioner shields

2шт.

27

195-29

WASHER,7/16"

- flat HAY CONDITIONER SHIELDS 7/16"

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Hay Conditioner Shields Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Hay conditioner shields Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

30

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Hay conditioner shields Short NK, 3/8"-16 x 1", G2

4шт.
