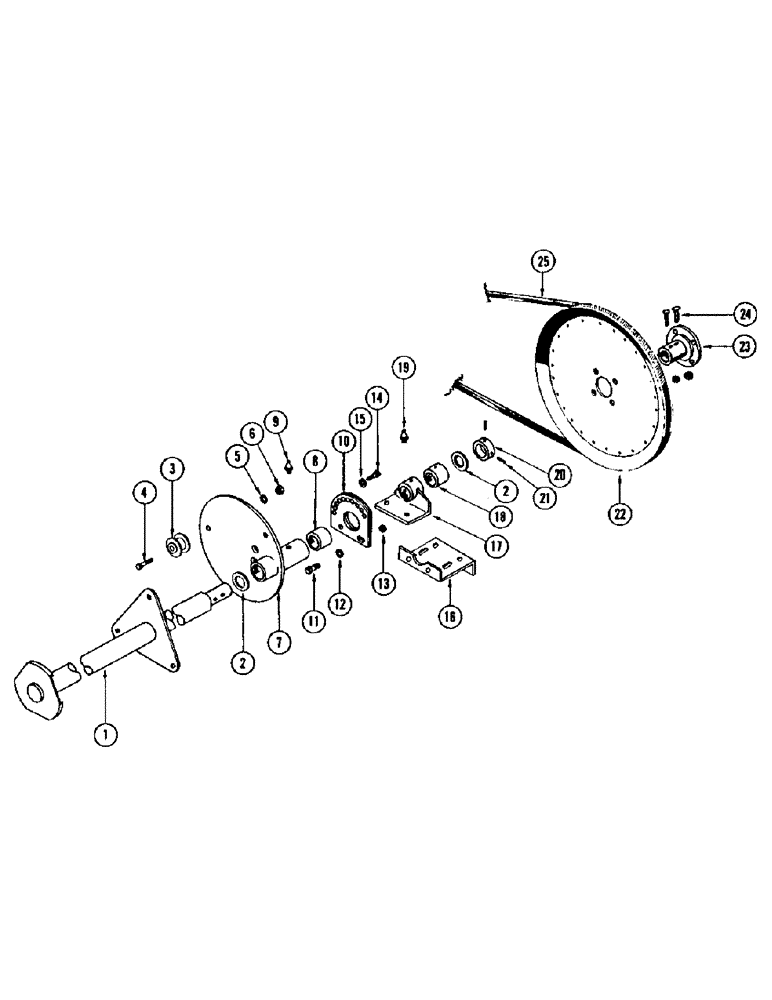

Запчасти Case IH 1075 (102) - PICK-UP REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F94959

SHAFT - driving end, L.H.

1шт.

2

F53438

WASHER - drive shaft

8шт.

3

F53435

BEARING

ROLLER - ball bearing

6шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

7

F94161

FRAME - eccentric roller

2шт.

8

F53443

BEARING - bronze

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

1шт.

10

F94171

PLATE - eccentric adjusting

2шт.

11

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-7

LOCK WASHER,7/16"

4шт.

13

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

F54700

BRACKET - eccentric adjustment

2шт.

17

F94957

SUPPORT - bearing

2шт.

18

F53443

BEARING - bronze

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

1шт.

20

F53439

COLLAR

2шт.

21

178-816

SCREW - 3/8 x 1/4" N.C. cup pt. socket hd. set

4шт.

22

FH220822

SHEAVE - reel

1шт.

23

FH220780

HUB - reel sheave

1шт.

24

61-640

HEX SOC SCREW,3/8"-16 x 2 1/2"

SCREW - 3/8 x 2-1/2" N.C. hex. socket cap

2шт.

25

FHO56606

BELT - reel drive

1шт.
