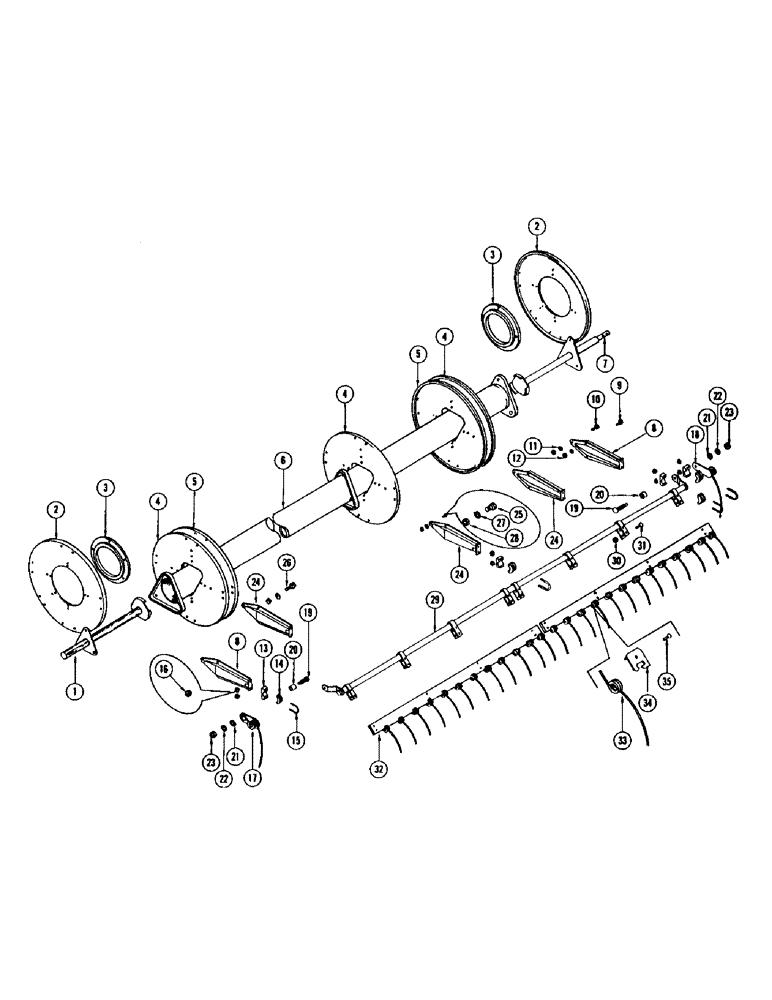

Запчасти Case IH 1075 (100) - PICK-UP REEL, DRAPER HEADER (58) - ATTACHMENTS/HEADERS

1

F94958

SHAFT - driven end, R.H.

1шт.

2

F54701

PLATE - eccentric spider

2шт.

3

F54702

RING - eccentric control

2шт.

4

F54703

PLATE - spider (3-10', 12') (4-14')

1шт.

5

F94960

PLATE - spider stiffening

2шт.

6

F94135

SHAFT - 10 ft. reel

1шт.

F94139

SHAFT - 12 ft. reel

1шт.

F94148

SHAFT - 14 ft. reel

1шт.

7

F94959

SHAFT - driving end, L.H.

1шт.

8

F94162

ARM

- eccentric roller frame

10шт.

9

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

20шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

11

92-5

LOCK WASHER,5/16"

30шт.

12

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

30шт.

13

F53434

BASE

- bearing (25-10', 12') (30-14')

1шт.

14

F53433

CAP

- bearing (25-10', 12') (30-14')

1шт.

15

F53432

BOLT

U-BOLT - bearing (25-10', 12') (30-14')

1шт.

16

131-717

LOCK NUT

NUT - 1/4" N.C. hug lock

1шт.

17

F94166

FINGER

- R.H. auxiliary pick-up

5шт.

18

F94164

FINGER

- L.H. auxiliary pick-up

5шт.

19

F53437

BOLT - shank, auxiliary finger

10шт.

20

F53440

SPACER - shank bolt

10шт.

21

195-29

WASHER,7/16"

- flat 7/16"

10шт.

22

92-8

LOCK WASHER,1/2"

10шт.

23

131-168

LOCK NUT,1/2"-20, GA

NUT - 1/2" N.F. Gripco lock

10шт.

24

F94162

ARM

- reel (15-10', 12') (20-14')

1шт.

25

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

(15-10', 12') (30-14') Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

30шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

29

F94138

SHAFT - bat, 10 ft. reel

5шт.

F94142

SHAFT - bat, 12 ft. reel

5шт.

F94152

SHAFT - bat, 14 ft. reel

5шт.

30

11-422

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 3/8", G2

BOLT - 1/4 x 1-3/8" rhd. sq. nk. (80-10', 12') (120-14')

1шт.

31

131-2

NUT,1/4"-20, GB

NC 1/4"-20, GB

1шт.

32

F94137

BAT

- 10 ft. reel

10шт.

F94141

BAT - 12 ft. reel

10шт.

F94150

BAT

- outside 48", 14 ft. reel

10шт.

F94151

BAT

- inside 54", 14 ft. reel

5шт.

33

F53349

TINE

(120-10', 140-12', 170-14')

1шт.

34

F53348

CLIP

1шт.

35

B17161

RIVET - 3/16 x 1" O.H. tubular (1 lb.)

1шт.
