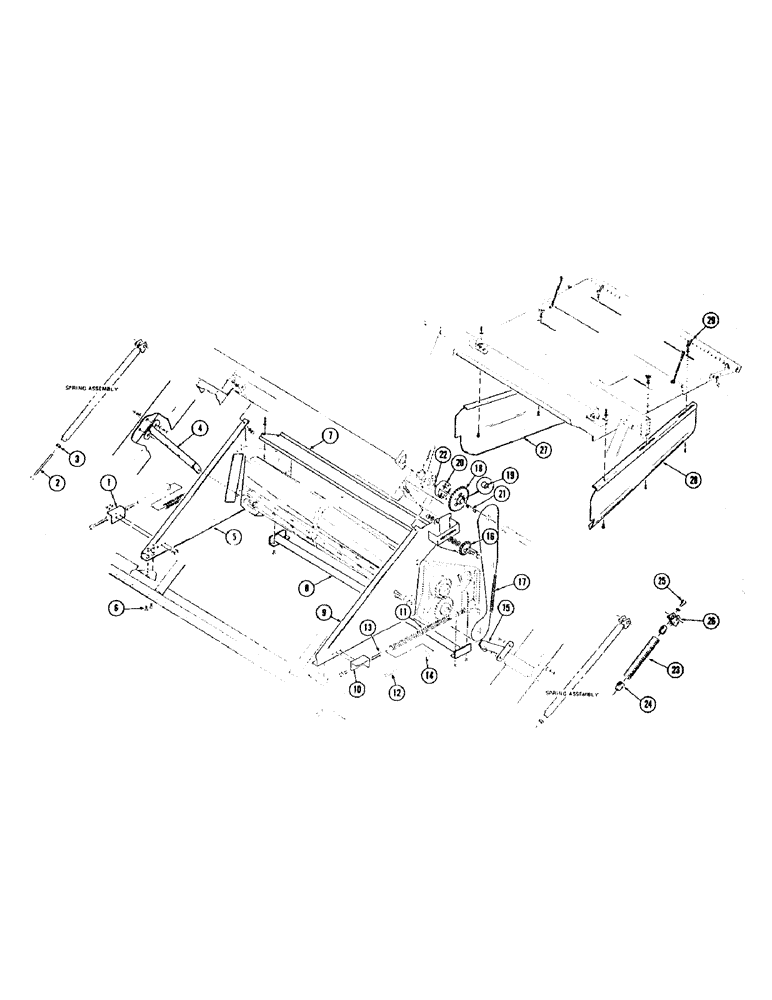

Запчасти Case IH 1075 (092) - HAY CONDITIONER DRIVE, DRAPER HEADER (58) - ATTACHMENTS/HEADERS

1

F37484

PAD - R.H. spring

1шт.

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

4шт.

2

FHO73668

BOLT - 3/4 x 14" w/12" thread

2шт.

3

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

2шт.

4

F37480

LAMP

BRACE - R.H.

1шт.

5

F37478

PANEL - R.H.

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

19-620

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5

BOLT - 3/8 x 1-1/4" plow gr. 5

4шт.

7

F37882

SHIELD

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

8

F37823

BRACE

1шт.

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

4шт.

9

F37481

PANEL - L.H.

1шт.

10

F37483

PAD - L.H. spring

1шт.

11

F37043

SPRING

2шт.

12

F37213

LOCK NUT

ROD - tension

2шт.

13

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

8шт.

14

195-109

WASHER,3/4"

- flat 3/4"

4шт.

15

F37479

BRACE - L.H.

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

F37615

IDLER - chain

1шт.

FHO52233

BUSHING - 5/8" x 14 ga. mach.

3шт.

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8 x 2-1/4" N.C. hex.

1шт.

17

F37881

CHAIN - drive (See chain page)

1шт.

B12481

CHAIN (See chain page)

1шт.

18

F37486

SPROCKET

1шт.

19

F37482

BUSHING

1шт.

20

FH727610

COUPLING - bonded

1шт.

21

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

SCREW - 3/8 x 2-1/4" N.C. soc. hd. cap

6шт.

22

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - 3/8-16 T-lock

6шт.

23

F37042

LOCK NUT

SPRING - tension

2шт.

24

FH280040

PLUG

- spring

4шт.

25

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

26

F37211

LOCK NUT

BRACKET - spring, upper

2шт.

27

F37300

LOCK NUT

DEFLECTOR - R.H.

1шт.

28

F37299

DEFLECTOR - L.H.

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

129-419

WING NUT,5/16"-18

NUT - 5/16" wing

2шт.

29

F36992

LEVER

2шт.
