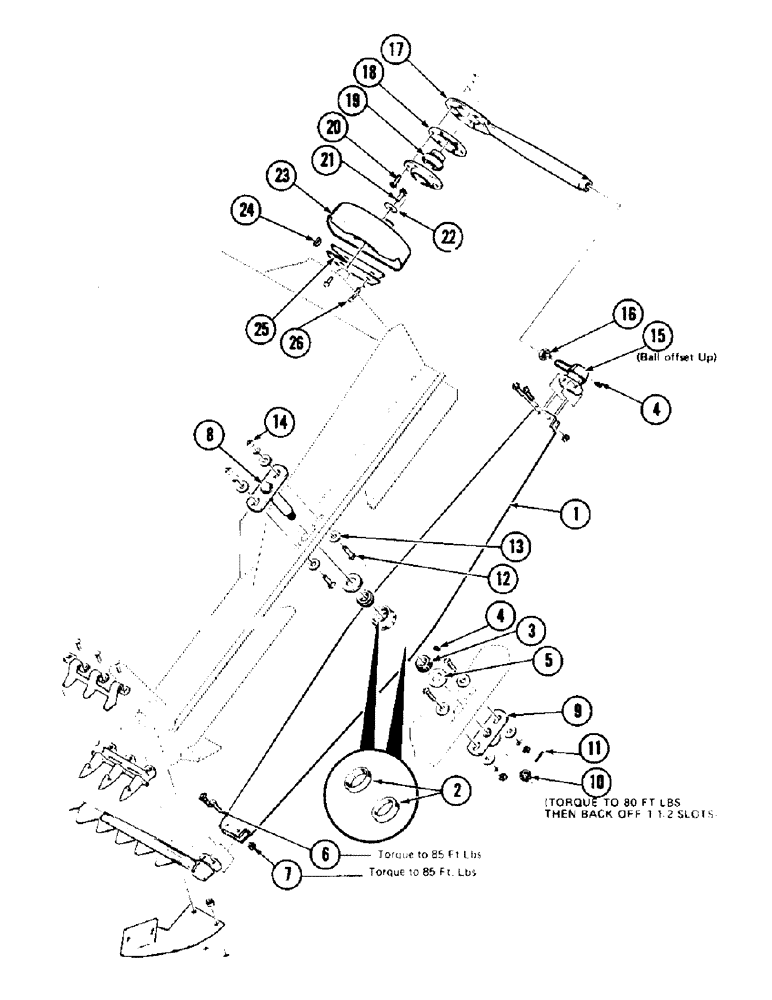

Запчасти Case IH 1075 (086) - SICKLE DRIVE, DRAPER HEADER (58) - ATTACHMENTS/HEADERS

1

F37492

SWAYBAR

1шт.

2

F37924

BEARING

CUP - bearing

2шт.

3

F37925

CYLINDER END CAP

CONE - bearing

2шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

5

FH263764

WASHER

2шт.

6

FHO26450

BOLT

4шт.

7

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2"-20 N.F. hex. jam

4шт.

8

FH123216

PIN

- swaybar

1шт.

9

F35202

PLATE

- reinforcement

1шт.

10

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8"-14 slotted hex.

1шт.

11

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

12

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" N.F. hex.

4шт.

13

195-33

WASHER,1/2"

- flat 1/2"

8шт.

14

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

15

F37175

HEAD

BALL JOINT - Pitman

1шт.

16

FHO74526

NUT - 7/8"-18 jam

1шт.

17

F37494

PITMAN - 10 ft. header

1шт.

F37493

PITMAN - 12 ft. header

1шт.

F37495

PLUG

PITMAN - 14 ft. header

1шт.

18

FH712612

FLANGE

- bearing

2шт.

19

F90485

BEARING ASSY

BEARING

1шт.

20

111-366

BOLT,Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

- 3/8 x 1-1/4" rhd. sq. nk. gr. 5

6шт.

21

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2 x 1" N.F. hex.

1шт.

22

F37141

WASHER

1шт.

23

F37489

FLYWHEEL

1шт.

24

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

25

F37860

SHIM - balance (5-10', 4-12', 3-14')

1шт.

26

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.-10 ft. header

2шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex.-12 ft. header

2шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.-14 ft. header

2шт.
