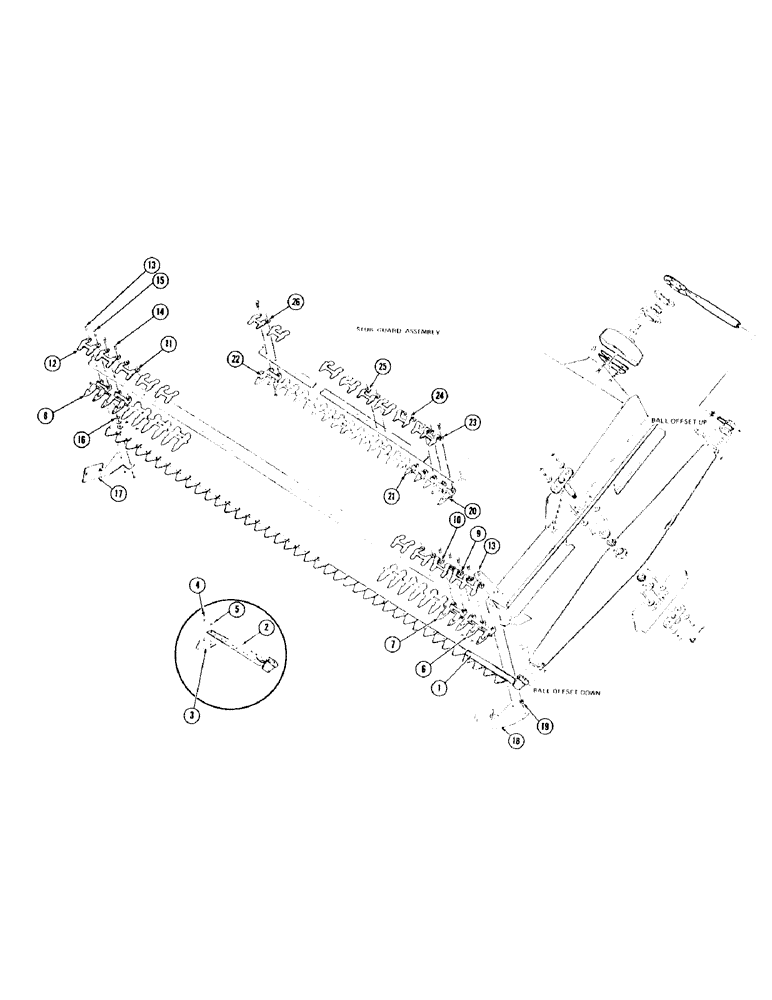

Запчасти Case IH 1075 (084) - SICKLE, DRAPER HEADER (58) - ATTACHMENTS/HEADERS

1

F37194

SICKLE - 10 ft., top serrated

1шт.

F37195

SICKLE - 12 ft., top serrated

1шт.

F37000

SICKLE - 14 ft., top serrated

1шт.

2

F37193

HEAD

1шт.

3

FHO49213

KNIFE SECTION

SECTION - top ser. (40-10', 48-12', 56-14')

1шт.

4

T13489

RIVET

- 5-1/2 x 9/16" O.H. (71-10', 87-12', 103-14')

1шт.

5

T13492

RIVET

- 5-1/2 x 7/8" oval hd.

9шт.

F36934

SICKLE - 10 ft., smooth sections

1шт.

F36935

SICKLE - 12 ft., smooth sections

1шт.

F36936

SICKLE - 14 ft., smooth sections

1шт.

FHO48108

SECTION - smooth (40-10', 48-12', 46-14') (Also includes ref. 2, 4, 5)

1шт.

6

F37753

WING NUT

GUARD - triple tie

1шт.

7

FHO49270

GUARD

- double tie (18-10', 22-12', 26-14')

1шт.

8

F37752

GUARD - double tie

1шт.

9

F37755

PLATE - triple tie

1шт.

10

F35006

PLATE - high clearance tie

1шт.

11

F35005

PLATE

- reg. tie (17-10', 21-12', 25-14')

1шт.

12

F37754

PLATE - tie

1шт.

13

111-408

BOLT

- 7/16 x 1-3/4" rhd. sq. nk. gr. 5

2шт.

14

111-402

CARRIAGE BOLT

BOLT - 7/16 x 1-1/2" rhd. sq. nk. (38-10', 46-12', 54-14')

1шт.

15

14-732

CAPSCREW,Hex, 7/16" - 20 x 2", Gr 5

BOLT - 7/16 x 2" N.F. hex.

1шт.

16

195-529

WASHER,7/16", SAE

3шт.

129-104

NUT,7/16"-14, G5

1шт.

17

F37822

SHOE - R.H. divider

1шт.

18

F37821

SHOE - L.H. divider

1шт.

19

F37762

SPACER

1шт.

20

F37877

GUARD - stub triple tie STUB GUARD

1шт.

21

F36784

GUARD

- stub double tie (18-10', 22-12', 26-14') STUB GUARD

1шт.

22

F37878

GUARD - stub tie plate, R.H. STUB GUARD

1шт.

23

F37880

PLATE - stub triple tie STUB GUARD

1шт.

24

F36786

PLATE - stub high clearance tie STUB GUARD

1шт.

25

F36785

PLATE - stub reg. tie (17-10', 21-12', 25-14') STUB GUARD

1шт.

26

F37879

PLATE - stub tie, R.H. STUB GUARD

1шт.
