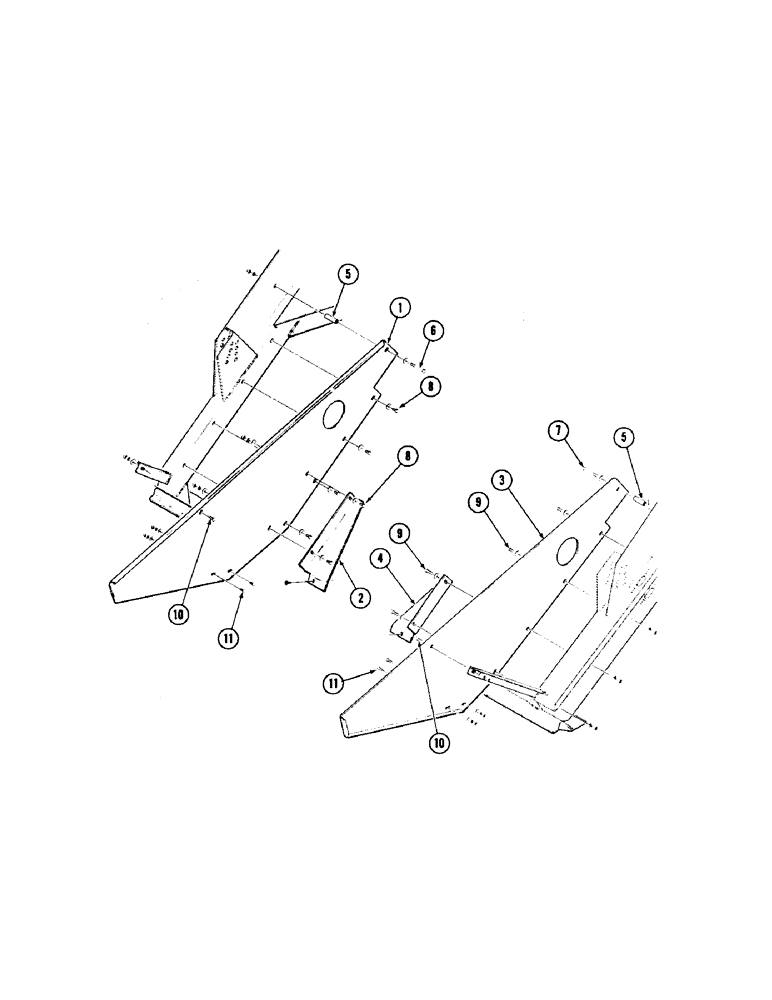

Запчасти Case IH 1075 (078) - DIVIDER SHIELDS, DRAPER HEADER (58) - ATTACHMENTS/HEADERS

1

F37511

SHIELD - R.H. divider (Before 8375851)

1шт.

1

F38128

SHIELD - R.H. divider (8377801 thru 8377830)

1шт.

2

F37514

SHIELD - R.H.

1шт.

3

F37510

SHIELD - L.H. (Before 8375851)

1шт.

3

F38127

SHIELD - L.H. divider (8377801 thru 8377830)

1шт.

4

F37513

SHIELD - L.H.

1шт.

5

FH159889

SPACER

2шт.

6

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

7

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" rhd. sq. nk.

2шт.

11

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.
