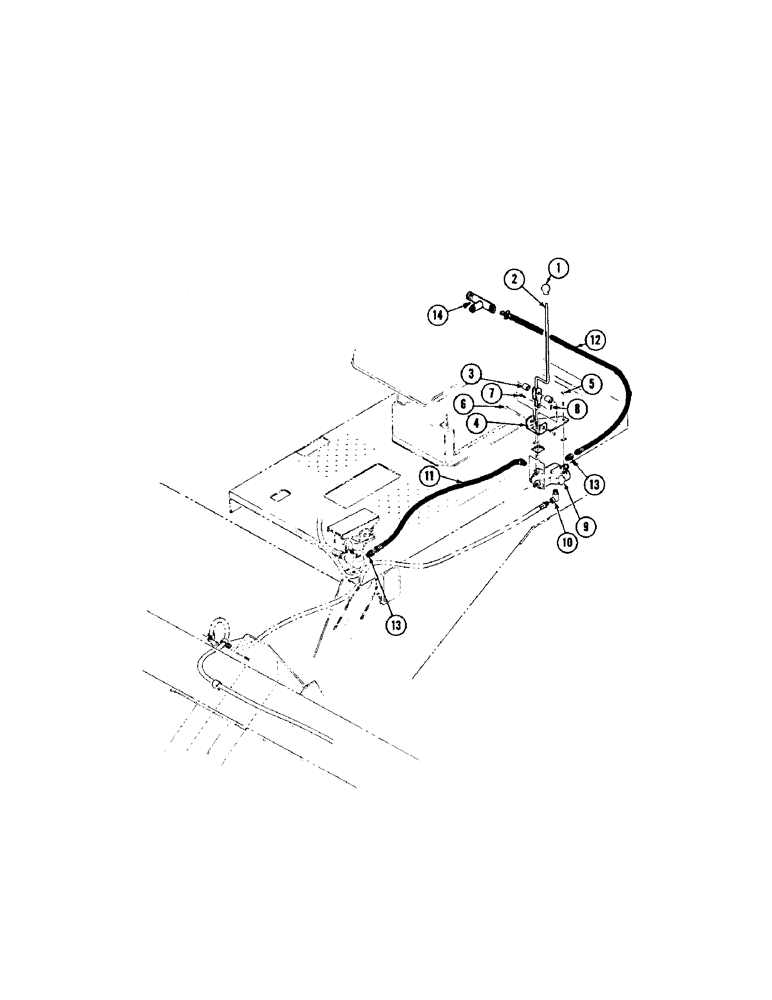

Запчасти Case IH 1075 (076) - REEL CONTROL, DRAPER HEADER (58) - ATTACHMENTS/HEADERS

1

F37619

KNOB

1шт.

2

F37533

LEVER

1шт.

3

F37858

SPACER

2шт.

4

F36223

PLATE - lever mounting

1шт.

5

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- 1/4 x 2-1/4" N.C. hex.

2шт.

6

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

131-179

LOCK NUT,3/8"-16, GA

NUT - 3/8" lock

1шт.

7

FHO63867

PIN - clevis 3/16 x 1"

1шт.

8

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

9

F37623

VALVE - reel lift

1шт.

10

218-5204

90 ELBOW,90 Degree, 9/16"-18 O-Ring x 1/4" NPSM Fem

FITTING - swivel 90 degree O-ring

1шт.

11

F37542

HOSE

1шт.

12

FHO42275

HOSE

1шт.

13

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

FITTING - O-ring swivel

2шт.

14

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

FITTING - tee

1шт.

F37623

VALVE - control, reel lift

1шт.
