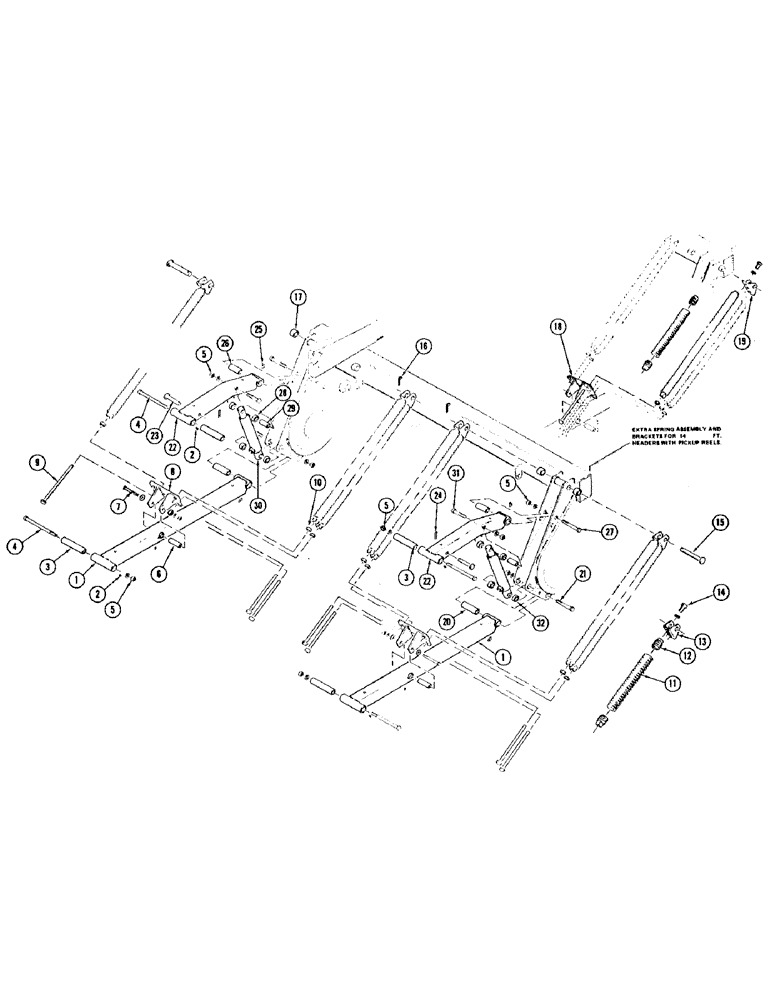

Запчасти Case IH 1075 (070) - HEAD LINKAGE, DRAPER HEADER (58) - ATTACHMENTS/HEADERS

1

F37527

ARM - lower lift

2шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

6шт.

3

F37538

BUSHING

4шт.

4

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- 3/4 x 8" N.C. hex.

4шт.

5

129-108

NUT,3/4"-10, G5

8шт.

129-27

NUT,Hex, #10 - 32

LOCKWASHER - 3/4"

8шт.

6

F37128

BUSHING

2шт.

7

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

8

F37210

LOCK NUT

BRACKET - spring

2шт.

9

FHO73668

BOLT - 3/4 x 14" w/12" thread

6шт.

10

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

6шт.

11

F37042

LOCK NUT

SPRING

6шт.

12

FH280040

PLUG

- spring

12шт.

13

F37211

LOCK NUT

BRACKET - spring

4шт.

14

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

6шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

15

F37122

PIN - clevis

2шт.

16

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

17

F37358

SPACER

4шт.

18

F38063

LOCK NUT

BRACKET - spring (14' header w/pickup reel)

1шт.

19

F38064

LOCK NUT

BRACKET - spring (14' header w/pickup reel)

1шт.

20

F37126

BUSHING

2шт.

21

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" N.C. hex.

2шт.

22

F37528

ARM - upper lift

2шт.

23

FH763383

PIN - clevis 3/4 x 3-3/4"

2шт.

24

138-160

LOCK PIN,5/16" x 2", Slotted

COTTER - hair pin

2шт.

25

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease

4шт.

26

F37125

BUSHING

2шт.

27

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

28

F37872

SPACER

4шт.

29

F37537

BUSHING

2шт.

30

F37770

CYLINDER - header lift

2шт.

31

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

32

F37144

SPACER

4шт.
