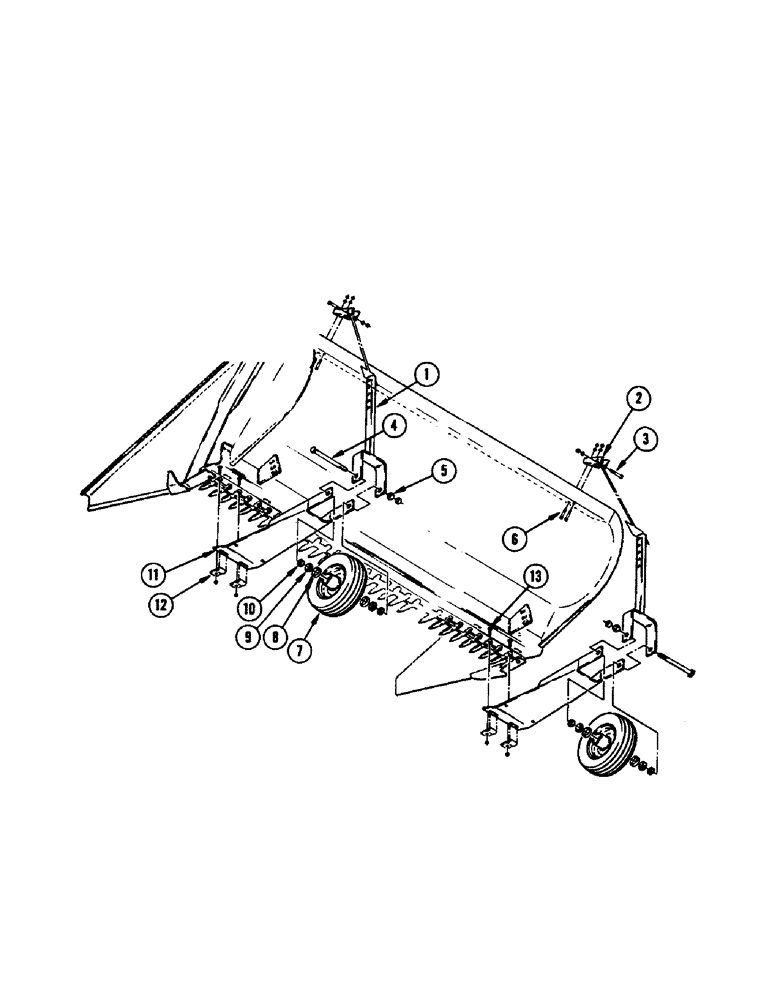

Запчасти Case IH 1075 (062[A]) - HI-CLEARANCE GAUGE WHEELS 12 FT. TO 14 FT. AUGER HEADER (58) - ATTACHMENTS/HEADERS

1

F37251

FORK

2шт.

2

F37816

BRACKET - mounting

2шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

2шт.

4

F36812

BOLT - 3/4 x 9" N.C. hex.

2шт.

5

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

4шт.

6

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

4шт.

7

FHO26476

RIM AND TIRE

2шт.

8

B12410

BEARING, CUP,1.782" OD

CUP - bearing

2шт.

9

FH711044

BEARING

CONE - bearing

4шт.

10

F37146

SPACER - 21/32" lg.

4шт.

11

F37332

FORK

2шт.

12

F37227

CLIP

4шт.

13

111-411

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 3/4", G5

BOLT - 7/16 x 1-3/4" rhd. sq. nk. gr. 5

4шт.
