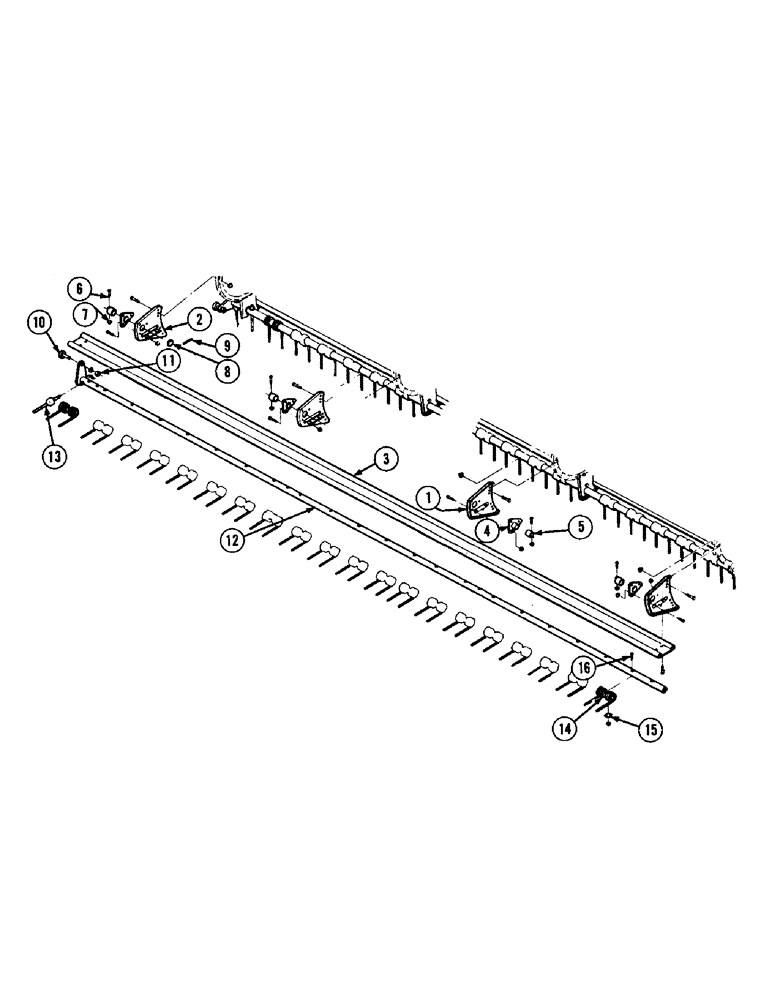

Запчасти Case IH 1075 (058[A]) - EXTRA REEL BAT, 14 FT. (58) - ATTACHMENTS/HEADERS

1

FH428292

SUPPORT

- L.H.

2шт.

2

FH428300

SUPPORT - R.H.

2шт.

3

FH444265

BAT

1шт.

4

F35402

FLANGE

HOUSING - bearing

4шт.

5

F35401

BEARING

4шт.

6

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

7

131-1115

NUT - 1/4" N.C. center lock

4шт.

8

FHO52274

BUSHING

1шт.

9

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

10

F37034

BEARING

- cam

1шт.

11

129-167

JAM NUT,Jam, 5/8"-18, G5

- 5/8"-18 N.F. hex. jam

1шт.

12

F36998

TUBE - "A" tine

1шт.

13

FH756163

TINE

- single

1шт.

14

FH750075

TINE

- double

20шт.

15

FH261024

CLIP

- tine

20шт.

16

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

20шт.
