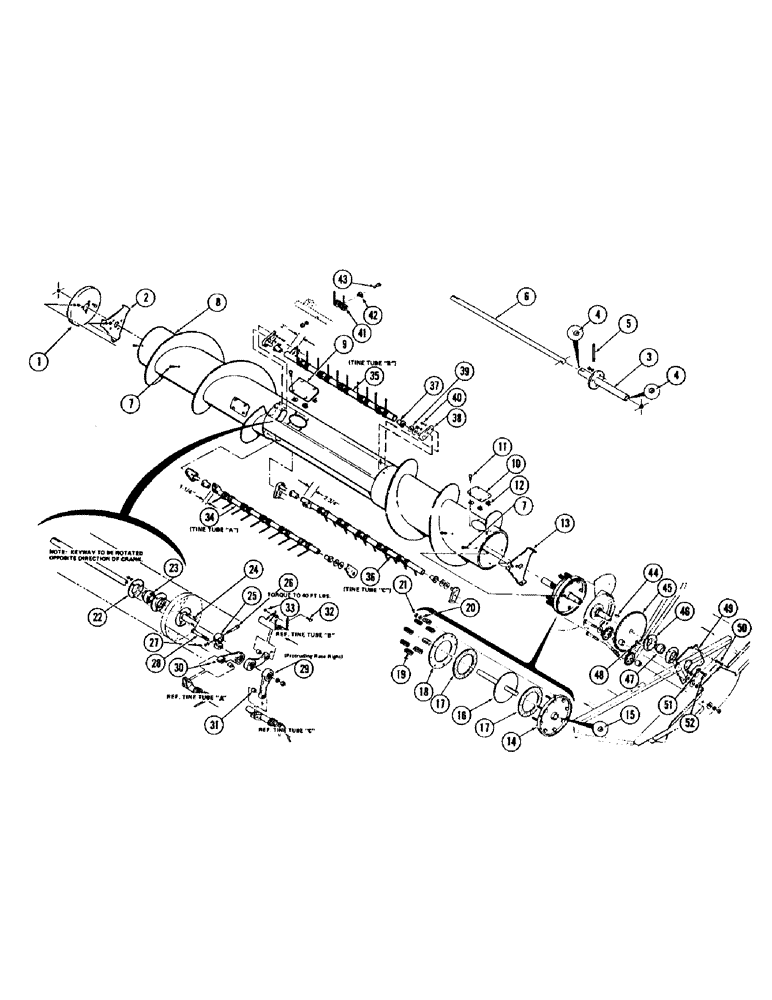

Запчасти Case IH 1075 (050) - AUGER (58) - ATTACHMENTS/HEADERS

1

FH311845

BULKHEAD

1шт.

2

F37375

BULKHEAD

1шт.

3

F37398

SHAFT - stub

1шт.

4

F37350

LOCK NUT

BUSHING

2шт.

5

219-7

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" NPTF straight 2-5/8"

1шт.

6

F37759

SHAFT - control, 10 ft.

1шт.

F37760

SHAFT - control, 12 ft.

1шт.

F36999

SHAFT - control, 14 ft.

1шт.

7

78-612

SCREW - 3/8 x 3/4" N.F.

15шт.

8

F37329

AUGER - 10 ft.

1шт.

F37328

AUGER - 12 ft.

1шт.

F37011

AUGER - 14 ft.

1шт.

9

F37365

COVER

1шт.

10

F9225

COVER

3шт.

11

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - 14A x 5/8" Phil. pan hd., sheet metal

16шт.

12

445406

SPRING NUT,Tinn, 1/4"-14

- 14A speed

16шт.

13

F18441

HEAD

BULKHEAD

1шт.

14

FH260729

SUPPORT

BULKHEAD

1шт.

15

FHO52563

BEARING

1шт.

16

F37219

PLATE - clutch

1шт.

17

FHO27565

DISC

- clutch

2шт.

18

FH260745

PLATE - pressure

1шт.

19

FHO58644

SPRING

8шт.

20

195-533

WASHER,1/2", SAE

- 1/2" flat

8шт.

21

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" elastic stop

8шт.

22

F62225

FLANGE

2шт.

23

1443CKA

BALL BEARING

BEARING

1шт.

F62234

COLLAR

1шт.

24

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" rhd. sq. nk.

3шт.

25

FH407171

ARM

CRANK

1шт.

26

61-640

HEX SOC SCREW,3/8"-16 x 2 1/2"

BOLT - 3/8 x 2-1/2" N.C. socket hd.

1шт.

27

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N.C. hex. heavy

1шт.

28

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

29

F37263

ARM - control

3шт.

B10700

BEARING ASSY,0.7505" ID x 1.8504" OD x 1.219"

BEARING - less collar

1шт.

30

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease

3шт.

31

FH311910

BUSHING

3шт.

32

75-524

X

SCREW - 3/8 x 1-1/2" rhd. mach.

3шт.

33

131-179

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex. center lock

3шт.

34

F37246

TUBE - "A" tine

1шт.

35

F37247

TUBE - "B" tine

1шт.

36

F37248

TUBE - "C" tine

1шт.

37

F37366

BUSHING

6шт.

38

F37364

BRACKET

6шт.

39

FHO52183

BUSHING - 3/4" x 18 ga. mach.

1шт.

40

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

12шт.

41

F37376

TINE - double

15шт.

42

FH261024

CLIP

- tine

15шт.

43

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

15шт.

44

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - 5/16 x 1" Woodruff

1шт.

45

F37009

SPROCKET - 57T

1шт.

46

FHO50567

FLANGE

2шт.

47

F96490

BEARING

1шт.

F62108

COLLAR

1шт.

48

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

3шт.

49

F37768

MOUNT - bearing

1шт.

50

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

51

F36738

WASHER - special

1шт.

52

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

1шт.
