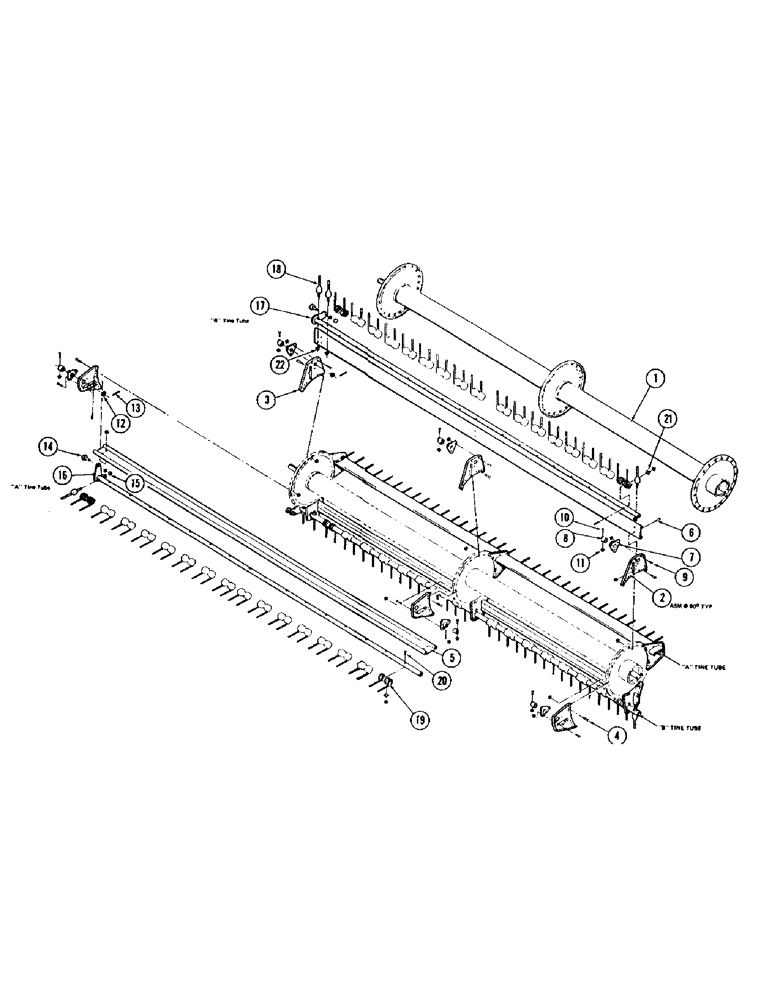

Запчасти Case IH 1075 (048) - REEL, AUGER HEADER (58) - ATTACHMENTS/HEADERS

1

F37310

LOCK NUT

TUBE - reel, 10 ft.

1шт.

F37744

TUBE - reel, 12 ft.

1шт.

F36995

REEL

TUBE - reel, 14 ft.

1шт.

2

FH428292

SUPPORT

- L.H.

8шт.

3

FH428300

SUPPORT - R.H. (4-10', 12' 8-14')

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

5

FH444257

BAT - 10 ft.

4шт.

FH428326

BAT - 12 ft.

4шт.

FH444265

BAT - 14 ft.

4шт.

6

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

7

F35402

FLANGE

HOUSING - bearing (12-10', 12' 16-14')

1шт.

8

F35401

BEARING

(12-10', 12' 16-14')

1шт.

9

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

10

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

11

131-1115

NUT - 1/4" N.C. center lock

1шт.

12

FHO52274

BUSHING

- 1-3/8" x 14 ga.

4шт.

13

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

14

F37034

BEARING

- cam follower

4шт.

15

129-167

JAM NUT,Jam, 5/8"-18, G5

- 5/8"-18 N.F. hex. jam

4шт.

16

F37238

TUBE - "A" tine, 10 ft.

2шт.

F37220

TUBE - "A" tine, 12 ft.

2шт.

F36998

TUBE - "A" tine, 14 ft.

2шт.

17

F37239

TUBE - "B" tine, 10 ft.

2шт.

F37221

TUBE - "B" tine, 12 ft.

2шт.

F36997

TUBE - "B" tine, 14 ft.

2шт.

18

FH756163

TINE

- single

8шт.

19

FH750075

TINE

- double (54-10', 66-12', 78-14')

1шт.

20

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

21

FH261024

CLIP

- tine

1шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

1шт.
