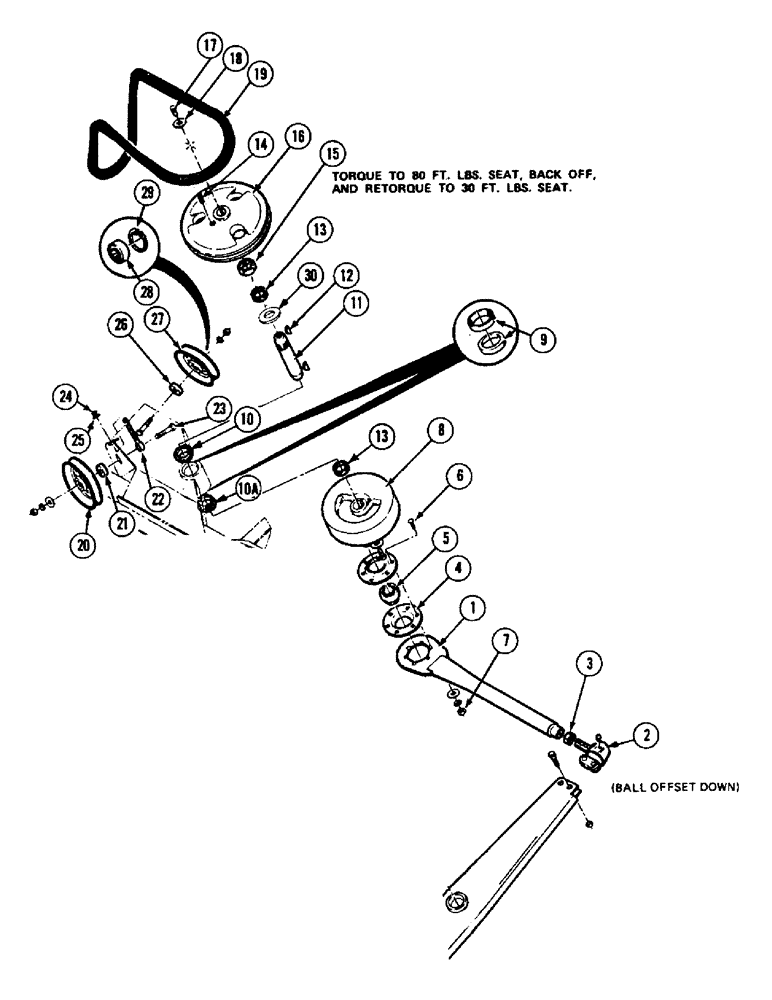

Запчасти Case IH 1075 (046) - SICKLE DRIVE, AUGER HEADER (58) - ATTACHMENTS/HEADERS

1

F37218

PITMAN - 10 ft.

1шт.

F37231

PITMAN - 12 ft.

1шт.

F36996

PITMAN - 14 ft.

1шт.

2

F37175

HEAD

- Pitman

1шт.

3

FHO74526

NUT - jam

1шт.

4

FH712612

FLANGE

2шт.

5

F90485

BEARING ASSY

BEARING

1шт.

6

111-366

BOLT,Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

- 3/8 x 1-1/4" rhd. sq. nk. gr. 5

6шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

92-6

LOCK WASHER,3/8"

6шт.

195-25

WASHER,3/8"

6шт.

8

F37321

FLYWHEEL - Pitman (Before 8375851)

1шт.

8

F38197

FLYWHEEL - Pitman (8377801 thru 8377830)

1шт.

9

G57451

BEARING, CUP

CUP - bearing

2шт.

10

G57452

ROLLER BEARING

CONE - bearing

1шт.

10a

F37577

CONE - bearing

1шт.

11

F37580

SHAFT (Before 8375851)

1шт.

11

F38196

SHAFT (8377801 thru 8377830)

1шт.

12

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

13

F37579

SPACER

2шт.

15

25-1522

NUT - 1-3/8"-12 hex. jam Jam, 1 3/8"-12, G5

1шт.

16

F37327

SHEAVE

1шт.

17

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2 x 1" N.C. hex.

2шт.

18

F37141

WASHER

2шт.

19

F37748

SCREW,POINTED

BELT

1шт.

20

F37351

FRONT IDLER

IDLER

1шт.

21

F37362

SPACER

1шт.

22

FH766287

SPECIAL BOLT

DRAWBOLT

1шт.

23

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

24

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

25

195-33

WASHER,1/2"

- flat 1/2"

2шт.

26

FH214817

SPACER

1шт.

27

F37149

IDLER

1шт.

28

T32178

BALL BEARING,0.515" ID x 1.5748" OD x 0.72"

BEARING

1шт.

29

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

30

F37578

WASHER

1шт.
