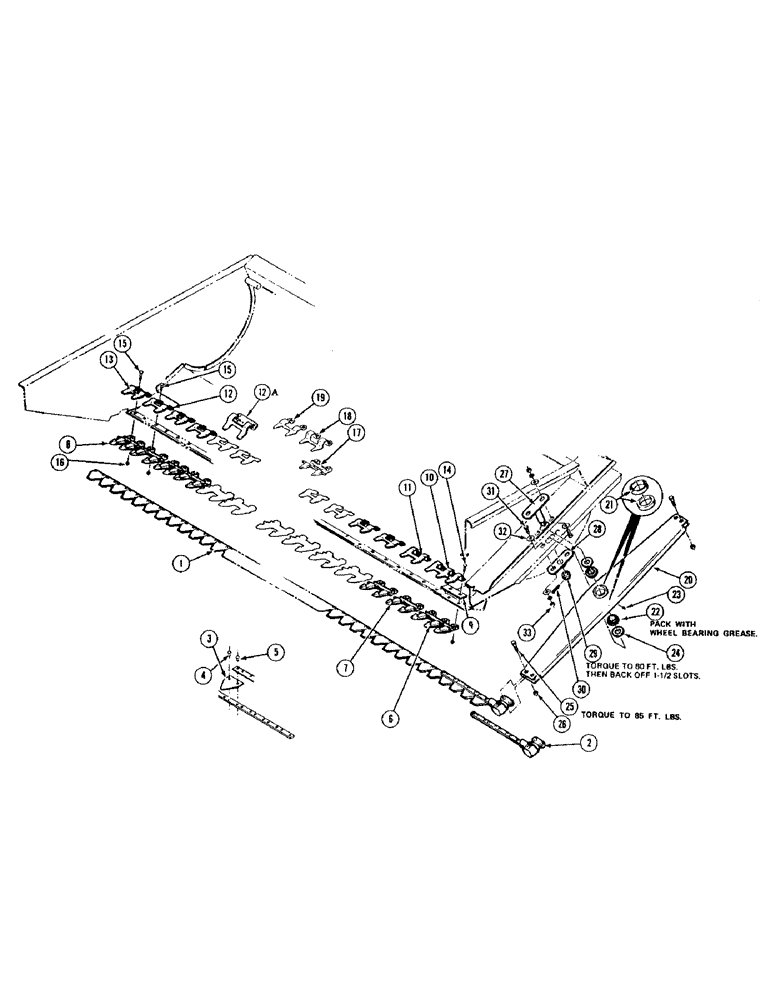

Запчасти Case IH 1075 (044) - SICKLE AND SWAYBAR, AUGER HEADER (58) - ATTACHMENTS/HEADERS

1

F37194

SICKLE - 10 ft., top serrated

1шт.

F37195

SICKLE - 12 ft., top serrated

1шт.

F37000

SICKLE - 14 ft., top serrated

1шт.

2

F37193

HEAD

1шт.

3

FHO49213

KNIFE SECTION

SECTION - T.S. (40-10', 48-12', 56-14')

1шт.

4

T13489

RIVET

- 5-1/2 x 9/16" O.H. (71-10', 87-12', 103-14')

1шт.

5

T13492

RIVET

- 5-1/2 x 7/8 O.H.

9шт.

F36934

SICKLE - 10 ft., smooth sections

1шт.

F36935

SICKLE - 12 ft., smooth sections

1шт.

F36936

SICKLE - 14 ft., smooth sections

1шт.

FHO48108

SECTION - smooth (40-10', 48-12', 56-14') (Also includes ref. 2, 4, 5)

1шт.

6

F37753

WING NUT

GUARD - triple tie

1шт.

7

FHO49270

GUARD

- double tie (18-10', 22-12', 26-14')

1шт.

8

F37752

GUARD - double tie

1шт.

9

F37070

CAP - upper cutter bar, 10 ft. - 12 ft.

1шт.

F37418

CAP - upper cutter bar, 14 ft.

1шт.

10

F37755

PLATE - triple tie

1шт.

11

F35006

PLATE - high clearance tie

1шт.

12

F35005

PLATE

- reg. tie (17-10')

1шт.

12

F35005

PLATE

- reg. tie (21-12', 25-14') (Before 8375851)

1шт.

12a

F38123

PLATE

- reg. tie (21-12', 25-14') (8377801 thru 8377830)

1шт.

13

F37754

PLATE - tie

1шт.

14

111-408

BOLT

- 7/16 x 1-3/4" rhd. sq. nk. gr. 5

1шт.

15

111-402

CARRIAGE BOLT

BOLT - 7/16 x 1-1/2" rhd. sq. nk. (40-10', 48-12', 56-14')

1шт.

16

129-104

NUT,7/16"-14, G5

1шт.

17

F36784

GUARD

- stub double tie (18-10', 22-12', 26-14')

1шт.

18

F36786

PLATE - stub high clearance tie

1шт.

19

F36785

PLATE - stub reg. tie (17-10', 21-12', 25-14')

1шт.

20

F37232

LOCK NUT

SWAYBAR

1шт.

21

F37924

BEARING

CUP - bearing

2шт.

22

F37925

CYLINDER END CAP

CONE - bearing

2шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

24

FH263764

WASHER

2шт.

25

FHO26450

BOLT

4шт.

26

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

27

FH123216

PIN

- swaybar

1шт.

28

F35202

PLATE

- reinforcement

1шт.

29

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8"-14 slotted hex.

1шт.

30

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

31

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" N.F. hex.

4шт.

32

195-33

WASHER,1/2"

- flat 1/2"

8шт.

33

25-118

NUT,1/2"-20, G5

- 1/2" N.C. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.
