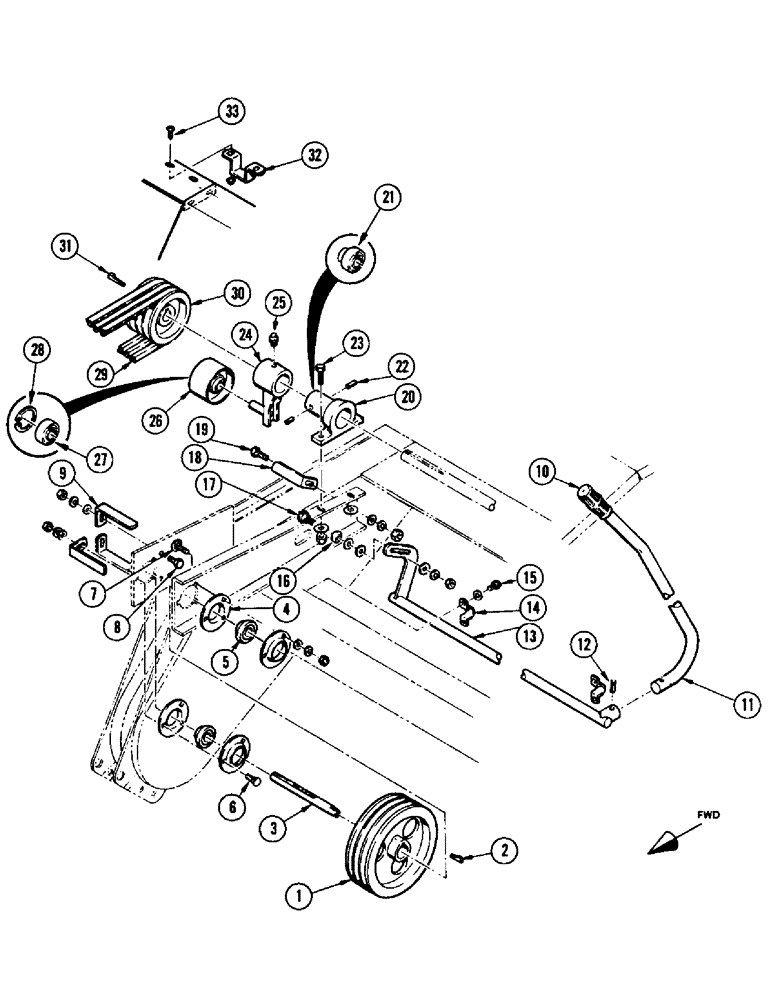

Запчасти Case IH 1075 (028) - HEADER DRIVE, AUGER HEADER (58) - ATTACHMENTS/HEADERS

1

F37274

LOCK NUT

SHEAVE

1шт.

2

FHO61416

KEY - 1/4 x 1/4 x 2-3/4" Gib

1шт.

3

F37184

LOCK NUT

SHAFT

1шт.

4

F62225

FLANGE

4шт.

5

F51085

BEARING

2шт.

F62226

COLLAR

2шт.

6

111-364

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

7

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

5шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

F37129

GUIDE

3шт.

10

FHO27086

X

GRIP

1шт.

11

F37276

LOCK NUT

LEVER

1шт.

12

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

13

F37273

ROD

1шт.

14

F37183

LOCK NUT

BRACKET

2шт.

15

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" self tap

4шт.

16

F37360

ROLLER

1шт.

17

F37361

BOLT

1шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex

1шт.

195-33

WASHER,1/2"

- flat 1/2"

3шт.

92-8

LOCK WASHER,1/2"

1шт.

18

F37065

GUIDE

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

F37036

LOCK NUT

PILLOW BLOCK

1шт.

21

F86214

BEARING ASSY,31.75mm ID x 72mm OD x 19mm W

BEARING

1шт.

22

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

23

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

24

FH246827

ARM - idler

1шт.

25

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease

1шт.

26

F37374

IDLER

1шт.

27

K4334

BEARING

1шт.

F62108

COLLAR

1шт.

28

A31078

SNAP RING,2.062", Int, #206

1шт.

29

F37747

WING NUT

BELTS (Matched set of 3)

1шт.

30

F37275

SHEAVE

1шт.

31

FHO61739

KEY

- 1/4 x 1/4 x 2-1/4" Gib

1шт.

32

F37258

GUIDE

1шт.

33

175-406

SCREW,Phil Truss Hd, 5/16 - 18 x 1/2"

- 5/16 x 1/2" Phillips truss hd. mach.

2шт.
