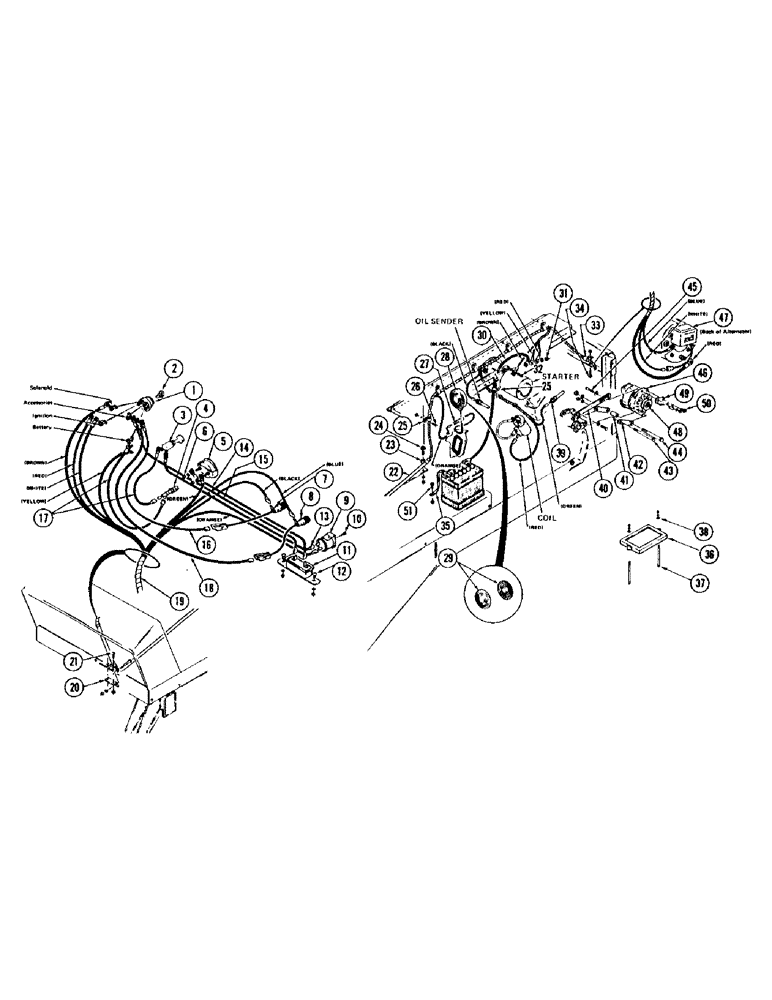

Запчасти Case IH 1075 (038) - ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

1

L17820

SWITCH

SWITCH - ignition

1шт.

2

A20346

KEY

KEY - ignition

1шт.

3

FHO41137

SWITCH

SWITCH - flasher

1шт.

4

FH741108

FUSE

1шт.

5

F36445

GAUGE - temperature

1шт.

6

129-37

NUT,#10-32

NUT, #10-32

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

7

F37160

LIGHT

LIGHT - oil

1шт.

8

F37159

SPARE PART LIGHT - alternator

1шт.

9

FH721852

LIGHT, WARNING

FLASHER

1шт.

10

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - #10-24 x 3/8" rhd. mach.

1шт.

11

F36448

SPARE PART REGULATOR - CV

1шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - #10-24 x 1/2" rhd. mach.

2шт.

13

F37406

WIRE - 18" (Orange)

1шт.

14

F37163

WIRE - 12" (Green)

1шт.

15

F37164

WIRE - 16" (White)

1шт.

16

F37161

WIRE - 10" (Blue)

1шт.

17

F37165

WIRE - 5" (Brown)

2шт.

18

F37162

WIRE - 12" (Black)

1шт.

19

F37405

HARNESS - wiring

1шт.

20

F37150

BRACKET - conduit

1шт.

21

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" Phillips rhd. mach.

2шт.

22

F37290

CONDUIT

1шт.

23

FH755751

CLAMP

CLAMP

2шт.

24

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

BOLT - 5/16 x 1-1/4" N.C. hex. washer hd.

1шт.

25

FH751487

CLAMP

6шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

27

FHO41145

CONNECTOR

1шт.

28

FH721829

LAMP

LIGHT - flasher

1шт.

29

F37901

SPARE PART LENS

2шт.

30

F36453

CABLE - battery

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

32

129-16

NUT,#8-32

NUT, #8-32

1шт.

33

FH756478

CLAMP

1шт.

34

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" Phillips rhd. mach.

1шт.

35

FH721068

CABLE - battery ground

1шт.

36

FHO41616

SPARE PART HOLD DOWN - battery

1шт.

37

FH702316

BOLT

BOLT - battery hold down

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

195-521

WASHER,5/16", SAE

WASHER - 5/16" flat

2шт.

39

F36446

SENDER - temperature

1шт.

40

F36506

NUT

STRAP - adjusting

1шт.

41

F21028

BUSHING

SPACER

1шт.

42

F36505

LINK - strap

2шт.

43

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/2", G5

1шт.

195-525

WASHER,3/8", SAE

WASHER - 3/8" flat

1шт.

44

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

BOLT - 1/2 x 3-3/4" N.C. hex.

1шт.

195-533

WASHER,1/2", SAE

WASHER - 1/2" flat

1шт.

45

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

46

F36763

SPARE PART ALTERNATOR

1шт.

46

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

46

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

47

F36468

NUT

REGULATOR

1шт.

48

F36434

PULLEY

1шт.

49

F36588

SHIELD

1шт.

50

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

BOLT, Hex Flg, 5/16"-18 x 1/2", Serr

1шт.

51

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex. washer hd.

1шт.
