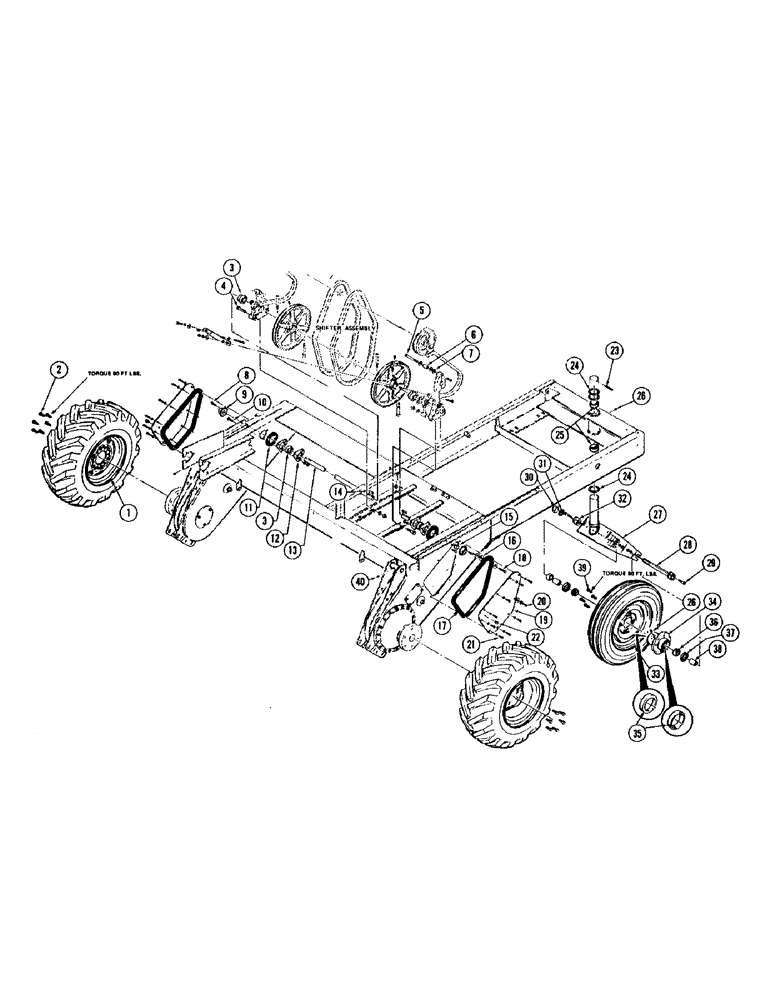

Запчасти Case IH 1075 (016) - DRIVE WHEELS (44) - WHEELS

1

F37046

WHEEL - 15" for 12.5 x 15 tire and tube

2шт.

F37048

WHEEL - 18" for 7.50 x 18 tire and tube

2шт.

2

F37047

BOLT - lug

12шт.

3

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

4шт.

F62226

COLLAR

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

5

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" x 3-1/2" N.C. hex.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

6

F37058

SPACER - 1-1/2" long

1шт.

7

195-25

WASHER,3/8"

3шт.

8

FHO61341

KEY - 1/4 x 1/4 x 1-1/2" Gib

2шт.

9

FHO47035

SPROCKET - 13T (Standard)

2шт.

FHO87932

SPROCKET ASSY.

SPROCKET - 11T (Slow down)

2шт.

10

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

11

FHO44073

GASKET

2шт.

12

F62225

FLANGE

4шт.

13

F37751

SHAFT - R.H. drive

1шт.

14

T25070

KEY

- 1/4 x 1/4 x 2"

2шт.

15

F37750

SHAFT - L.H. drive

1шт.

16

195-25

WASHER,3/8"

2шт.

17

F37264

LOCK NUT

GASKET

2шт.

18

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1" N.C. hex.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

19

F37749

WING NUT

PLATE - cover

2шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

17шт.

92-5

LOCK WASHER,5/16"

18шт.

22

FHO45609

PLUG - breather

2шт.

23

138-146

LOCK PIN,1/4" x 3", Slotted

PIN, 1/4" x 3", Slotted

1шт.

24

F37060

SHIM - spacer

1шт.

25

F36433

BUSHING

2шт.

26

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease

2шт.

27

F37316

LOCK NUT

FORK - tail wheel

1шт.

28

FH305565

AXLE

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

30

25-1516

NUT,Jam, 1"-14, G5

- 1"-14 hex. jam

1шт.

31

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

32

FH305581

CLIP

1шт.

33

F60951

WHEEL

- 15" for 6.70 x 15 tire and tube

1шт.

34

F37268

LOCK NUT

HUB

1шт.

35

F37900

X

CUP - bearing

2шт.

36

D29266

ROLLER BEARING,1" ID x 0.58"

BEARING

2шт.

37

F37041

SEAL

2шт.

38

F37059

SPACER - 1-15/16" long

2шт.

39

FHO26146

BOLT - hub

4шт.

40

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.
