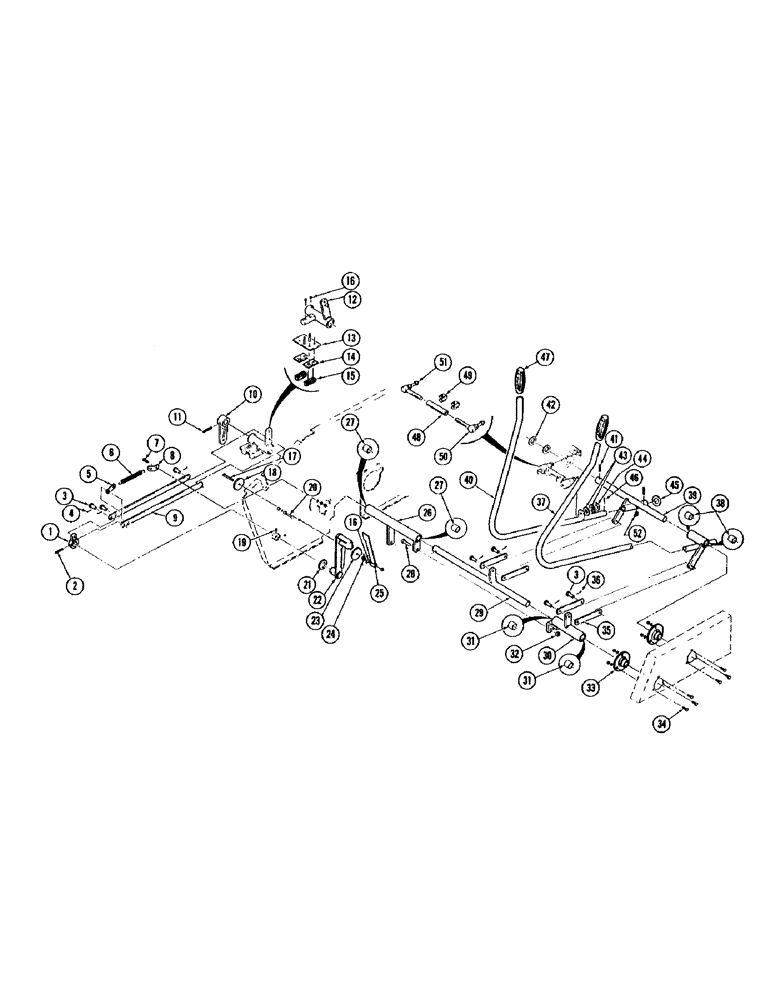

Запчасти Case IH 1075 (022) - STEERING CONTROL (41) - STEERING

1

FH121442

ARM - brake

1шт.

2

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

3

FHO63578

X

PIN - clevis

7шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

3шт.

5

F37114

EAR

1шт.

6

FH758441

SPRING

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

8

FH122705

BRACKET

1шт.

9

F37111

LINK

2шт.

10

F37212

ARM

- steering

1шт.

11

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

12

F37201

SHOE - brake

1шт.

13

F37104

PLATE - brake shoe

1шт.

14

F37049

LINING - flat

2шт.

15

F37105

LINING - V

2шт.

16

131-179

LOCK NUT,3/8"-16, GA

NUT - 3/8" center lock

4шт.

17

F37776

BOLT - 3/8 x 2-1/4" N.C. hex. full thread

1шт.

18

FH382069

WASHER

1шт.

19

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

21

FHO52522

BUSHING - 1-1/8" x 10 ga. mach.

1шт.

22

F37202

PEDAL - brake

1шт.

23

F37107

WASHER

1шт.

24

FH758532

SPRING

1шт.

25

F36713

LATCH

1шт.

26

F37198

TUBE - steering

1шт.

27

F53045

BUSHING

2шт.

28

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

29

F37197

SHAFT

1шт.

30

F37199

TUBE - steering

1шт.

31

F53045

BUSHING

2шт.

32

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

33

B16267

BEARING, BALL

BEARING

2шт.

34

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

92-5

LOCK WASHER,5/16"

6шт.

35

F37069

LINK

4шт.

36

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

37

F37287

LEVER - steering L.H.

1шт.

38

F53045

BUSHING

2шт.

39

F37196

SHAFT

1шт.

40

F37288

SUN VISOR

LEVER - steering R.H.

1шт.

41

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

2шт.

42

195-2096

BUSHING - 1" x 14 ga. mach.

2шт.

43

FHO52233

BUSHING - 5/8" x 14 ga. mach.

2шт.

44

FHO52886

BUSHING

- 1/2" x 14 ga. mach.

1шт.

45

195-2091

WASHER,15/16" x 1 3/8" x .219"

BUSHING - 7/8" x 14 ga. mach.

1шт.

46

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

47

FHO27086

X

GRIP - handle

2шт.

48

F37153

TUBE - coupler

1шт.

49

F37171

CLAMP

2шт.

50

F37172

END - tie rod L.H.

1шт.

51

F37172

END - tie rod R.H.

1шт.

52

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease

1шт.
