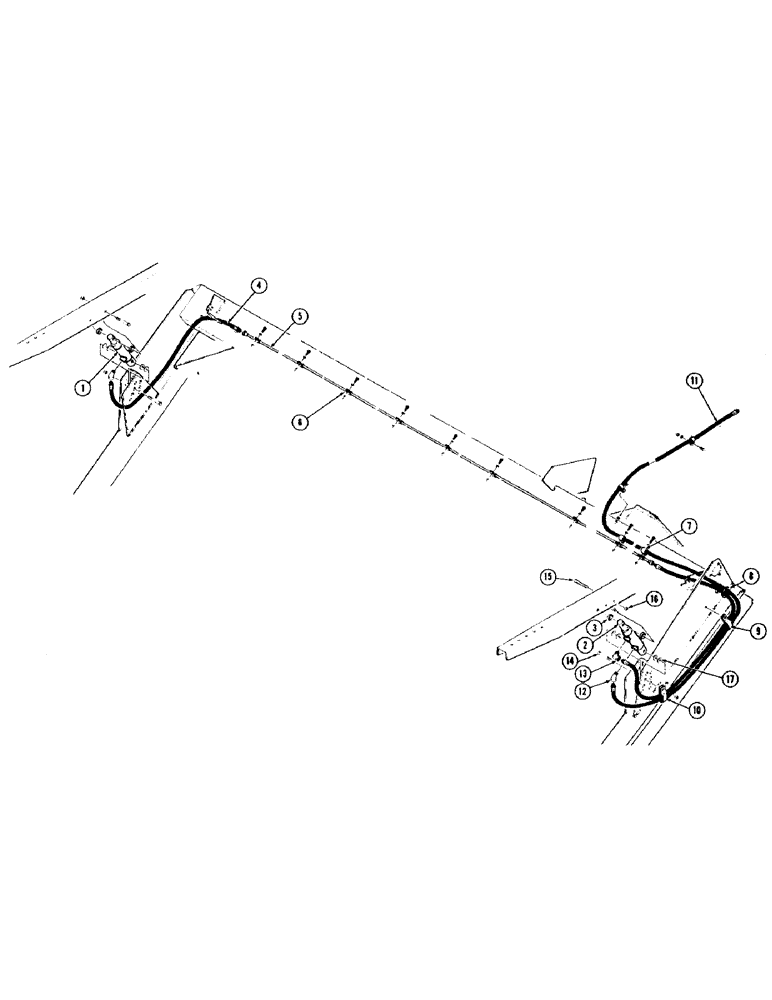

Запчасти Case IH 1075 (074) - REEL LIFT HYDRAULIC, DRAPER HEADER (35) - HYDRAULIC SYSTEMS

1

FH842054

CYLINDER - R.H.

1шт.

2

FH842047

CYLINDER - L.H.

1шт.

3

FH159673

SPACER

4шт.

4

FH842872

HOSE

2шт.

5

F37507

LINE - hydraulic - 10 ft. header

1шт.

F37508

LINE - hydraulic - 12 ft. header

1шт.

F37509

LINE - hydraulic - 14 ft. header

1шт.

6

FH751628

CLAMP - line

5шт.

7

F37620

X

CLAMP - hose

3шт.

8

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

9

FH371591

CLAMP - hose

1шт.

10

FH285957

CLAMP - hose

1шт.

11

F37506

HOSE - 10 ft. header

1шт.

F37621

HOSE - 12 ft. header

1шт.

F37622

HOSE - 14 ft. header

1шт.

12

221-402

ELBOW,45 Degree, 1/4"-27, NPT

FITTING - 1/4" x 45 degree NPTF st. el.

2шт.

13

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - 1/4" x 90 degree NPTF st. el.

1шт.

14

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

15

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

16

FHO74591

NUT - 1/2" stop

4шт.

17

195-533

WASHER,1/2", SAE

- 1/2" flat

1шт.
