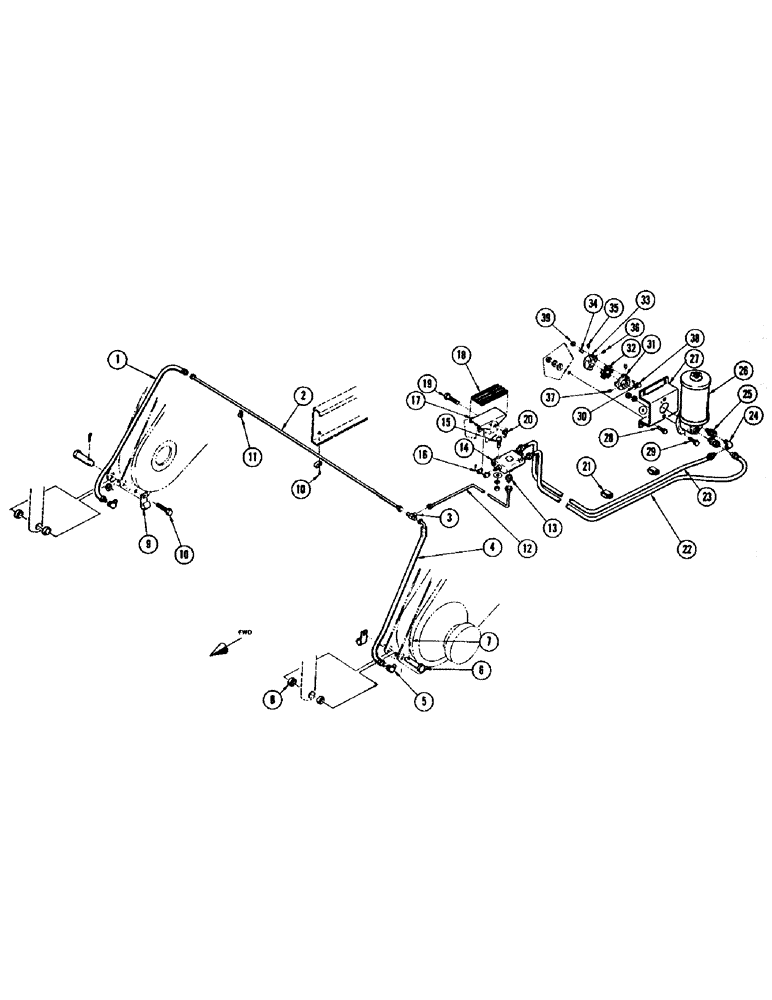

Запчасти Case IH 1075 (006) - HYDRAULICS, AUGER HEADER (35) - HYDRAULIC SYSTEMS

1

F37157

HOSE - 33"

1шт.

2

F37096

LINE - 72"

1шт.

3

218-593

TEE,9/16"-18, 37 Degree

1шт.

4

FH842468

HOSE - 35-1/2"

1шт.

5

221-413

ELBOW,90 Degree, 3/8"-18, NPT

FITTING - EL

2шт.

6

FH763243

PIN - clevis 1" x 4"

2шт.

7

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

8

F37144

BUSHING

4шт.

9

FH756460

CLAMP

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

3шт.

11

FH756478

CLAMP

2шт.

12

F37095

LINE - 6"

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector

1шт.

14

F37155

VALVE - control

1шт.

15

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

25-104

NUT,1/4"-20, G5

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-18

WASHER,1 1/4" x 2 3/4" x .164"

- 1/4" flat

2шт.

16

F94699

CONNECTOR, ELEC

LINK - connecting

1шт.

17

F37185

LOCK NUT

PEDAL

1шт.

18

F37050

PAD

1шт.

19

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- 5/16" x 4" N.C. hex.

1шт.

20

131-173

NUT,5/16"-18, GA

- 5/16" center lock

1шт.

21

FH324921

CLIP

2шт.

22

F37094

HOSE - 50"

1шт.

23

F37174

HOSE - 50"

1шт.

24

221-413

ELBOW,90 Degree, 3/8"-18, NPT

FITTING - El

1шт.

25

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

FITTING - swivel

2шт.

26

F37156

PUMP - hydraulic

1шт.

27

F37277

BRACKET

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

92-6

LOCK WASHER,3/8"

6шт.

195-25

WASHER,3/8"

4шт.

30

A28035

KEY

1шт.

31

FH413054

HALF COUPLING

1шт.

32

FHO86397

SPIDER ASSY.

SPIDER COUPLING

1шт.

33

F37108

HALF COUPLING

1шт.

34

FH761148

KEY

1шт.

35

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" socket hd. set

2шт.

36

85-416

SCREW - 1/4 x 1" sq. hd. set

1шт.

37

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

SCREW - 1/4 x 7/16" socket hd. set

1шт.

38

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

39

113-115

BOLT,Hex, 5/16" - 18 x 6", Gr 5

NUT - 1/4" center lock

1шт.
