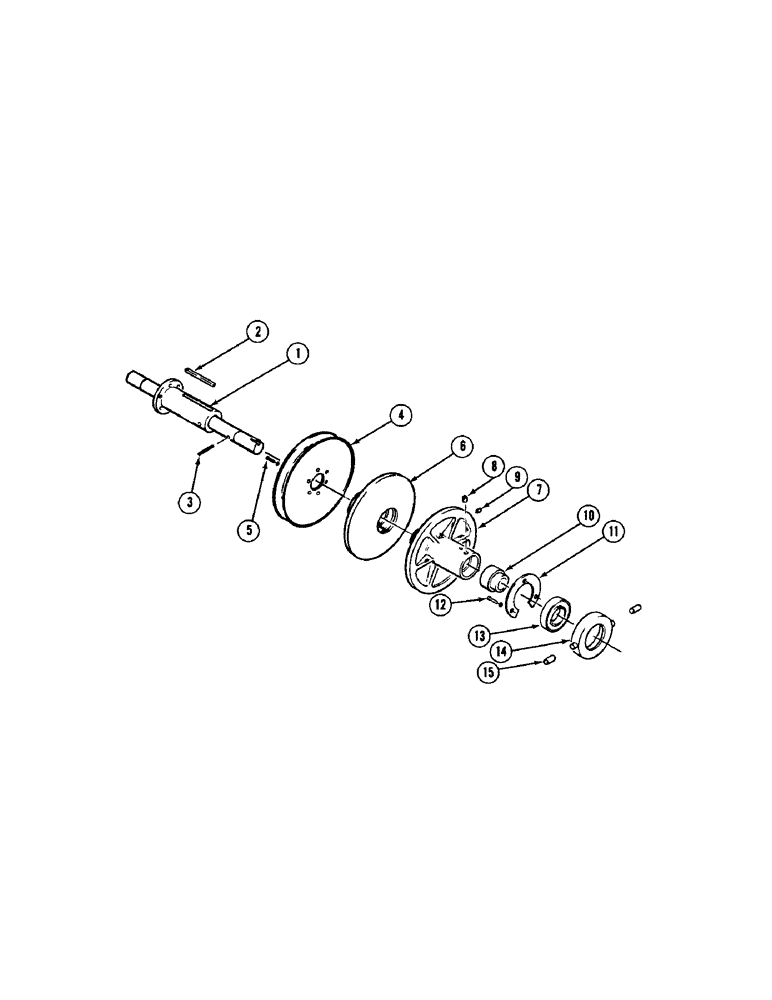

Запчасти Case IH 1075 (026) - VARI-DRIVE (14) - MAIN GEARBOX & DRIVE

1

F37408

HUB ASSEMBLY

1шт.

2

O818B

KEY

1шт.

3

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

4

F37245

SHEAVE

1шт.

5

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

6

F37027

LOCK NUT

SHEAVE - vari-drive

1шт.

7

F37272

LOCK NUT

SHEAVE - half

1шт.

8

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

10

F37761

PLUG

1шт.

11

FH122192

FLANGE

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

13

F37763

BEARING

1шт.

14

F37178

COLLAR

1шт.

15

F37355

PIN

- dowel

2шт.
