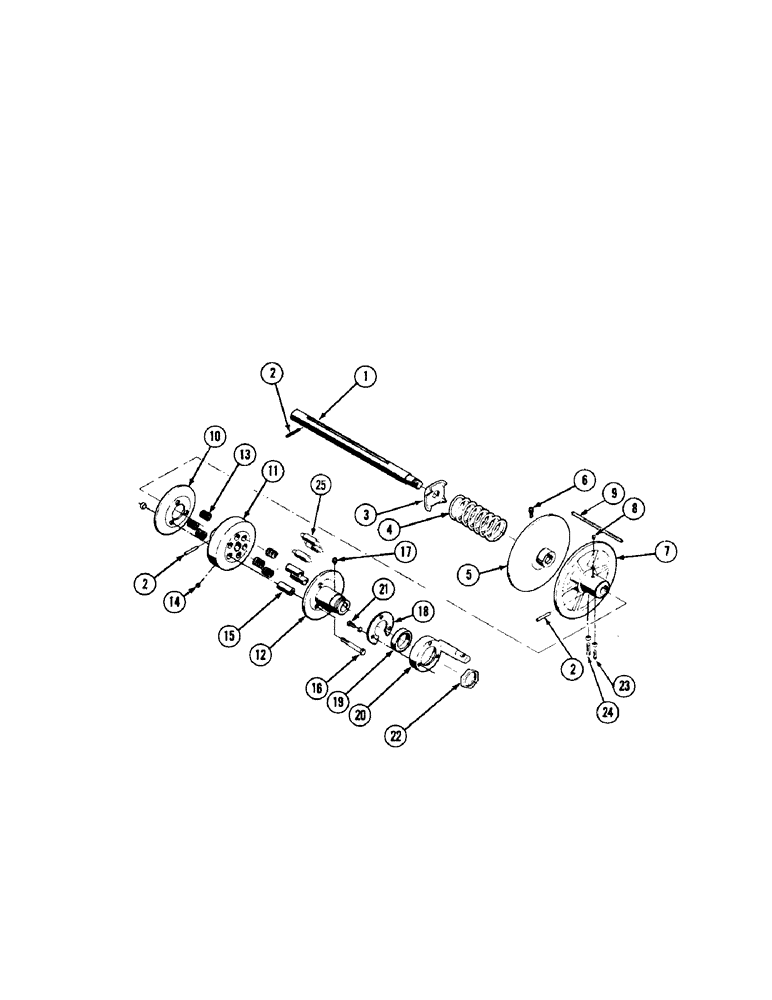

Запчасти Case IH 1075 (026[A]) - FORWARD DRIVE (14) - MAIN GEARBOX & DRIVE

1

F37179

SHAFT

1шт.

2

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

3шт.

3

FH129460

PLATE

- spring retainer

1шт.

4

FHO58453

SPRING

1шт.

5

F2450

HALF SHEAVE - floating

1шт.

6

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .94" lg

1шт.

7

F37269

HALF SHEAVE - stationary

1шт.

8

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

9

F37063

KEY - 1/4 x 1/4 x 10-1/4"

1шт.

10

FH122077

HALF SHEAVE

1шт.

11

FH115600

SHEAVE - center (Before 8375851)

1шт.

11

F38186

SHEAVE - center (8377801 thru 8377830)

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

F38180

KEY - taper 1/4" x 1/4" x 1-39/64" (8377801 thru 8377830)

1шт.

12

F37180

HALF SHEAVE - w/hub

1шт.

13

FHO58131

SPRING

(Before 8375851)

6шт.

13

FHO58842

SPRING (8377801 thru 8377830)

6шт.

14

83-88

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - 1/2 x 1/2" socket hd. set

1шт.

15

FH158675

SPACER (Before 8375851)

3шт.

16

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

3шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex jam

3шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

18

FH122192

FLANGE

1шт.

19

F8025

BEARING

1шт.

20

FH122168

HOUSING - bearing

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

22

FHO66019

NUT

1шт.

23

85-516

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW - 5/16 x 1" N.C. sq. hd. set

1шт.

24

85-520

SCREW - 5/16 x 1-1/4" N.C. sq. hd. set

1шт.

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex. jam

2шт.

25

F38182

PIN (8377801 thru 8377830)

3шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex jam

6шт.
