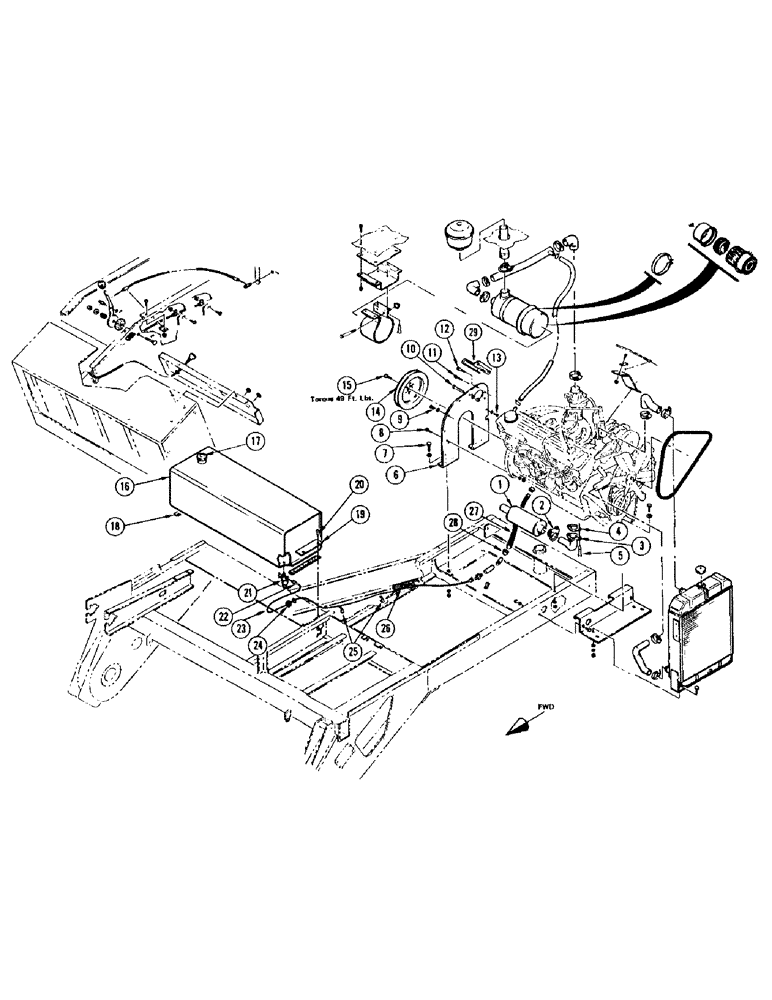

Запчасти Case IH 1075 (036) - ENGINE ACCESSORIES, (CONTD.) (10) - ENGINE

1

F37369

MUFFLER

1шт.

2

R11500

CLAMP

1шт.

3

F37187

LOCK NUT

ELBOW

1шт.

4

F18681

GASKET

1шт.

5

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

6

F37293

MOUNT

1шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

8

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

12

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

14

F37294

SHEAVE

1шт.

15

14-732

CAPSCREW,Hex, 7/16" - 20 x 2", Gr 5

BOLT - 7/16 x 2" N.F. hex.

4шт.

16

F37400

TANK - fuel

1шт.

17

FHO45088

CAP

1шт.

18

FH744904

LINER

2шт.

19

F37120

CLAMP

1шт.

20

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

21

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

A11212

BAIL

1шт.

A11208

GASKET

1шт.

A11211

FILTER SCREEN

SCREEN

1шт.

A11205

VALVE

1шт.

A11214

HEAD

1шт.

A11209

BOWL

1шт.

A11210

ADJUSTER

CUP AND NUT

1шт.

22

FH747089

CONNECTOR

2шт.

23

F37121

LOCK NUT

LINE - fuel

1шт.

24

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

25

F36475

CLIP

3шт.

26

F36480

GROMMET

1шт.

27

F36683

LINE - fuel

1шт.

28

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP

2шт.

29

F38183

SHIELD (8377801 thru 8377830)

1шт.
