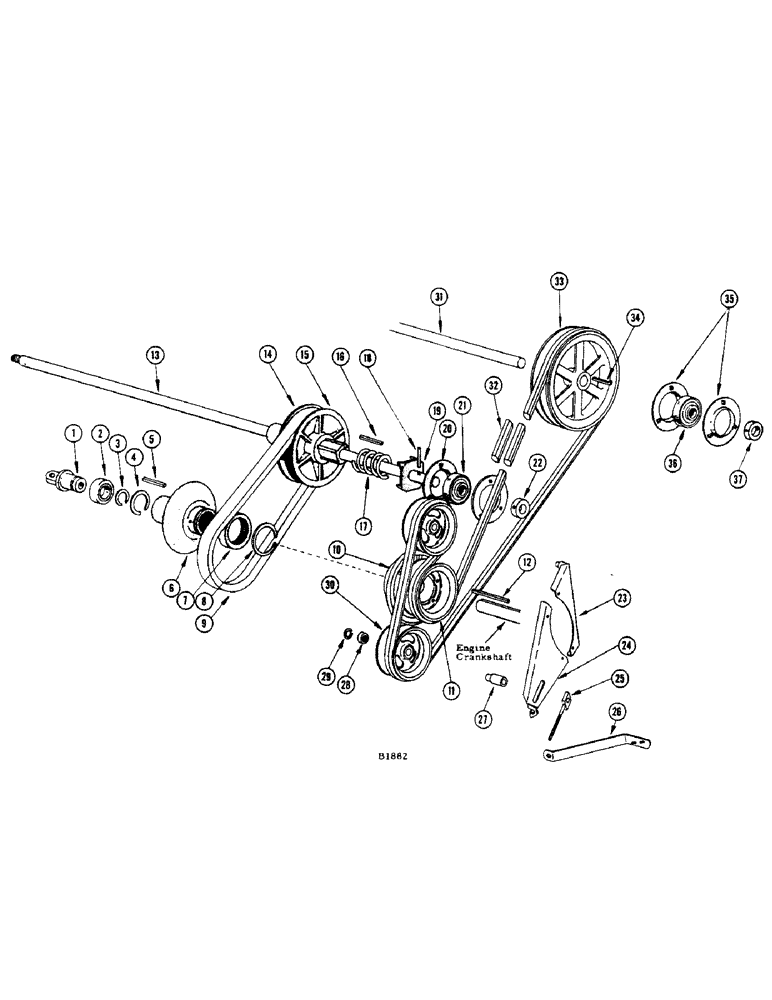

Запчасти Case IH 1050 (14) - VARIABLE DRIVE CONTROL, 1050 WINDROWER, FORWARD AND REVERSE

1

FH247023

SPINDLE - variable drive

1шт.

2

F8025

BEARING

- (Fafnir #208NPP)

1шт.

3

FHO52977

X

SNAP RING

1шт.

4

NLS

NO LONGER SERVICED

3.156", Int, #315

1шт.

5

FHO61689

KEY

1шт.

6

FH247015

SHEAVE - floating half

1шт.

7

FHO51961

BEARING - (Torrington #B5612)

1шт.

8

FHO52910

SNAP RING

1шт.

9

FHO56846

BELT - variable drive

1шт.

10

FH246959

HUB

1шт.

ROLL PIN - 5/16" x 2-3/4" (138-164)

1шт.

11

FH246967

SHEAVE

1шт.

12

FHO61671

KEY

1шт.

13

FH135111

SHAFT - forward drive

1шт.

14

FH246769

SHEAVE - stationary half

1шт.

ROLL PIN - 1/4" x 2-1/4" (138-143)

1шт.

15

FH246777

SHEAVE - floating half

1шт.

ROLL PIN - 1/4" x 2-1/4" (138-143)

1шт.

16

FH156695

KEY

1шт.

17

FHO58453

SPRING

- forward drive shaft

1шт.

18

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

19

FH129460

PLATE

- spring retainer

1шт.

20

O650CB

X

FLANGE

2шт.

21

313CBA

BEARING - (Fafnir #1103KLLB-3)

1шт.

22

O697CB

X

COLLAR

1шт.

23

FH246892

BRACKET - front

1шт.

24

FH246934

BRACKET - rear

1шт.

25

FH247064

DRAW BOLT

1шт.

26

FH269712

BRACE - (V460D engine)

1шт.

27

FH247049

SPACER

1шт.

28

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - (Fafnir #205NPP)

2шт.

29

O2822CK

X

RING - retainer

2шт.

30

FH247031

PULLEY - reverse idler

2шт.

31

FH267963

SHAFT - reverse drive

1шт.

32

FH262600

SET OF BELTS

SET OF 2 BELTS (Matched), Reverse drive

1шт.

33

FH268268

PULLEY - reverse drive

1шт.

34

FHO61416

KEY - gib

1шт.

35

FHO51193

X

FLANGE

4шт.

36

T25346

BEARING ASSY,36.51mm ID x 72mm OD x 22.55mm W

BEARING - (Fafnir #1107KRRB)

2шт.

37

TD4510

COLLAR

1шт.
