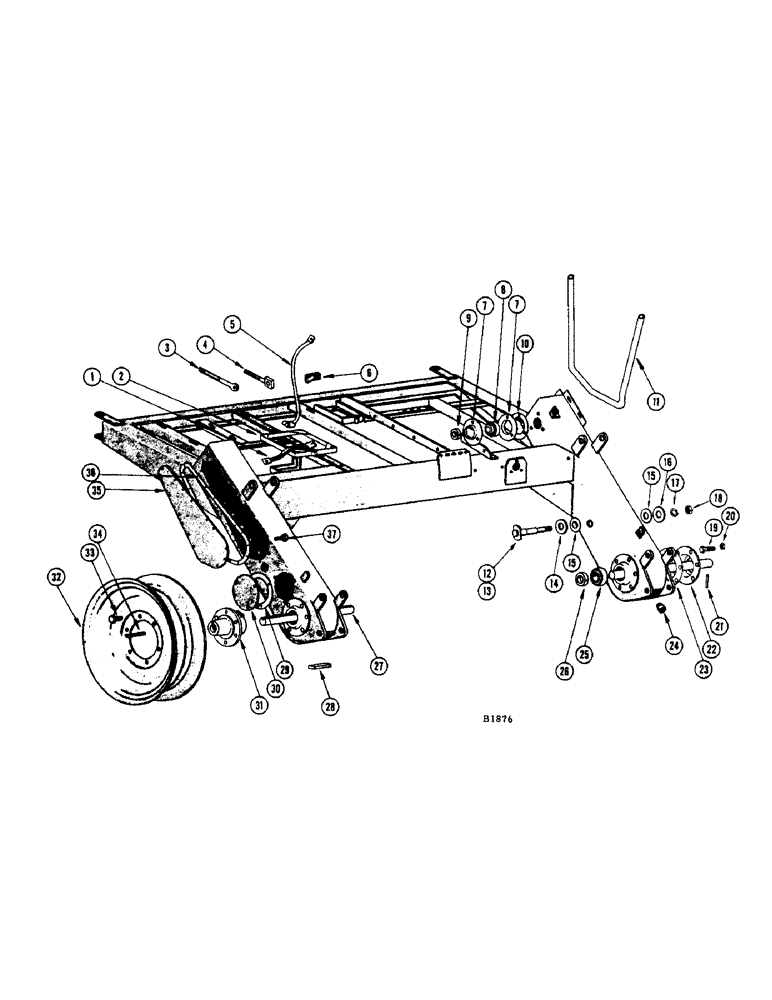

Запчасти Case IH 1050 (04) - MAIN FRAME, CHAIN CASE AND DRIVE WHEELS

1

FHO41707

STRAP - battery

1шт.

2

FHO41616

COVER - battery

1шт.

BOLT - 5/16" x 10" N.C. hex. (13-5160) Nut (129-102) and L.W. (192-20)

2шт.

WASHER - 5/16" pl. (195-521)

4шт.

3

FH113985

DRAWBOLT - (950 Windrower) See FH247254

2шт.

4

FH247254

DRAWBOLT - (1050 Windrower) See FH113985

2шт.

5

FHO41723

CABLE - battery

1шт.

6

FH121723

CLAMP - cable

1шт.

7

O650CB

X

FLANGE

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106) and L.W. (92-6)

6шт.

8

F51085

BEARING

- (Fafnir 1103KRRB-3) R.H. and L.H. shafts

2шт.

9

O697CB

X

COLLAR

1шт.

10

FHO44073

GASKET

2шт.

11

FH268409

STEP

1шт.

12

FH116053

SPINDLE - jackshaft (950 Windrower) See FH252460

2шт.

13

FH252460

SPINDLE - jackshaft (1050 Windrower) See FH116053

2шт.

14

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- flat 1"

2шт.

15

FHO44107

GASKET

4шт.

16

FH161851

WASHER

2шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

18

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

2шт.

19

FHO73049

BOLT - for wheel hub flange

24шт.

20

N4221

WHEEL NUT

- wheel hub flange

24шт.

21

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, , Wheel axle 3/8" x 2", Slotted

2шт.

22

FH241224

FLANGE - wheel hub

4шт.

23

FHO44354

GASKET - wheel hub flange

4шт.

24

FHO46557

X

PLUG - chain case

4шт.

25

FHO50401

BEARING, BALL

BEARING - wheel axle

4шт.

26

F59131

COLLAR

1шт.

27

FH130054

AXLE - wheel

2шт.

28

FHO29207

PLUG - axle

4шт.

29

FHO44289

GASKET - lower cover plate

2шт.

30

FH235515

PLATE - cover, lower chain housing

2шт.

FHO72777

BOLT - lower cover plate

6шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

6шт.

31

F2427

HUB - drive wheel

2шт.

BOLT - 5/8" x 3-1/2" N.F. hex. (14-1056) Nut (25-1110) and L.W. (92-10)

4шт.

32

O9930HT

WHEEL - drive (For 7:50 x 18 tire)

2шт.

33

O4236AB

X

BOLT - wheel

12шт.

34

O4053AB

KEY - axle

2шт.

35

FH236778

PLATE - cover, upper chain housing

2шт.

36

FHO44297

GASKET - upper cover plate

2шт.

37

FHO72777

BOLT - cover plate

26шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

26шт.
