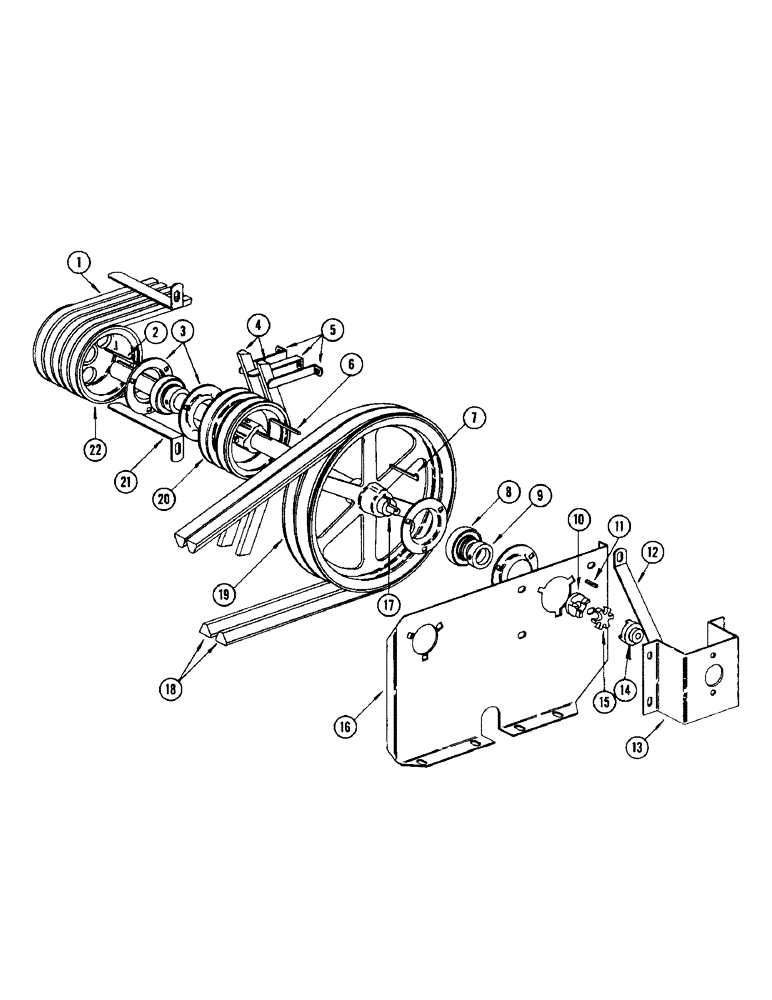

Запчасти Case IH 1050 (28[A]) - HEADER U-JOINT AND REVERSE DRIVE, 1050 WINDROWER

1

FH267633

SET OF BELTS

SET OF 5 BELTS (Matched), Universal joint drive

1шт.

2

FHO61416

KEY - gib

1шт.

3

FHO51193

X

FLANGE

4шт.

4

FHO56325

BELT

- wheel drive

2шт.

5

FH132647

GUIDE - belt

3шт.

6

FH156612

KEY

1шт.

7

FHO61739

KEY

- gib

1шт.

8

T25346

BEARING ASSY,36.51mm ID x 72mm OD x 22.55mm W

BEARING - (Fafnir #1107KRRB)

2шт.

9

TD4510

COLLAR

1шт.

10

FHO47456

COUPLING - hydraulic pump

1шт.

11

O4284CS

X

KEY

2шт.

12

FH269282

BRACE - hydraulic pump

1шт.

13

FH268219

MOUNTING - hydraulic pump

1шт.

14

FHO85167

COUPLING

- hydraulic pump

1шт.

15

FHO85936

SPIDER ASSY.

SPIDER

1шт.

16

FH267930

BRACKET - support

1шт.

17

FH267963

SHAFT - drive

1шт.

18

FH268268

BELT - (Matched set of 2) Reverse drive

1шт.

19

FH268268

PULLEY - reverse drive

1шт.

20

FH268276

PULLEY - vari-steering drive

1шт.

PIN ROLL - 1/4" x 1-3/8" (138-137)

1шт.

21

FH268953

GUIDE - belt

2шт.

22

FH268318

SHEAVE - header drive

1шт.
