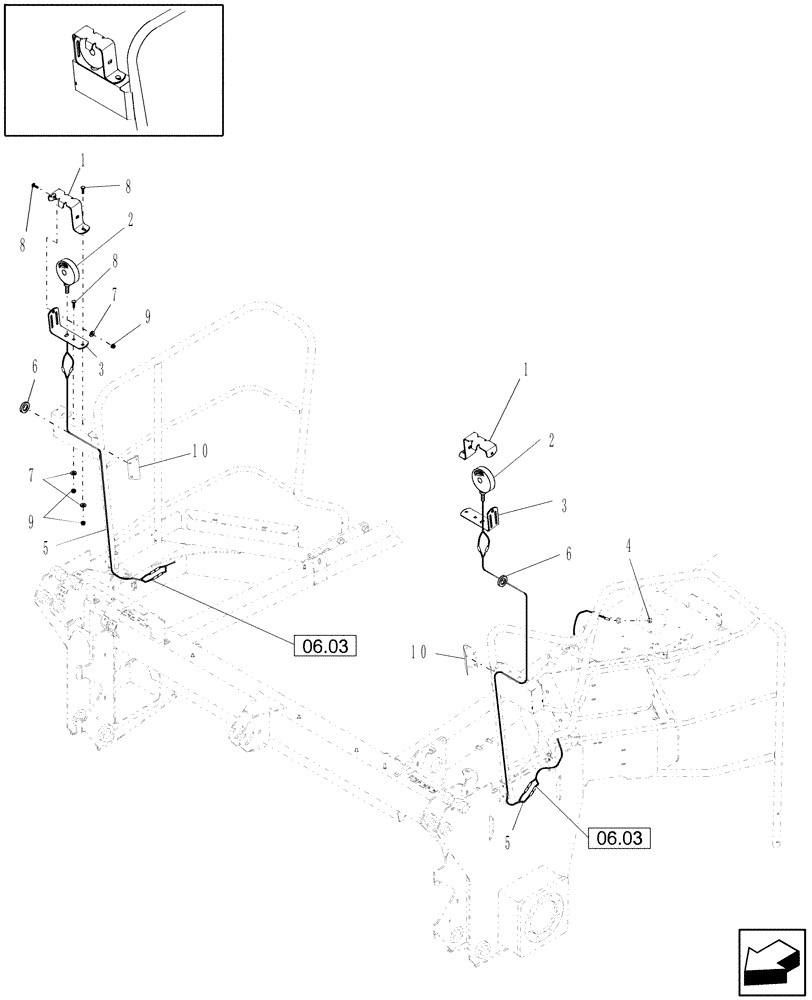

Запчасти Case IH WDX2302 (06.02[01.1]) - FRONT FRAME ELECTRICAL, PRIOR TO 1/01/06 (06) - ELECTRICAL SYSTEMS

1

86623861

BRACKET

2шт.

2

86624454

LAMP

Refer To Component Breakdown, Fig. 06.02[01.2]

2шт.

3

86623858

BRACKET

2шт.

4

82002966

POWER SOCKET,M18 x 1

1шт.

5

87017364

HARNESS

2шт.

6

86534495

GROMMET

2шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

9

425-286

FLANGE NUT,Flg, 3/8"-16, G5

6шт.

10

87059414

ANGLE

2шт.

Only used on early production units

1шт.
