Запчасти Case IH WDX2302 (02.10[1]) - ENGINE MOUNTS & STARTER (02) - ENGINE EQUIPMENT

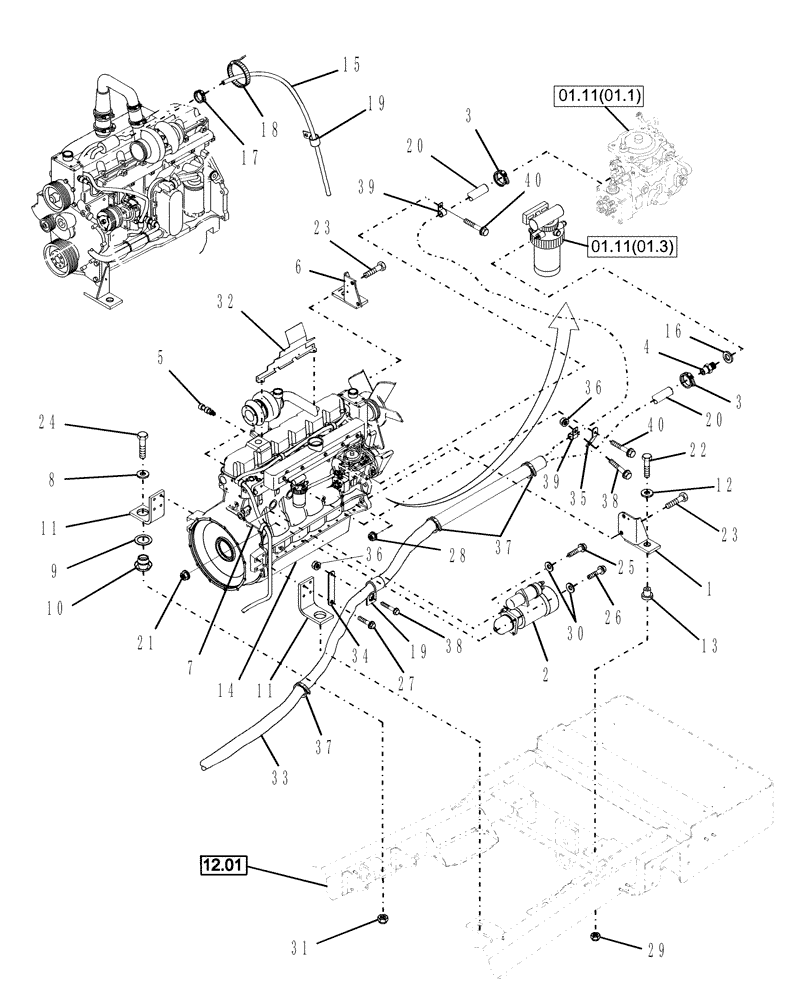

Схема запчастей Case IH WDX2302 - (02.10[1]) - ENGINE MOUNTS & STARTER (02) - ENGINE EQUIPMENT
26
24
15
5
3
40
30
39
23
40
19
38
20
39
25
2
9
22
13
37
36
7
11
27
28
21
4
29
36
17
38
6
33
14
35
12
32
8
19
31
23
10
11
1
18
16
3
37
34
20

Артикул

Название

Примечание

Количество

1

87035872

MOUNTING PARTS

LH

1шт.

2

86628964

STARTER MOTOR

Refer To Component Breakdown, Fig. 01.16

1шт.

2

86628964R

REMAN-STARTER

1шт.

2

86628964C

CORE-STARTER

Return Number

1шт.

3

82012717

HOSE CLAMP,11 x 17mm

2шт.

4

82012598

FITTING

1/2-20

1шт.

5

82028130

PRESSURE SWITCH

Oil Pressure

1шт.

6

86535228

SUPPORT

Mount, RH

1шт.

7

86516805

SOFT TRIM,31-3/4" L

31.75"

1шт.

Cut to fit

1шт.

8

86545287

WASHER,25.9mm ID x 101.6mm OD x 4.8mm thick

25.9mm ID x 101.6mm OD x 4.8mm Thick

2шт.

9

9823910

WASHER

65mm ID. x 95mm OD x 3.5mm Thick

2шт.

10

86550699

INSULATOR

2шт.

11

86543057

SUPPORT

2шт.

12

86545286

WASHER

5/8" ID

2шт.

13

86550698

INSULATOR

2шт.

14

87802848

ENGINE

1шт.

WDX1902

1шт.

See Also: Fig. 01.02[01.1]

1шт.

14

87802848ER

REMAN-REPLACEMENT EN

WDX1902 CASE IH SELF PROPELLED WINDROWER TRACTOR (1/05-8/07)

1шт.

14

87802848EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

14

87802848R

EXCHANGE ENGINE

WDX1902

1шт.

14

87802848C

CORE-ENGINE

Return Number

1шт.

14

87802847

ENGINE

1шт.

WDX2302

1шт.

See Also: Fig. 01.02[01.1]

1шт.

15

NS

NOT SERVICED

1" ID Hose, 4' Long

1шт.

16

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

17

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

18

594116

CABLE TIE,5/16" W x 21.5" L

CABLE STRAP Plastic

1шт.

19

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

20

86561591

FLEXIBLE HOSE

8' Long

1шт.

Cut to fit

1шт.

21

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

23

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

24

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

2шт.

25

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

26

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

Cap, Flg Hd, G5, 3/8"-16 x 1-3/4"

1шт.

27

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

28

86534279

FLANGE NUT,Flg, 3/4"-10, G8

4шт.

29

232-41410

LOCK NUT,5/8"-11, GC

2шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

31

280286

NUT,1"-8, GB

2шт.

32

87052757

SHIELD

1шт.

33

87380799

CONDUIT

1шт.

Sold By The Foot; Four Foot Length Required

1шт.

34

87380489

GASKET

Flat

1шт.

35

87379715

BRACKET

1шт.

36

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

37

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

38

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

39

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

40

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

Выбрано товаров: 54
