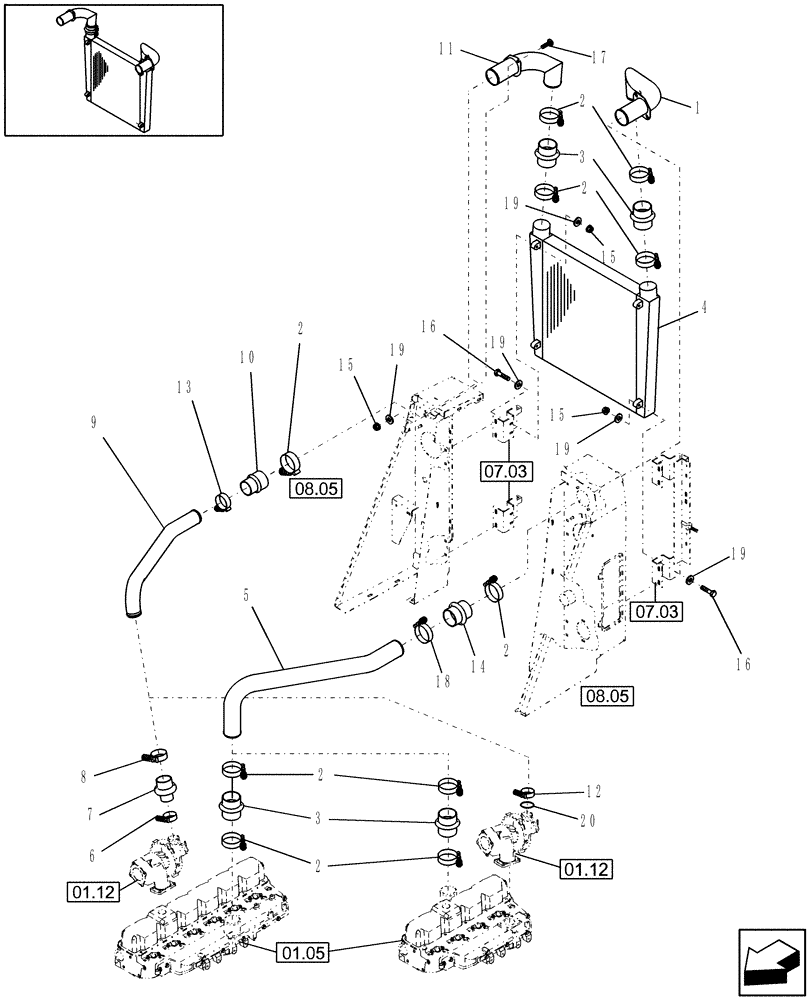

Запчасти Case IH WDX2302 (02.07) - INTERCOOLER (02) - ENGINE EQUIPMENT

1

86623913

TUBE,76.20 mm OD x 238.6, 156.1 mm L

1шт.

2

87041091

HOSE CLAMP,3.06" - 3.37"

1шт.

3

86623661

FLEXIBLE HOSE,76.20 mm ID x 110.00 mm, SAE J20 Class A

4шт.

4

87039232

AFTERCOOLER

1шт.

5

86623907

TUBE,76.20 mm OD x 650.1, 256.9 mm L

1шт.

WDX1902 & WDX2302 Only

1шт.

5

87031831

TUBE

1шт.

WDX1002S, WDX1202S, & WDX1202

1шт.

6

86014158

HOSE CLIP

1шт.

7

9848337

HOSE,50.8 mm ID, 63.50 mm ID x 101.60 mm

1шт.

8

86014159

HOSE CLIP

1шт.

9

87031813

TUBE,63.5 - 76.2 mm OD x 754.3, 130 mm L

1шт.

WDX1902 & WDX2302 Only

1шт.

9

86638694

TUBE,76.20 mm OD

1шт.

WDX1002S, WDX1202S, & WDX1202

1шт.

10

86623661

FLEXIBLE HOSE,76.20 mm ID x 110.00 mm, SAE J20 Class A

1шт.

11

86623912

TUBE,76.20 mm OD x 238.6, 156.1 mm L

1шт.

12

87027990

CLAMP

V-Insert

1шт.

WDX1002S, WDX1202S, & WDX1202

1шт.

13

87041091

HOSE CLAMP,3.06" - 3.37"

1шт.

14

86623661

FLEXIBLE HOSE,76.20 mm ID x 110.00 mm, SAE J20 Class A

1шт.

WDX1902 & WDX2302 Only

1шт.

14

86016685

HOSE,76.20 mm ID, 63.50 mm ID x 101.60 mm

1шт.

WDX1002S, WDX1202S, & WDX1202

1шт.

15

425-285

FLANGE NUT,Flg, 5/16"-18, G5

8шт.

16

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

17

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

18

87041091

HOSE CLAMP,3.06" - 3.37"

1шт.

WDX1902 & WDX2302 Only

1шт.

18

86014159

HOSE CLIP

1шт.

WDX1002S, WDX1202S, & WDX1202

1шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

20

14459081

O-RING,1.737" ID x 0.103" Width

1шт.
