Запчасти Case IH WDX2302 (02.05[01.1]) - AIR INTAKE & EXHAUST SYSTEM (02) - ENGINE EQUIPMENT

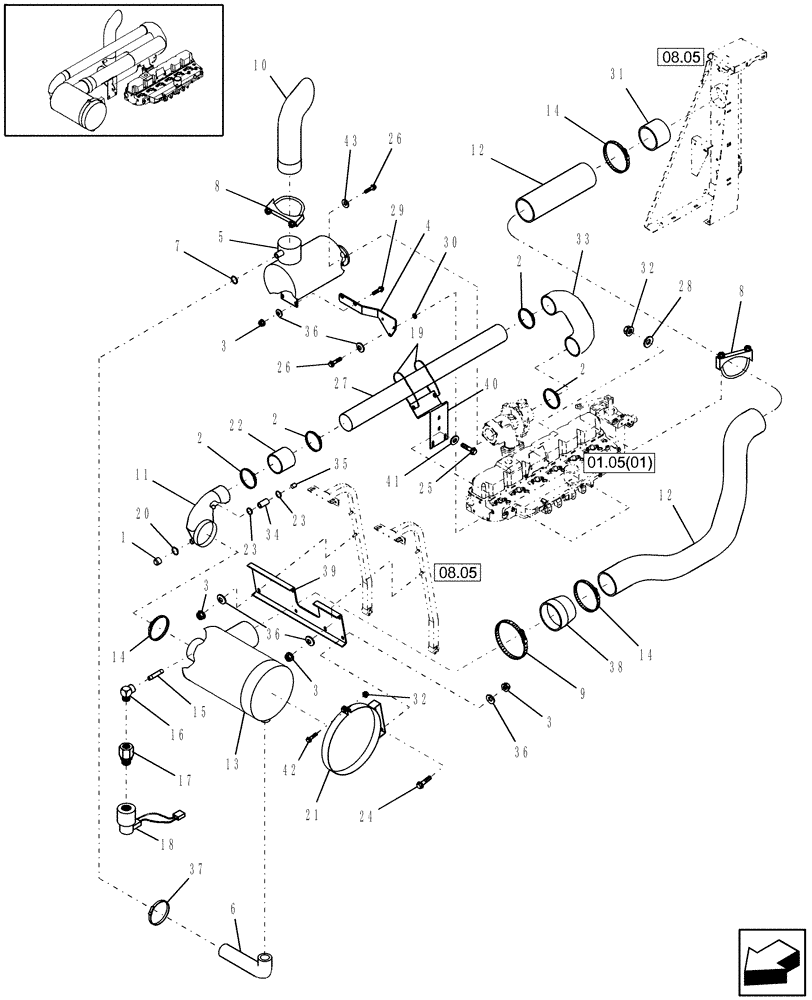

Схема запчастей Case IH WDX2302 - (02.05[01.1]) - AIR INTAKE & EXHAUST SYSTEM (02) - ENGINE EQUIPMENT
21
33
26
5
12
2
3
13
3
29
12
40
14
4
24
26
22
2
41
1
36
16
3
6
17
8
32
14
39
28
34
11
19
14
3
36
32
20
10
25
42
18
27
43
38
31
36
9
35
2
23
23
2
37
30
8
15
7

Артикул

Название

Примечание

Количество

1

82023635

PLUG

Component Of Ref. 11

1шт.

2

337049

CLAMP,137mm - 150mm

4шт.

3

425-286

FLANGE NUT,Flg, 3/8"-16, G5

10шт.

4

87036308

SUPPORT

1шт.

5

87039833

MUFFLER

1шт.

6

87043855

HOSE,38.10 mm ID, 50.8 mm ID x 1300.00 mm, SAE 20R4

1шт.

7

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

8

86534869

CLAMP

2шт.

9

858672

CLAMP

1шт.

10

87041235

EXHAUST SYSTEM PIPE

1шт.

11

87738654

INTAKE AIR HOSE,101.60 mm ID x 246.00 mm, SAE J200

, Years: -01-FEB-10

1шт.

11

84246412

INTAKE AIR HOSE,101.60 mm ID, 127.00 mm ID x 246.00 mm, SAE J200

Includes Spring, Start Year: 01-MAR-10, Start Serial: YAG662995

1шт.

11a

84245654

SPRING

1шт.

This Spring Can also be added to Original Hose 87738654

1шт.

12

87044397

TUBE,127 mm OD

1шт.

13

86642966

AIR CLEANER

Refer to Component Breakdown, Fig. 02.05[01.2]

1шт.

14

337049

CLAMP,137mm - 150mm

3шт.

15

87033018

PIPE FITTING

1шт.

16

86511898

ELBOW

90°, Street, Brass

1шт.

17

87033015

FITTING

Adapter

1шт.

18

86837855

RESTRICTION SWITCH

AC Vacuum

1шт.

19

527350

STRAP

2шт.

20

13387570

HOSE CLAMP

Component Of Ref. 11

1шт.

21

87042086

CLAMP,330mm ID

2шт.

22

87031908

HYD CONNECTOR

1шт.

23

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

24

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

25

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

7шт.

27

87043866

TUBE,101.60 mm OD x 865 mm L

1шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

29

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

30

86620024

WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk

3шт.

31

87044404

SPACER

1шт.

32

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

33

87043867

HOSE,101.60 mm ID x 260.30 mm, SAE J200

1шт.

34

87031959

HOSE,19.05 mm ID x 60.00 mm, SAE 20R3 Class D2

1шт.

35

87031960

PLUG

1шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

13шт.

37

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

38

87043880

HOSE,125.7 mm ID, 151.1 mm ID"SAE J200

1шт.

39

87031703

CHANNEL

1шт.

40

87031919

SUPPORT ASSY.

1шт.

41

495-21038

WASHER,5/16"

2шт.

42

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

43

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

Hardened, 13/32"

4шт.
