Запчасти Case IH WDX2302 (02.04[1]) - RADIATOR (02) - ENGINE EQUIPMENT

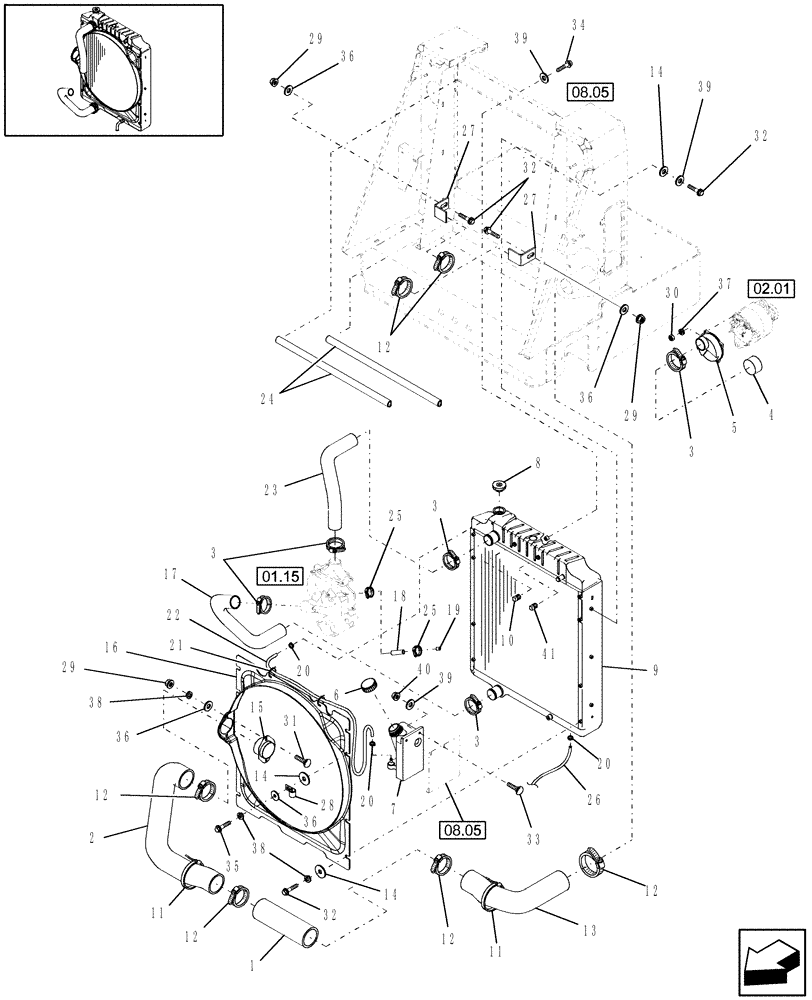

Схема запчастей Case IH WDX2302 - (02.04[1]) - RADIATOR (02) - ENGINE EQUIPMENT
40
11
13
10
25
7
28
29
12
8
3
36
32
32
32
26
12
39
35
39
36
27
12
14
18
20
24
33
25
12
12
39
15
3
2
20
19
3
16
6
21
17
20
38
37
29
29
36
34
30
1
14
9
36
38
4
27
5
23
14
22
31
11
3
41

Артикул

Название

Примечание

Количество

1

87044248

TUBE,76.20 mm OD x 410 mm L

1шт.

2

87044246

HOSE,76.20 mm ID x 407.80 mm, SAE J20R4 CLASS D1

1шт.

3

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

5шт.

4

86976068

COVER

Screen, Alternator

1шт.

5

86976072

COVER

1шт.

6

86507190

CAP

1шт.

7

86509554

TANK

1шт.

8

3957211

RADIATOR CAP

1шт.

9

87039860

RADIATOR

1шт.

10

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

Early Production Only

1шт.

11

527350

STRAP

2шт.

12

82012731

HOSE CLAMP,77mm - 95mm, Worm Gear

Hose Retaining, 2-13/16"

2шт.

13

87044249

HOSE,76.20 mm ID x 249.20 mm, SAE J20R4 CLASS D1

1шт.

14

9846522

WASHER

M8, Fender

14шт.

15

86599338

TUBE

1шт.

16

87050651

SHROUD

1шт.

17

86623959

RADIATOR HOSE,50.80 mm ID x 309.8, 162.7, 202.3 mm, SAE 20 R4 CLASS D1

Lower

1шт.

18

87031959

HOSE,19.05 mm ID x 60.00 mm, SAE 20R3 Class D2

1шт.

19

87031960

PLUG

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

3шт.

21

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

22

690681

HOSE,7.94mm ID x 3352.8mm L, SAE 30R7

4шт.

23

86623958

RADIATOR HOSE,50.80 mm ID x 261, 97.4, 146.2 mm, SAE 20R4 CLASS D1

Upper

1шт.

24

87023973

SEAL

5' Long

1шт.

Cut to fit

1шт.

25

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

26

86520362

FLEXIBLE HOSE,0.38" ID x 60.00", SAE 30R7

1шт.

Cut to fit

1шт.

27

87044247

ANGLE

2шт.

28

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

29

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

30

829-1405

NUT,M5, Cl 10

4шт.

31

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

32

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

15шт.

33

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

34

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

35

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

495-21038

WASHER,5/16"

4шт.

37

492-11010

LOCK WASHER,#10

4шт.

38

492-11031

LOCK WASHER,5/16"

10шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

40

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

41

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1шт.

Early Production Only

1шт.

Выбрано товаров: 45
