Запчасти Case IH WDX2302 (02.02[01.3]) - AC COMPRESSOR & SHIELDING (02) - ENGINE EQUIPMENT

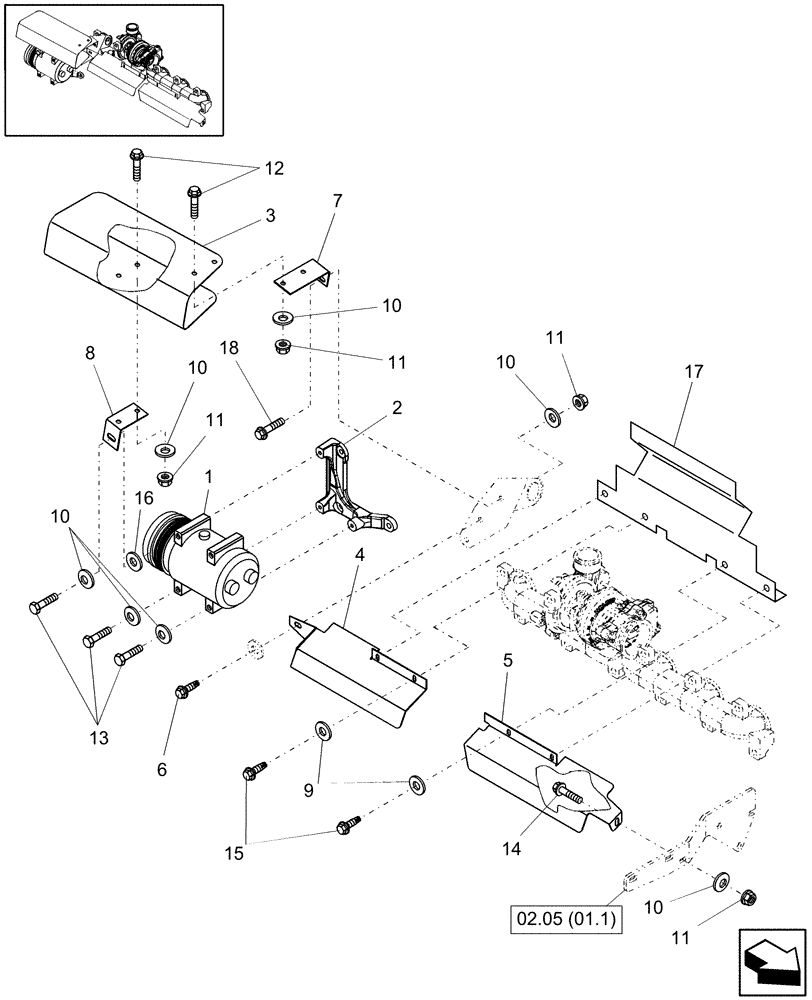

Схема запчастей Case IH WDX2302 - (02.02[01.3]) - AC COMPRESSOR & SHIELDING (02) - ENGINE EQUIPMENT
6
1
14
7
2
10
3
8
10
18
4
13
10
11
02.05 (01.1)
11
10
5
12
16
9
17
10
11
15
11

Артикул

Название

Примечание

Количество

1

87037134

COMPRESSOR

Includes: Clutch, Compressor, & O-Rings

1шт.

Prior To 11/06

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1902 (1/05-8/07), WDX2302 (1/05-), Reman for New PN 87037134

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

1

87307841

OIL

Compressor

1шт.

Prior To 11/06

1шт.

1

87363860

AIRCOND. COMPRESSOR

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1902 (1/05-8/07), WDX2302 (1/05-), Reman for New PN 87363860

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

From 11/06

1шт.

1

87028237

OIL

Compressor

1шт.

From 11/06

1шт.

1

87058852

CLUTCH

1шт.

Services 87037134

1шт.

1

87058853

AIRCOND. COMPRESSOR

Less Clutch

1шт.

Services 87037134

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1902 (91/05-8/07), WDX2302 (1/05-), Reman for New PN 87058853

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

1

87368248

O-RING,21.8mm ID x 2.4mm Width

2шт.

Services 87037134

1шт.

2

87052737

SUPPORT ASSY.

1шт.

3

87050435

DEFLECTOR

1шт.

4

87044232

SHIELD

Heat, Rear

1шт.

5

87044231

SHIELD

Heat, Front

1шт.

6

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

7

87050437

ANGLE

1шт.

8

87050436

ANGLE

1шт.

Prior To 11/06

1шт.

8

87541825

ANGLE

1шт.

From 11/06

1шт.

9

495-21031

WASHER,1/4"

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

11

425-285

FLANGE NUT,Flg, 5/16"-18, G5

6шт.

12

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

13

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

3шт.

14

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

15

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

4шт.

16

495-21038

WASHER,5/16"

1шт.

Prior To 11/06

1шт.

16

577826

WASHER

1шт.

From 11/06

1шт.

17

87052757

SHIELD

1шт.

18

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

Выбрано товаров: 43
