Запчасти Case IH WDX2302 (02.02[01.2]) - AC COMPRESSOR & DRIVE, FROM PIN HCA043144 (WDX1902) & HCA0036117 (WDX2302) (02) - ENGINE EQUIPMENT

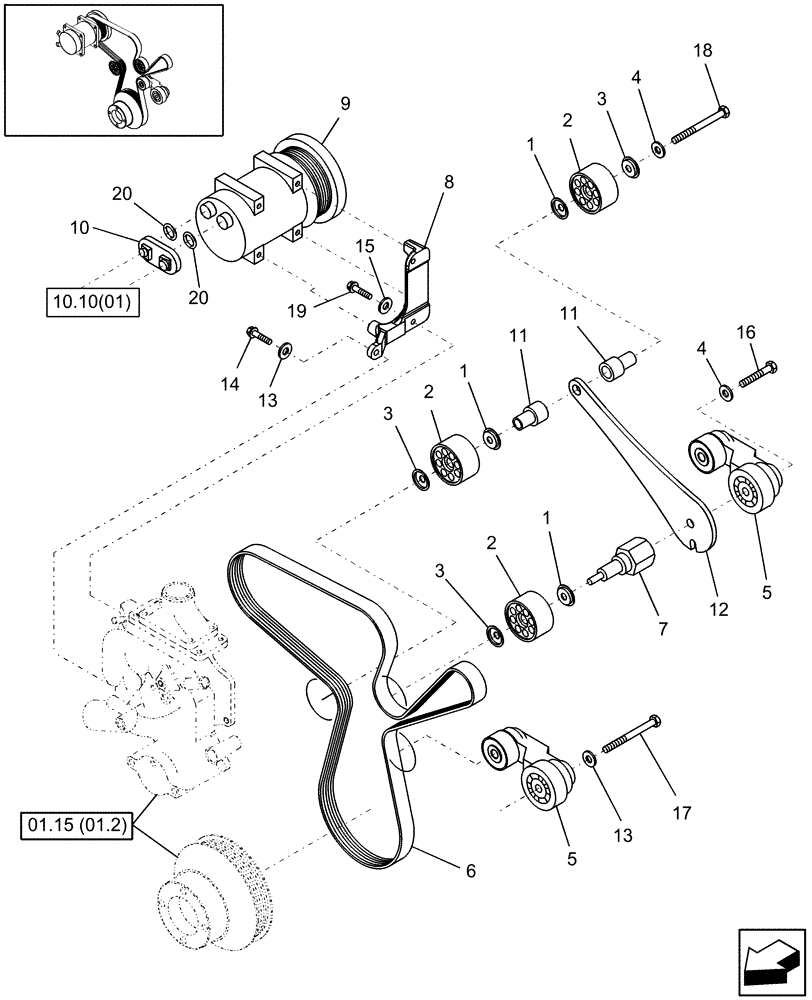

Схема запчастей Case IH WDX2302 - (02.02[01.2]) - AC COMPRESSOR & DRIVE, FROM PIN HCA043144 (WDX1902) & HCA0036117 (WDX2302) (02) - ENGINE EQUIPMENT
6
20
3
10
1
18
3
13
10.10(01)
01.15 (01.2)
5
1
5
8
20
7
3
16
9
2
4
13
17
4
19
11
11
15
2
14
2
1
12

Артикул

Название

Примечание

Количество

1

87840420

COVER

Dust, Outer

3шт.

2

87840244

PULLEY,74mm OD

3шт.

3

87840523

COVER

Dust, Inner

3шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

5

87053620

TENSIONER

2шт.

6

87359824

V-BELT,29.97 mm W x 2259.00 mm L, 8 Ribs

1шт.

Prior To 11/06

1шт.

6

87559043

V-BELT,28.48mm W x 2240mm, 8 Ribs

1шт.

From 11/06

1шт.

7

87044605

SPECIAL BOLT

1шт.

8

87052737

SUPPORT ASSY.

1шт.

9

87037134

COMPRESSOR

1шт.

Prior To 11/06

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1902 (1/05-8/07), WDX2302 (1/05-) both FROM PIN HCA043144 (WDX1902) & HCA0036117 (WDX2302) , Reman for New PN 87037134

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

9

87307841

OIL

Compressor

1шт.

Prior To 11/06

1шт.

9

87363860

AIRCOND. COMPRESSOR

1шт.

From 11/06

1шт.

87649534R

REMAN-A/C COMPRESSOR

WDX1902 (1/05-8/07), WDX2302 (1/05-) both SP WINDROWER/TRACTOR (RED), FROM PIN Y6B410017 (HW345) & Y6B39013 (HW365), Reman for new P/N 87363860

1шт.

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

9

87028237

OIL

Compressor

1шт.

From 11/06

1шт.

10

87017228

MANIFOLD

1шт.

Prior To 11/06

1шт.

11

87052996

HUB

2шт.

12

87044604

SUPPORT

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

14

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

120074

BOLT,Hex, M10 x 90, 8.8

1шт.

17

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

18

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

1шт.

19

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

20

87368248

O-RING,21.8mm ID x 2.4mm Width

2шт.

Выбрано товаров: 35
