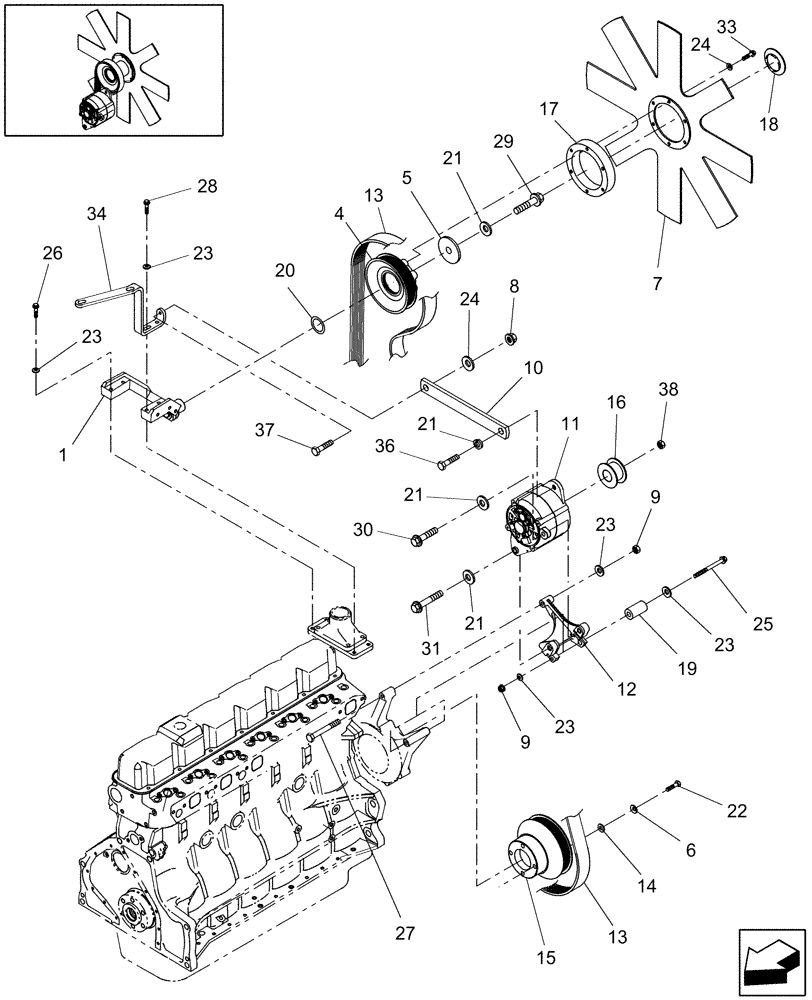

Запчасти Case IH WDX2302 (02.01[2]) - FAN & DRIVE, FROM PIN HCA043144 (WDX1902) & HCA0036117 (WDX2302) (02) - ENGINE EQUIPMENT

1

86635180

BRACKET

1шт.

2

No Longer Used

1шт.

3

No Longer Used

1шт.

4

87745156

KIT

Sheave With Integral Bearing, See Figure Note

1шт.

Components Not sold separately

1шт.

5

87027221

WASHER

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

7

87033606

FAN

1шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

9

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

10

87347662

BRACE

1шт.

11

9833744

ALTERNATOR

1шт.

12

87011018

BRACKET

1шт.

13

87347456

V-BELT,21.36 mm W x 1488.00 mm L, 6 Ribs

1шт.

14

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

15

86623727

SHEAVE

1шт.

16

86976071

PULLEY,66mm OD

1шт.

17

87033580

ADAPTER

1шт.

18

88224

PLUG

1шт.

19

87052229

SPACER

1шт.

20

87052698

SHIM

2/ARшт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

22

86642437

BOLT

4шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

25

88812

BOLT,Hex, 5/16" - 18 x 5 1/2", Gr 5

1шт.

26

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

27

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

28

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

29

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

30

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1шт.

31

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

32

Reference Not Used

1шт.

33

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

6шт.

34

87347672

SUPPORT

3шт.

35

Reference Not Used

1шт.

36

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

37

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

38

NSS

NOT SOLD SEPARAT

Nut, 5/8"-18 UNF; Component Of Ref. 11

1шт.
