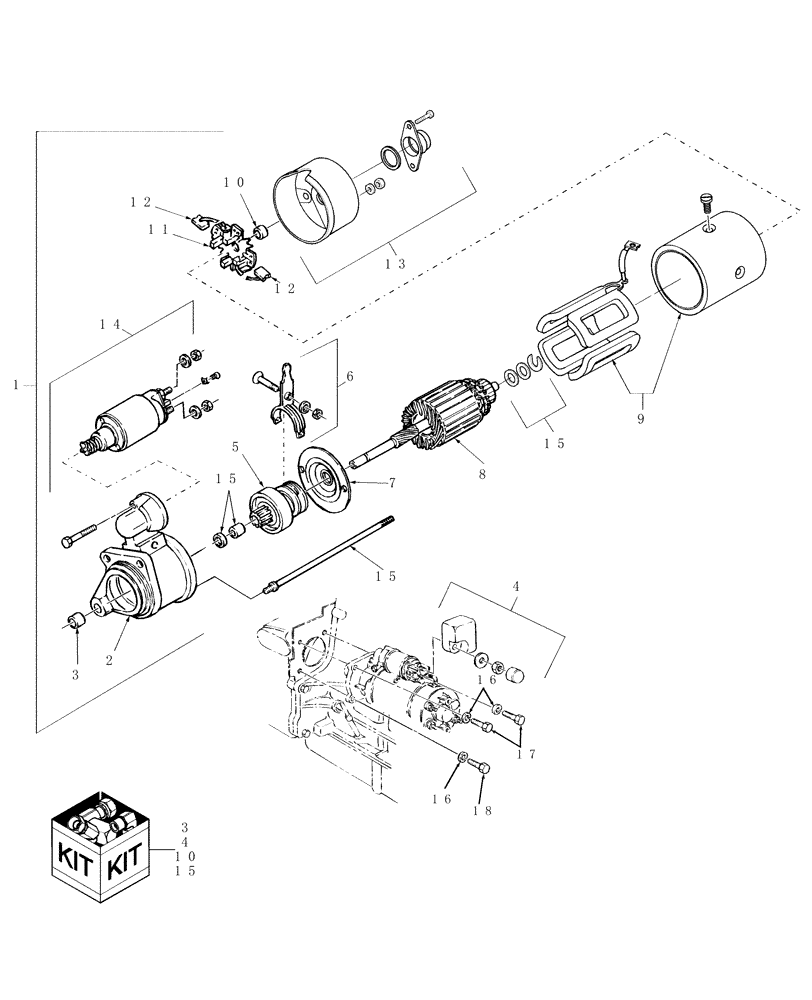

Запчасти Case IH WDX2302 (01.16[01]) - STARTER MOTOR DRIVE & RELAY ASSEMBLY (01) - ENGINE

1

86628964

STARTER MOTOR

3.6 KW Includes: Ref. 2 - 15 (ISKRA)

1шт.

1

86628964R

REMAN-STARTER

3.6 KW Iskra

1шт.

1

86628964C

CORE-STARTER

Return Number

1шт.

2

82012418

HOUSING

1шт.

3

82012435

KIT

Bushing

1шт.

4

82012426

KIT

Cover/Solenoid Seal

1шт.

5

82012416

SHAFT

Drive

1шт.

6

82012422

LEVER

Lever, Driver

1шт.

7

82012420

PLATE

Center Bearing

1шт.

8

82012417

ARMATURE

1шт.

9

82012423

COIL

Coil

1шт.

10

82012425

BUSHING

Bushing

1шт.

11

82012432

SUPPORT

Brush

1шт.

12

82012431

COMMUTATOR BRUSH

1шт.

13

82012434

PLATE

Brush End

1шт.

14

82012433

SOLENOID

1шт.

15

82012427

KIT

Bushings & Hardware

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

17

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

18

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

Flg Hd, G5, 3/8"-16 x 1-3/4"

1шт.
