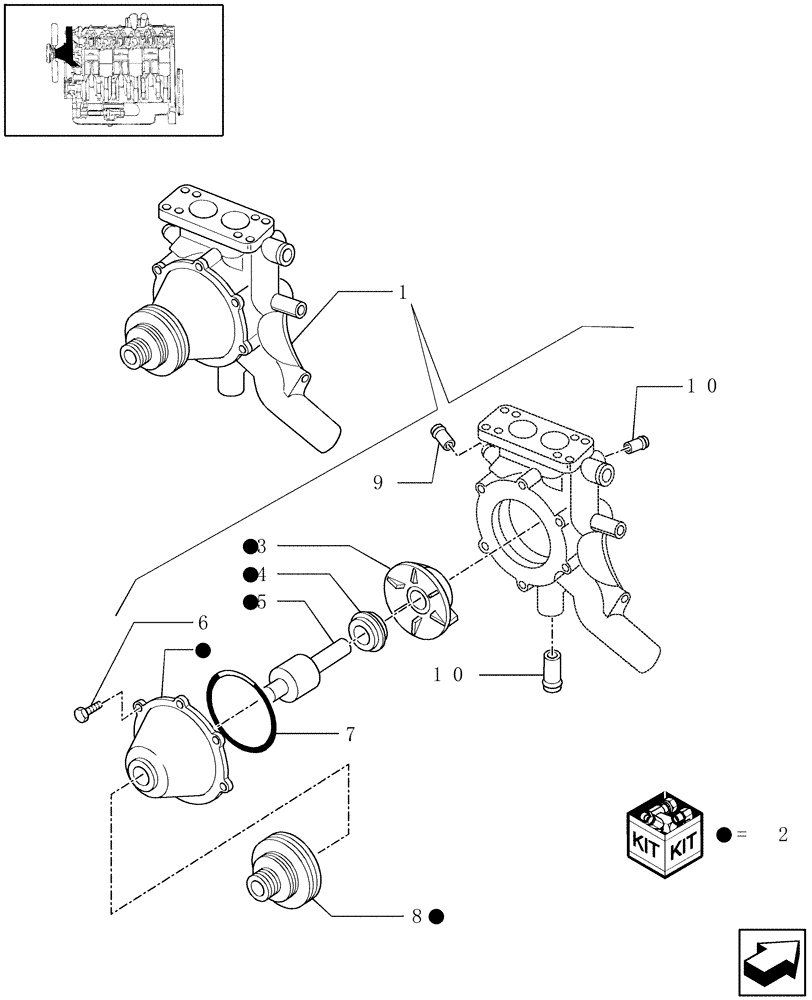

Запчасти Case IH WDX2302 (01.15[01.2]) - WATER PUMP (01) - ENGINE

1

87802490

WATER PUMP

1шт.

1

87384586R

REMAN-WATER PUMP

1шт.

1

87384586C

CORE-WATER PUMP

Return Number

1шт.

2

87802496

KIT, WATER PUMP REPA

1шт.

2

87384588R

REMAN-WATER PUMP

WDX1902 (1/05-8/07), WDX2302 (1/05-) BOTH CASE IH SELF PROPELLED WINDROWER TRACTOR, Reman for New P/N 87802496

1шт.

2

87384588C

CORE-WATER PUMP

Return Number

1шт.

3

87802499

IMPELLER

1шт.

4

E9HN8A559AA

SEAL,15.88mm ID x 53.34mm OD x 21.84mm Thk

1шт.

5

E5HN8530BA

BEARING ASSY,47.63mm OD x 136.6mm L

1шт.

6

16287221

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

87802661

GASKET

1шт.

8

87802498

PULLEY

1шт.

9

87840365

TUBE,20 mm OD x 50 mm L

1шт.

10

87841218

TUBE,1" OD x 2.12" L

2шт.
