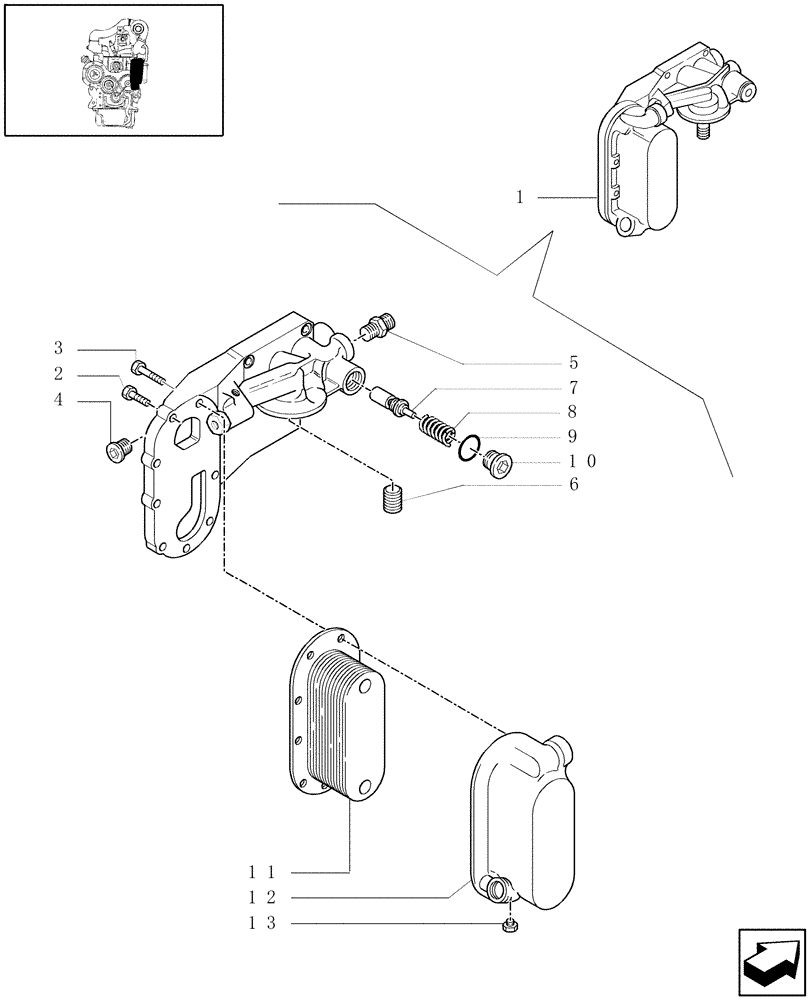

Запчасти Case IH WDX2302 (01.14[01.2]) - CRANKCASE OIL COOLER (01) - ENGINE

1

87802763

OIL COOLER

1шт.

2

83958603

FLANGE BOLT,Hex, 3/8" - 16 x 1 3/4"

Cap, Flg Hd, G5, 3/8"-16 x 1-3/4"

7шт.

3

86977730

SERRATED SCREW,3/8" - 16 x 2 1/2"

Cap, Flg Hd, USR, 3/8"-16 x 2-1/2"

2шт.

4

87840S36

PLUG

3шт.

5

F2NN6A863AA

HYD CONNECTOR

1шт.

6

E5HN6890AA

INSERT

1шт.

7

81876837

VALVE PRESSURE RELIE

1шт.

8

81876836

SPRING

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

E0NNF947DA

PLUG,1 1/16"-12 SAE

1шт.

11

E9HN6A640AA

OIL COOLER

1шт.

12

87802758

COVER

1шт.

13

88071

PLUG

1шт.
