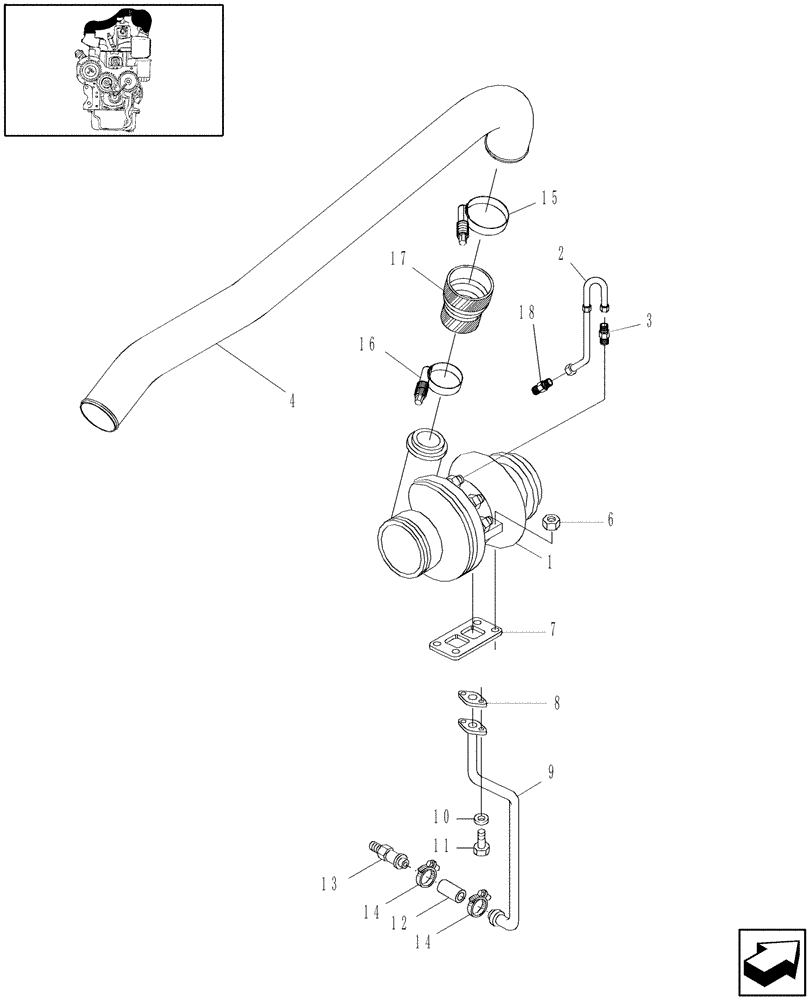

Запчасти Case IH WDX2302 (01.12[01]) - TURBOCHARGER (01) - ENGINE

1

87802482

TURBOCHARGER

1шт.

87802482R

REMAN-TURBOCHARGER

WDX1902 (1/05-8/07), WDX2302 (1/05-)

1шт.

87802482C

CORE-TURBOCHARGER

Return Number

1шт.

2

82028972

HOSE ASSY.

Oil Supply, Includes: Ref. 3

1шт.

3

87802213

ADAPTER

1шт.

4

87031813

TUBE,63.5 - 76.2 mm OD x 754.3, 130 mm L

Turbocharger To Cooler

1шт.

5

87052757

SHIELD

See Fig. 02.02[01.2]

1шт.

Not Shown

1шт.

6

87803212

NUT

3/8"-24

4шт.

7

83911642

GASKET

1шт.

8

E4NN6N652AB

GASKET

Oil Return Tube

1шт.

9

87802522

RIGID TUBE,19 mm OD x 478 mm L

Oil Return

1шт.

10

82879357

LOCK WASHER

Lock, M8

2шт.

11

82880843

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

12

87801937

HOSE

4шт.

13

81876817

FITTING

3/4" Hose, 3/4"-14 NPT

1шт.

14

82012722

HOSE CLAMP,19mm - 28mm, Worm Gear

1шт.

15

86014159

HOSE CLIP

1шт.

16

86014158

HOSE CLIP

1шт.

17

9848337

HOSE,50.8 mm ID, 63.50 mm ID x 101.60 mm

1шт.

18

87802146

ADAPTER

1шт.
