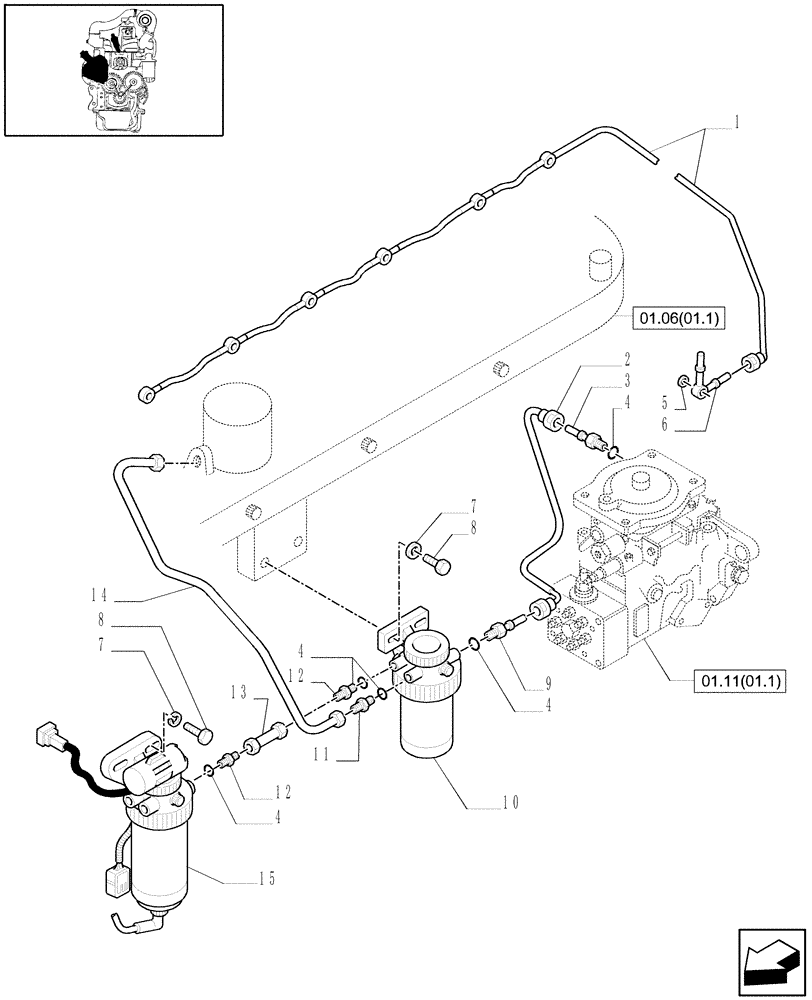

Запчасти Case IH WDX2302 (01.11[01.2]) - FUEL SYSTEM (01) - ENGINE

1

87802623

TUBE

1шт.

2

87802681

TUBE

1шт.

3

82012598

FITTING

1/2-20

1шт.

4

83904845

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

5шт.

5

87801445

COPPER WASHER,12.3mm ID x 17mm OD x 1.75mm Thk

1шт.

6

87802604

ELBOW

1шт.

7

83908991

WASHER,0.41" ID x 0.75" OD x 0.1" Thk

4шт.

8

83935461

HEX SOC SCREW,3/8" - 16 x 1.50"

4шт.

9

87802682

HYD CONNECTOR

M12 x 1.5

1шт.

10

87339387

FILTER ASSY

5 Micron; Refer To Component Breakdown, Fig. 01.11[01.3]

1шт.

11

82894025

FITTING

3/16", 1/2"-20

1шт.

12

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

2шт.

13

87801397

FUEL TUBE,8.05 mm OD x 79 mm L

9/16"-24

1шт.

14

87801627

TUBE,4.75 mm OD x 178.3, 155.7 mm L

3/8"-24, 3/16"

1шт.

15

87374411

FILTER ASSY

30 Micron; Refer To Component Breakdown, Fig. 01.11[01.4]

1шт.
