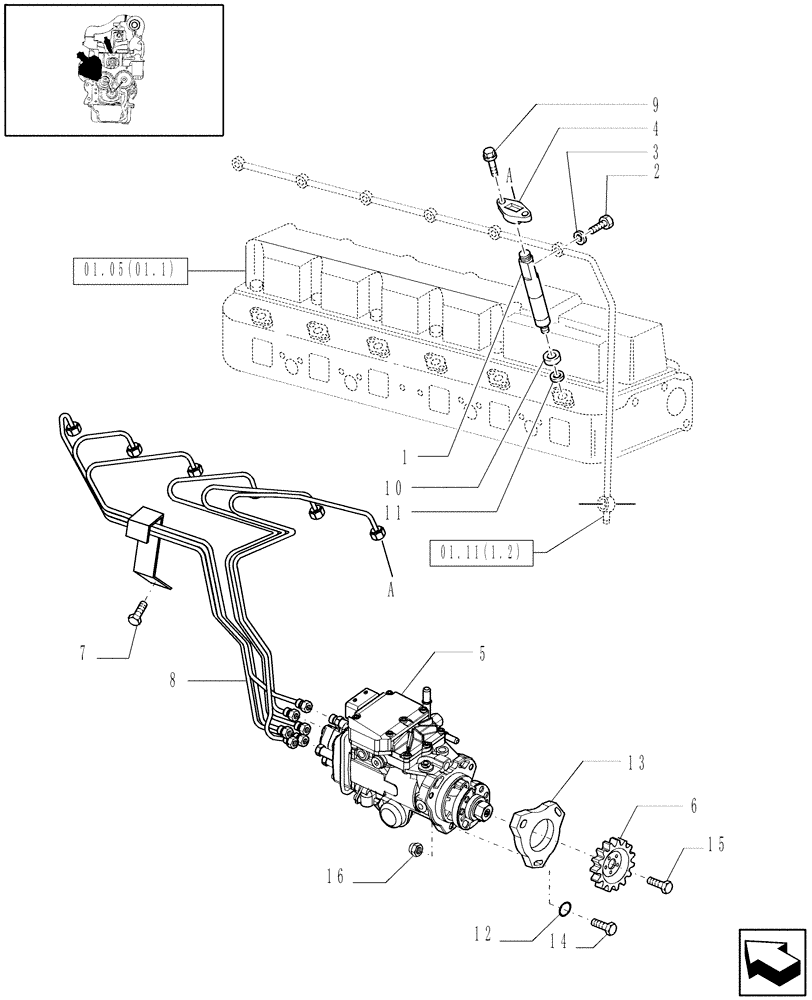

Запчасти Case IH WDX2302 (01.11[01.1]) - FUEL SYSTEM (01) - ENGINE

1

87803276

FUEL SYSTEM INJECTOR

6шт.

1

87802536R

REMAN-INJECT NOZZLE

WDX1902 (1/05-8/07), WDX2302 (1/05), Reman For New P/N's 87803276 & 87802536.

6шт.

1

87802536C

CORE-NOZZLE, INJECT

Return Number

6шт.

2

87800617

BOLT

6шт.

3

87802602

WASHER

6шт.

4

83958141

BRACKET

6шт.

5

87803357

FUEL INJECTION PUMP

1шт.

5

87803357R

REMAN-FUEL INJ PUMP

WDX1902, Use w/ Eng. P/N 87802848 Tier 2, WDX2302, Use w/Eng. P/N 87802847 Tier 2

1шт.

5

87803357C

CORE-FUEL INJ PUMP

Return Number

1шт.

6

87802654

DRIVING GEAR

1шт.

7

83925616

FLANGE BOLT,Hex, 5/16" - 18 x 1/2"

Cap, Flg Hd, G5, 5/16"-18 x 1/2"

1шт.

8

87802539

PIPE SET

1шт.

9

87840522

BOLT,Hex Flg, 5/16" - 18 x 1.38"

5/16"-18 x 1-3/8"

12шт.

10

F2NN9F596AA

SEAL,20.6mm ID x 31.8mm OD x 13.2mm Thk

6шт.

11

81873921

SEALING WASHER,7.4mm ID x 13.75mm OD x 1.6mm Thk

6шт.

12

14437585

O-RING,8.00mm ID x 1.50mm

3шт.

13

87802948

GASKET,0.33mm Thk

Triangular

1шт.

14

87333719

BOLT,Flng, M8 x 35mm, Cl 8.8

M8X35, Hex Flange Hd

3шт.

15

16287234

FLANGE BOLT,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

16

86619801

FLANGE NUT,M8 x 1.25, Cl 8

3шт.
