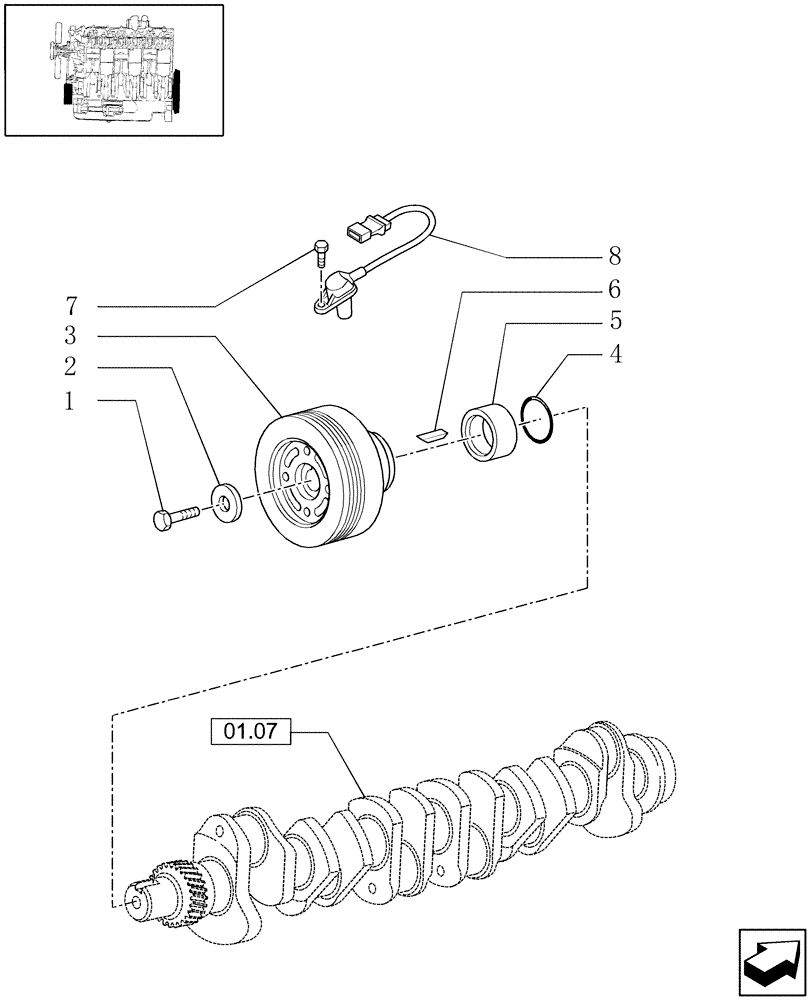

Запчасти Case IH WDX2302 (01.09[01]) - DAMPER & FLYWHEEL (01) - ENGINE

1

82895561

BOLT,Hex, 3/4" - 16 x 1 3/4", Gr 5

Cap, HH, G5, 3/4"-16 x 1-3/4"

1шт.

2

83990589

WASHER,19.68mm ID x 59.689mm OD x 8.13mm Thk

1шт.

3

87802600

DAMPER

1шт.

4

14459081

O-RING,1.737" ID x 0.103" Width

1шт.

5

87800705

SPACER,44.5mm ID x 60.4mm OD x 25.98mm L

1шт.

6

83956433

WOODRUFF KEY

1шт.

7

82002586

BUSHING,20mm ID x 45mm OD x 18mm L

1шт.

8

86638910

FLYWHEEL

1шт.

9

83949153

RING GEAR

1шт.

10

9700357

HEX SOC SCREW,9/16" - 18 x 2", Gr 8

8шт.

11

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

12

E116GC9

DOWEL,7.89mm OD x 20.32mm L

1шт.

13

82030048

SENSOR

1шт.
